COM...T Series Self-Lubricating Radial Spherical Plain Bearings (COM3T COM4T COM5T COM6T COM7T COM8T COM9T COM10T )
Spherical plain bearings are used for applications requiring rotation and oscillation. The rotation takes place on a sliding
surface so the limiting speed is slow.
We can supply high quality and almost all types of spherical plain bearing,
- Radial Spherical Plain Bearings
- Angular Contact Spherical Plain Bearings
- Thrust Spherical Plain Bearings
- Non-standard Spherical Plain Bearings

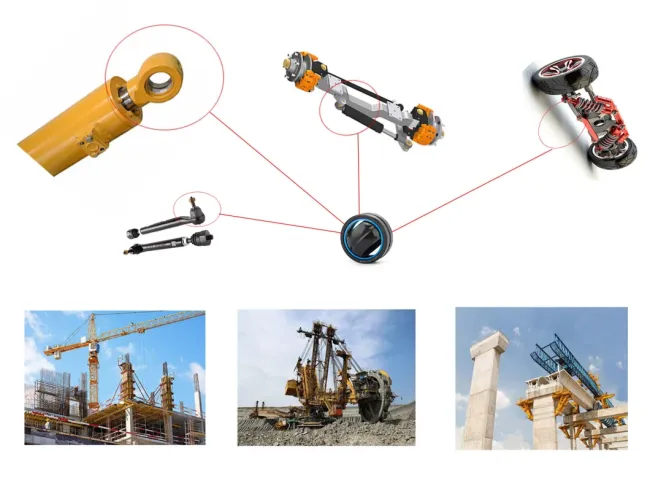

Applications:
Railway engineering
Railway station construction
Bridge building
Construction machinery
Hydraulic steel structures
Roof designs
Power generation
Oil field exploration
Mining and aggregate processing
Wind turbines
Gear drives
Rolling mills
Technical specification
ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.
| ANSI Standard* | DIN 620* | ISO 492* |
| ABEC 1 | P0 | Class Normal |
| ABEC 3 | P6 | Class 6 |
| ABEC 5 | P5 | Class 5 |
| ABEC 7 | P4 | Class 4 |
| ABEC 9 | P2 | Class 2 |
1) Sliding contact surfaces: Steel vs. PTFE Fabric.
2) Materials: Outer race is made of carbon steel, inner race is made of high chrome bearing steel.
3) Heat treatment: Without heat treatment on outer race. Inner race is quenched (hardened), and surface plated with chrome.
4) Features of structure: Without oil groove or oil hole. Outer race formed by extrusion. With a PTFE fabric between outer race and inner race.
5) Properties: Self-lubricated, low friction good wearability, self-alignment.
| Bearing No. | Dimensions (mm) | Load ratings (KN) | Mass | ||||||||
| d | D | B | C | dk | r1 min |
r2 min |
α | C | Co | kg | |
| COM 3 T | 4.83 | 14.29 | 7.14 | 5.54 | 10.31 | 0.3 | 0.38 | 11.0 | 5.10 | 12.80 | 0.006 |
| COM 4 T | 6.35 | 16.67 | 8.71 | 6.35 | 12.70 | 0.3 | 0.56 | 13.5 | 7.20 | 18.40 | 0.010 |
| COM 5 T | 7.94 | 19.05 | 9.53 | 7.14 | 14.27 | 0.3 | 0.81 | 12.0 | 9.10 | 22.90 | 0.014 |
| COM 6 T | 9.53 | 20.64 | 10.31 | 7.92 | 16.66 | 0.3 | 0.81 | 10.0 | 11.80 | 29.60 | 0.017 |
| COM 7 T | 11.11 | 23.02 | 11.10 | 8.71 | 17.45 | 0.3 | 0.81 | 8.0 | 13.60 | 34.10 | 0.021 |
| COM 8 T | 12.70 | 25.40 | 12.70 | 9.91 | 20.65 | 0.3 | 0.81 | 9.5 | 18.40 | 46.00 | 0.029 |
| COM 9 T | 14.29 | 27.78 | 14.27 | 11.10 | 23.01 | 0.3 | 0.81 | 9.5 | 23.00 | 57.40 | 0.039 |
| COM 10 T | 15.88 | 30.16 | 15.88 | 12.70 | 25.40 | 0.3 | 0.81 | 9.5 | 29.00 | 72.50 | 0.050 |
| COM 12 T | 19.05 | 36.51 | 19.05 | 15.06 | 30.15 | 0.3 | 1.12 | 9.0 | 40.80 | 102.10 | 0.093 |
| COM 14 T | 22.23 | 39.69 | 22.23 | 17.86 | 33.32 | 0.6 | 1.12 | 9.5 | 53.50 | 133.80 | 0.119 |
| COM 16 T | 25.40 | 44.45 | 25.40 | 20.24 | 38.10 | 0.6 | 1.12 | 10.0 | 69.40 | 173.50 | 0.175 |
1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.
Please contact us immediately if you have any questions.
