GEBJ Series Radial Spherical Plain Bearings (GEBJ5S GEBJ6S GEBJ8S GEBJ10S GEBJ12S GEBJ14S GEBJ16S GEBJ18S GEBJ20S )
Spherical plain bearings are used for applications requiring rotation and oscillation. The rotation takes place on a sliding
surface so the limiting speed is slow.
We can supply high quality and almost all types of spherical plain bearing,
- Radial Spherical Plain Bearings
- Angular Contact Spherical Plain Bearings
- Thrust Spherical Plain Bearings
- Non-standard Spherical Plain Bearings

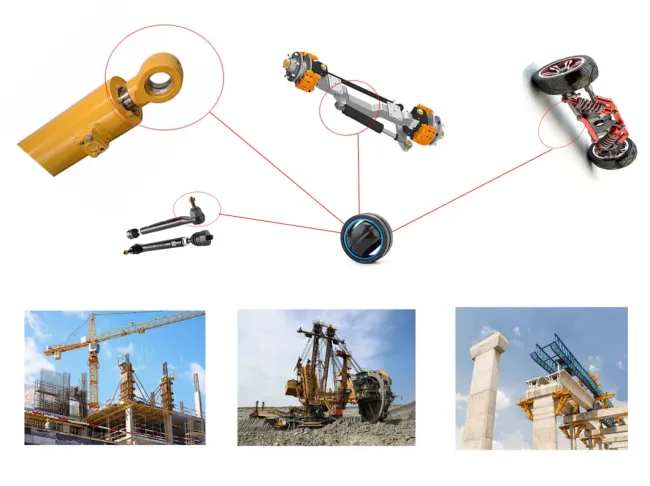

Applications:
Railway engineering
Railway station construction
Bridge building
Construction machinery
Hydraulic steel structures
Roof designs
Power generation
Oil field exploration
Mining and aggregate processing
Wind turbines
Gear drives
Rolling mills
Technical specification
ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.
| ANSI Standard* | DIN 620* | ISO 492* |
| ABEC 1 | P0 | Class Normal |
| ABEC 3 | P6 | Class 6 |
| ABEC 5 | P5 | Class 5 |
| ABEC 7 | P4 | Class 4 |
| ABEC 9 | P2 | Class 2 |
1) Sliding contact surfaces: Steel vs. Steel.
2) Materials: Outer race is made of carbon steel, inner race is made of high chrome bearing steel.
3) Heat treatment: Without heat treatment on outer race. Inner race is quenched (hardened), and surface plated with chrome.
4) Features of structure: With oil grooves and oil holes. Outer race formed by extrusion.
5) Properties: Good wearability, self-alignment.
| Bearing No. | Dimensions (mm) | Load Ratings (KN) | Mass | ||||||||
| d | D | B | C | dk | r1 | r2 | α | C | Co | kg | |
| GEBJ 5 S | 5 | 13 | 8 | 6.00 | 11.112 | 0.3 | 0.3 | 13 | 3.2 | 9 | 0.006 |
| GEBJ 6 S | 6 | 16 | 9 | 6.75 | 12.700 | 0.3 | 0.3 | 13 | 4.1 | 12 | 0.010 |
| GEBJ 8 S | 8 | 19 | 12 | 9.00 | 15.880 | 0.3 | 0.3 | 13 | 6.5 | 20 | 0.018 |
| GEBJ 10 S | 10 | 22 | 14 | 10.50 | 19.050 | 0.3 | 0.6 | 13 | 9.6 | 28 | 0.027 |
| GEBJ 12 S | 12 | 26 | 16 | 12.00 | 22.230 | 0.3 | 0.6 | 13 | 12.0 | 37 | 0.043 |
| GEBJ 14 S | 14 | 28 | 19 | 13.50 | 25.400 | 0.3 | 0.6 | 15 | 16.0 | 49 | 0.055 |
| GEBJ 16 S | 16 | 32 | 21 | 15.00 | 28.580 | 0.3 | 0.6 | 15 | 20.0 | 61 | 0.081 |
| GEBJ 18 S | 18 | 35 | 23 | 16.50 | 31.750 | 0.6 | 0.6 | 15 | 25.0 | 74 | 0.103 |
| GEBJ 20 S | 20 | 40 | 25 | 18.00 | 34.930 | 0.6 | 0.6 | 15 | 30.0 | 89 | 0.149 |
| GEBJ 22 S | 22 | 42 | 28 | 20.00 | 38.100 | 0.6 | 0.6 | 15 | 36.0 | 108 | 0.176 |
| GEBJ 25 S | 25 | 47 | 31 | 22.00 | 42.860 | 0.6 | 0.6 | 15 | 45.0 | 130 | 0.242 |
| GEBJ 30 S | 30 | 55 | 37 | 25.00 | 50.800 | 0.6 | 0.6 | 15 | 61.0 | 178 | 0.378 |
1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.
Please contact us immediately if you have any questions.
