Inch Size GEZ...FO Series Radial Spherical Plain Bearings (GEZ31FO GEZ38FO GEZ44FO GEZ50FO GEZ 57FO GEZ63FO GEZ69FO)
Spherical plain bearings are used for applications requiring rotation and oscillation. The rotation takes place on a sliding
surface so the limiting speed is slow.
We can supply high quality and almost all types of spherical plain bearing,
- Radial Spherical Plain Bearings
- Angular Contact Spherical Plain Bearings
- Thrust Spherical Plain Bearings
- Non-standard Spherical Plain Bearings

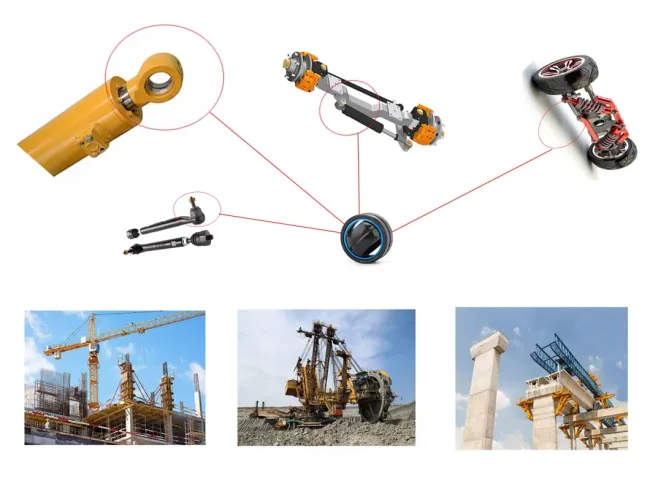

Applications:
Railway engineering
Railway station construction
Bridge building
Construction machinery
Hydraulic steel structures
Roof designs
Power generation
Oil field exploration
Mining and aggregate processing
Wind turbines
Gear drives
Rolling mills
Technical specification
GEZ…FO:As series GE…FO,but with inch dimensions.
Here is the comparison between each standard organization:
ABEC-1, ABEC-3, ABEC-5, ABEC-7, ABEC-9, the larger the number, the higher the precision grade.
| ANSI Standard* | DIN 620* | ISO 492* |
| ABEC 1 | P0 | Class Normal |
| ABEC 3 | P6 | Class 6 |
| ABEC 5 | P5 | Class 5 |
| ABEC 7 | P4 | Class 4 |
| ABEC 9 | P2 | Class 2 |
1) Sliding contact surfaces: Steel vs. Steel.
2) Materials: Both outer race and inner race are made of high chrome bearing steel.
3) Heat treatment: Both outer race and inner race are quenched (hardened), surface phosphorized.
4) Features of structure: With oil groove and oil holes, with an axial split in outer race.
5) Lubricant: molybdenum disulfide.
6) Properties: Heavy duty, good wearability, corrosion resistance, self-alignment.
| Bearing No. | Dimensions (mm) | Load Ratings (KN) | Mass | ||||||||
| d | D | B | C | dk | r1 min |
r2 min |
α | C | Co | kg | |
| GEZ 31 FO | 31.750 | 61.913 | 35.306 | 28.575 | 54.7 | 0.6 | 1 | 15 | 125 | 375 | 0.454 |
| GEZ 38 FO | 38.100 | 71.438 | 40.132 | 33.325 | 63.9 | 0.6 | 1 | 14 | 170 | 510 | 0.726 |
| GEZ 44 FO | 44.450 | 80.963 | 46.228 | 38.100 | 73.0 | 0.6 | 1 | 14 | 224 | 670 | 1.140 |
| GEZ 50 FO | 50.800 | 90.488 | 52.578 | 42.850 | 82.0 | 0.6 | 1 | 14 | 280 | 850 | 1.680 |
| GEZ 57 FO | 57.150 | 100.013 | 58.877 | 47.625 | 92.0 | 0.6 | 1 | 14 | 355 | 1060 | 2.010 |
| GEZ 63 FO | 63.500 | 111.125 | 64.643 | 52.375 | 100.0 | 1.0 | 1 | 14 | 415 | 1250 | 2.950 |
| GEZ 69 FO | 69.850 | 120.650 | 70.866 | 57.150 | 109.5 | 1.0 | 1 | 14 | 500 | 1500 | 3.630 |
| GEZ 76 FO | 76.200 | 130.175 | 76.759 | 61.900 | 119.0 | 1.0 | 1 | 14 | 585 | 1760 | 4.360 |
| GEZ 82 FO | 82.550 | 139.700 | 82.931 | 66.675 | 128.0 | 1.0 | 1 | 14 | 680 | 2040 | 5.310 |
| GEZ 88 FO | 88.900 | 149.225 | 90.424 | 71.425 | 137.0 | 1.0 | 1 | 14 | 780 | 2360 | 6.810 |
| GEZ 95 FO | 95.250 | 158.750 | 94.945 | 76.200 | 146.0 | 1.0 | 1 | 14 | 900 | 2650 | 8.850 |
| GEZ 101 FO | 101.600 | 177.800 | 107.315 | 85.725 | 164.5 | 1.0 | 1 | 10 | 1120 | 3400 | 10.200 |
| GEZ 114 FO | 114.300 | 196.850 | 119.126 | 95.250 | 183.0 | 1.0 | 1 | 10 | 1400 | 4150 | 13.600 |
| GEZ 139 FO | 139.700 | 222.250 | 125.730 | 104.775 | 207.0 | 1.0 | 1 | 9 | 1730 | 5200 | 20.400 |
