Angle Joints Housings Circlips DIN71805 M6

DIN 71802 threaded ball joint linkages consist of a DIN 71805 ball socket and a DIN 71803 ball stud.A/B/C type without safety clip on the ball housing

There are Angle Joints DIN71802,Stainless Steel Angle Joint DIN71802,Hexagonal Ball Joints DIN71802,Angle Joints-Long version,Axial Joints similar to DIN71802,Ball Socket DIN71805,Ball Stud DIN71803,Special Ball Socket with slit and customized types.

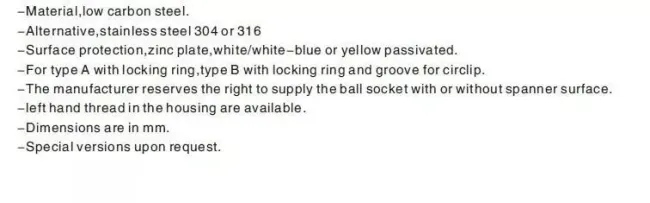

Material, low carbon steel.
Alternative, stainless steel 304 or 316
Surface protection, zinc plate, withe/white-blue or yellow passivated.
The manufacturer reserves the right to supply the ball socket with or without spanner surface.
left hand thread in the housing are available.
Special versions upon request.
Dimensions are in mm.

d1	d2	a	d3	d4	e	l1	l2	Weight
								Kg/1000pcs for type
		±0.3	±0.5	±0.5	min.	max.	±0.4	A	B
8	M5	22	8	12.8	10.2	15	6.3	9	8.8
10	M6	25	10	14.8	11.5	17	7	14.2	14.1
13	M8	30	13	19.3	14	20	9.1	29	28.8
16	M10	35	16	24	15.5	22	11.4	57	56.8
	M12
19	M14	45	22	30	21.5	28	12.5	125	124.8
