SQ Series Ball Joint Rod Ends Bearings (SQ5D SQ6D SQ8D SQ10D SQ10BD SQ12D SQ12BD SQ14D SQ14BD SQ16D SQ16BD SQ18D )
Ball joints with metric and inch threads are commonly used on control linkages in automotive, marine, and construction and industrial equipment applications.
There are DIN,SAE and ISO standard ball joints, you can consult us in regarding these dimensional and technical data.
Technical specification
Housing,High strength zinc alloy;
Ball,bearing steel GCr15,equivalent to steel SAE 52100 ;
Shank,alloy steel 40Cr;
Dust Cover,NBR rubber
Left hand thread,please add suffix'L',e.g. SQL10D

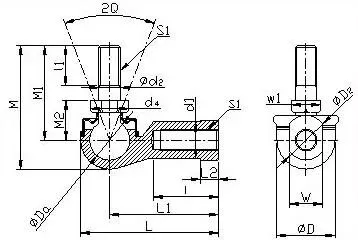

| Bearing No. | L | D | M | Thread S1 | L1 | l | L 2 | d1 | D2 | W | d2 | M1 | M2 | l1 | d4 | Da | Static load capacity KN |
Yield strength KN |
| SQ5D | 35 | 16 | 29.0 | M5X0.8 | 27 | 14 | 4.0 | 9 | 11 | 9 | 5 | 21 | 10 | 8 | 9 | 11.112 | 9.22 | 2.25 |
| SQ6D | 40 | 19 | 35.5 | M6X1 | 30 | 14 | 5.0 | 10 | 13 | 11 | 6 | 26 | 11 | 11 | 10 | 12.700 | 12.10 | 3.53 |
| SQ8D | 48 | 23 | 42.5 | M8X1.25 | 36 | 17 | 5.0 | 12.5 | 16 | 14 | 8 | 31 | 14 | 12 | 12 | 15.875 | 19.10 | 6.57 |
| SQ10D | 57 | 27 | 50.5 | M10X1.25 | 43 | 21 | 6.5 | 15 | 19 | 17 | 10 | 37 | 17 | 15 | 14 | 19.050 | 27.50 | 10.70 |
| SQ10BD | 57 | 27 | 56.5 | M10X1.5 | 43 | 21 | 6.5 | 15 | 19 | 17 | 10 | 43 | 17 | 21 | 14 | 19.050 | 27.50 | 10.70 |
| SQ12D | 66 | 31 | 57.5 | M12X1.25 | 50 | 25 | 6.5 | 17.5 | 22 | 19 | 12 | 42 | 19 | 17 | 19 | 22.225 | 37.50 | 16.40 |
| SQ12BD | 66 | 31 | 64.5 | M12X1.75 | 50 | 25 | 6.5 | 17.5 | 22 | 19 | 12 | 49 | 19 | 24 | 19 | 22.225 | 37.50 | 16.40 |
| SQ14D | 75 | 35 | 73.5 | M14X1.5 | 57 | 26 | 8.0 | 20 | 25 | 22 | 14 | 56 | 21.5 | 22 | 19 | 25.400 | 48.90 | 19.80 |
| SQ14BD | 75 | 35 | 79.5 | M14X2 | 57 | 26 | 8.0 | 20 | 25 | 22 | 14 | 62 | 21.5 | 28 | 19 | 25.400 | 48.90 | 19.80 |
| SQ16D | 84 | 39 | 79.5 | M16X1.5 | 64 | 32 | 8.0 | 22 | 27 | 22 | 16 | 60 | 23.5 | 23 | 22 | 25.400 | 48.90 | 26.90 |
| SQ16BD | 84 | 39 | 85.5 | M16X2 | 64 | 32 | 8.0 | 22 | 27 | 22 | 16 | 66 | 23.5 | 29 | 22 | 25.400 | 48.90 | 26.90 |
| SQ18D | 93 | 44 | 90.0 | M18X1.5 | 71 | 34 | 10.0 | 25 | 31 | 27 | 18 | 68 | 26.5 | 25 | 23 | 28.575 | 61.90 | 33.30 |
| SQ20D | 99 | 44 | 90.0 | M20X1.5 | 77 | 35 | 10.0 | 27.5 | 34 | 30 | 20 | 68 | 27 | 25 | 29 | 28.575 | 61.90 | 45.90 |
| SQ22D | 109 | 50 | 95.0 | M22X1.5 | 84 | 41 | 12.0 | 30 | 37 | 32 | 22 | 70 | 28 | 26 | 27 | 31.750 | 75.40 | 48.00 |
