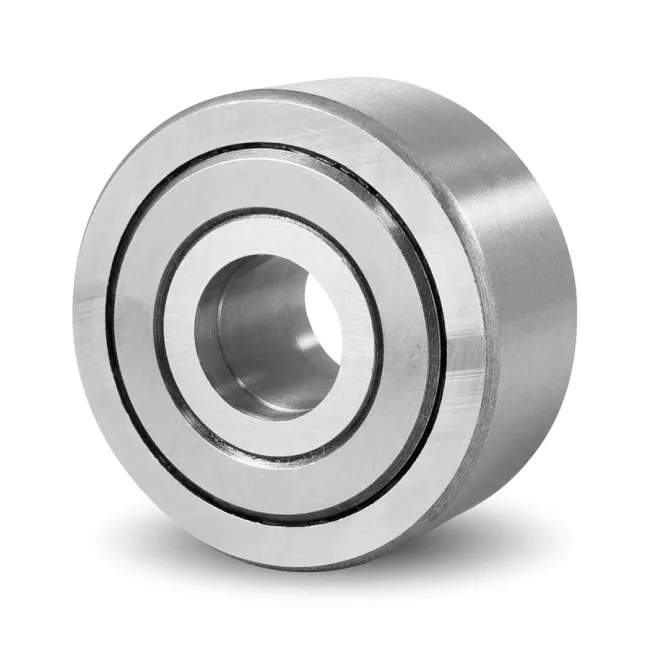

NATR5 NATR6 NATR8 Yoke Type Track Roller Bearings
Track Roller Bearings are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc.
Track Roller Bearings are either of heavy-duty cylindrical roller, needle bearing or ball bearing construction. Support Rollers are based on cylindrical or needle rollers.
Applications Of Track Roller Bearings
- Metals
- Mining, mineral processing and cement
- Railways
- Material handling
- Agriculture
- Construction
Versions Of Track Roller Bearings
Support Rollers Without Flange Rings, Without An Inner Ring
- RSTO Series
- RNA Series
Support Rollers Without Flange Rings, With An Inner Ring
- STO Series
- NA Series
Support Rollers With Flange Rings, With An Inner Ring
- NATR Series
- NATV Series
- PWTR Series
- NUTR Series
- NAST Series
- CYR Series
Cam Followers
- KR,KRE,KRV,KRVE Series
- NUKR,NUKRE Series
- PWKR,PWKRE Series
- CF,CFE,CFH Series
Technical specification
NATR series Yoke type track rollers can support high radial loads and axial loads arising from misalignments and skewed running and suitable for cam drives, slideways, conveying equipment, etc.
The bearings are available in open and sealed versions (suffix PP).
Metric series, with caged needle rollers, available with cylindrical OD (suffix X).
| Bearing No. | Dimensions (mm) | Basic Load Rating (KN) | Limited Speed | Mass | |||||||
| Shield Type | Sealed Type | d | D | C | B | d1 | r min | C | Co | rpm | kg |
| NATR 5 | NATR 5 PP | 5 | 16 | 11 | 12 | 12 | 0.2 | 2.52 | 2.64 | 11200 | 0.014 |
| NATR 6 | NATR 6 PP | 6 | 19 | 11 | 12 | 14 | 0.2 | 2.80 | 3.12 | 8800 | 0.020 |
| NATR 8 | NATR 8 PP | 8 | 24 | 14 | 15 | 19 | 0.3 | 4.40 | 5.12 | 6000 | 0.041 |
| NATR 10 | NATR 10 PP | 10 | 30 | 14 | 15 | 23 | 0.6 | 5.44 | 6.72 | 4400 | 0.064 |
| NATR 12 | NATR 12 PP | 12 | 32 | 14 | 15 | 25 | 0.6 | 5.52 | 7.04 | 3600 | 0.071 |
| NATR 15 | NATR 15 PP | 15 | 35 | 18 | 19 | 27 | 0.6 | 7.76 | 11.28 | 280 | 0.103 |
| NATR 17 | NATR 17 PP | 17 | 40 | 20 | 21 | 32 | 1.0 | 8.72 | 12.40 | 2320 | 0.144 |
| NATR 20 | NATR 20 PP | 20 | 47 | 24 | 25 | 37 | 1.0 | 12.40 | 20.40 | 1920 | 0.246 |
| NATR 25 | NATR 25 PP | 25 | 52 | 24 | 25 | 42 | 1.0 | 12.32 | 21.20 | 1440 | 0.275 |
| NATR 30 | NATR 30 PP | 30 | 62 | 28 | 29 | 51 | 1.0 | 18.88 | 30.80 | 1040 | 0.470 |
| NATR 35 PP | 35 | 72 | 28 | 29 | 58 | 1.1 | 20.40 | 35.60 | 800 | 0.635 | |
| NATR 40 PP | 40 | 80 | 30 | 32 | 66 | 1.1 | 26.40 | 47.20 | 680 | 0.805 | |
| NATR 50 PP | 50 | 90 | 30 | 32 | 76 | 1.1 | 25.60 | 47.20 | 520 | 0.960 | |
