CFE-1/2-B Stud Type Cam Follower Bearings

Track Roller Bearings are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc.

Track Roller Bearings are either of heavy-duty cylindrical roller, needle bearing or ball bearing construction. Support Rollers are based on cylindrical or needle rollers.

• Metals
• Mining, mineral processing and cement
• Railways
• Material handling
• Agriculture
• Construction

Versions Of Track Roller Bearings

Support Rollers Without Flange Rings, Without An Inner Ring

• RSTO Series
• RNA Series

Support Rollers Without Flange Rings, With An Inner Ring

• STO Series
• NA Series

Support Rollers With Flange Rings, With An Inner Ring

• NATR Series
• NATV Series
• PWTR Series
• NUTR Series
• NAST Series
• CYR Series

Cam Followers

• KR,KRE,KRV,KRVE Series
• NUKR,NUKRE Series
• PWKR,PWKRE Series
• CF,CFE,CFH Series

Product Parameters

Technical specification

Application of cam followers:

Escalator, Moving sidewalk, Elevator, Conveyor system, Lifting machinery, Automotive line machinery, Material handling equipments, Linear motion guidance equipments, Cam drives, Screw drives.

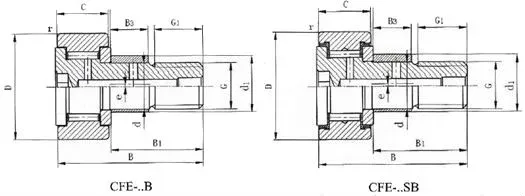

Inch Size CF-...B,CFE-...B,CFH-...B
With seals, add suffix "S"
Hex hole, add suffix "B"
Eccentric collar, add suffix "E"



Bearing No.		Dimensions (mm)						Solid Eccentric			Basic Load Rating(KN)		Limited Speed	Mass
Without Seals	Sealed Type	D	C	B	B1	G	G1	d1	B3	e	C	Co	rpm	kg
CFE-1/2-B	CFE-1/2-SB	12.70	9.53	26.19	15.88	10-32	6.35	6.35	9.53	0.25	3.84	4.40	12000	0.011
CFE-9/16-B	CFE-9/16-SB	14.29	9.53	26.19	15.88	10-32	6.35	6.35	9.53	0.25	4.30	5.30	10000	0.016
CFE-5/8-B	CFE-5/8-SB	15.88	11.11	30.96	19.05	1/4-28	7.94	9.53	11.11	0.38	5.20	7.00	8800	0.025
CFE-11/16-B	CFE-11/16-SB	17.46	11.11	30.96	19.05	1/4-28	7.94	9.53	11.11	0.38	6.50	8.50	8000	0.033
CFE-3/4-B	CFE-3/4-SB	19.05	12.70	35.72	22.23	3/8-24	9.53	12.70	12.70	0.38	7.12	10.00	6400	0.042
CFE-7/8-B	CFE-7/8-SB	22.23	12.70	35.72	22.23	3/8-24	9.53	12.70	12.70	0.38	7.12	10.00	6400	0.054
CFE-1-B	CFE-1-SB	25.40	15.88	42.07	25.40	7/16-20	12.70	15.88	12.70	0.76	10.64	18.50	5200	0.086
CFE-1 1/8-B	CFE-1 1/8-SB	28.58	15.88	42.07	25.40	7/16-20	12.70	15.88	12.70	0.76	10.64	18.50	5200	0.097
CFE-1 1/4-B	CFE-1 1/4-SB	31.75	19.05	51.59	31.75	1/2-20	15.88	17.46	15.88	0.76	19.20	25.90	4400	0.154
CFE-1 3/8-B	CFE-1 3/8-SB	34.93	19.05	51.59	31.75	1/2-20	15.88	17.46	15.88	0.76	19.20	25.90	4400	0.177
CFE-1 1/2-B	CFE-1 1/2-SB	38.10	22.23	61.12	38.10	5/8-18	19.05	22.23	19.05	0.76	23.00	32.70	3600	0.263
CFE-1 5/8-B	CFE-1 5/8-SB	41.28	22.23	61.12	38.10	5/8-18	19.05	22.23	19.05	0.76	23.00	32.70	3600	0.298
CFE-1 3/4-B	CFE-1 3/4-SB	44.45	25.40	70.64	44.45	3/4-16	22.23	25.40	22.23	0.76	28.70	45.40	3200	0.418
CFE-1 7/8-B	CFE-1 7/8-SB	47.63	25.40	70.64	44.45	3/4-16	22.23	25.40	22.23	0.76	28.70	45.40	3200	0.466
CFE-2-B	CFE-2-SB	50.80	31.75	83.34	50.80	7/8-14	25.40	30.16	25.40	0.76	37.30	65.80	2800	0.705
CFE-2 1/4-B	CFE-2 1/4-SB	57.15	31.75	83.34	50.80	7/8-14	25.40	30.16	25.40	0.76	37.30	65.80	2800	0.839
CFE-2 1/2-B	CFE-2 1/2-SB	63.50	38.10	96.04	57.15	1-14	28.58	34.93	28.58	0.76	54.00	102.30		1.227
CFE-2 3/4-B	CFE-2 3/4-SB	69.85	38.10	96.04	57.15	1-14	28.58	34.93	28.58	0.76	54.00	102.30		1.417
CFE-3-B	CFE-3-SB	76.20	44.45	108.70	63.50	1 1/4-12	31.75	44.45	31.75	1.52	72.30	155.00		2.095
CFE-3 1/4-B	CFE-3 1/4-SB	82.55	44.45	108.70	63.50	1 1/4-12	31.75	44.45	31.75	1.52	72.30	155.00		2.360
CFE-3 1/2-B	CFE-3 1/2-SB	88.90	50.80	121.40	69.85	1 3/8-12	34.93	46.04	34.93	1.52	104.80	196.70		3.072
CFE-4-B	CFE-4-SB	101.60	57.15	146.80	88.90	1 1/2-12	38.10	50.80	50.80	1.52	138.00	278.00		4.607
