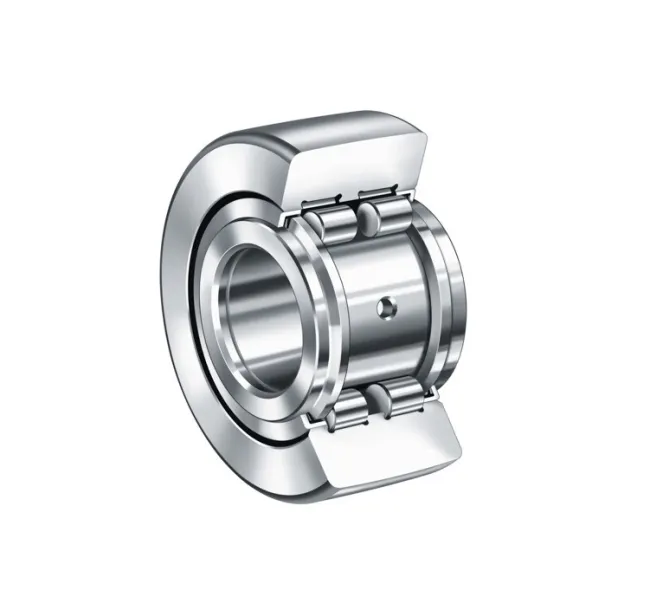

Yoke Type Track Roller Bearings PWTR3072.2RS PWTR40.2RS
Track Roller Bearings are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc.
Track Roller Bearings are either of heavy-duty cylindrical roller, needle bearing or ball bearing construction. Support Rollers are based on cylindrical or needle rollers.
Applications Of Track Roller Bearings
- Metals
- Mining, mineral processing and cement
- Railways
- Material handling
- Agriculture
- Construction
Versions Of Track Roller Bearings
Support Rollers Without Flange Rings, Without An Inner Ring
- RSTO Series
- RNA Series
Support Rollers Without Flange Rings, With An Inner Ring
- STO Series
- NA Series
Support Rollers With Flange Rings, With An Inner Ring
- NATR Series
- NATV Series
- PWTR Series
- NUTR Series
- NAST Series
- CYR Series
Cam Followers
- KR,KRE,KRV,KRVE Series
- NUKR,NUKRE Series
- PWKR,PWKRE Series
- CF,CFE,CFH Series
Technical specification
PWTR series Yoke type track rollers can support high radial loads and axial loads arising from misalignments and skewed running and suitable for cam drives, slideways, conveying equipment, etc. Metric series, with two row full complement cylindrical rollers design, with lip seals at both sides.
| Bearing No. | Dimensions (mm) | Basic Load Rating (KN) | Limited Speed |
Mass | ||||||||
| Shield Type | Sealed Type | d | D | B | C | d1 | r min | r1 min | C | Co | rpm | kg |
| PWTR 15 | PWTR 15.2RS | 15 | 35 | 19 | 18 | 20 | 0.6 | 0.3 | 9.28 | 9.04 | 4800 | 0.099 |
| PWTR 17 | PWTR 17.2RS | 17 | 40 | 21 | 20 | 22 | 1.0 | 0.5 | 10.56 | 11.04 | 4000 | 0.147 |
| PWTR 1542 | PWTR 1542.2RS | 15 | 42 | 19 | 18 | 20 | 0.6 | 0.3 | 10.80 | 11.28 | 4800 | 0.158 |
| PWTR 20 | PWTR 20.2RS | 20 | 47 | 25 | 24 | 27 | 1.0 | 0.5 | 18.56 | 20.40 | 3040 | 0.245 |
| PWTR 1747 | PWTR 1747.2RS | 17 | 47 | 21 | 20 | 22 | 1.0 | 0.5 | 11.84 | 13.12 | 4000 | 0.220 |
| PWTR 25 | PWTR 25.2RS | 25 | 52 | 25 | 24 | 31 | 1.0 | 0.5 | 19.36 | 22.40 | 3040 | 0.281 |
| PWTR 2052 | PWTR 2052.2RS | 20 | 52 | 25 | 24 | 27 | 1.0 | 0.5 | 20.40 | 23.60 | 3040 | 0.321 |
| PWTR 30 | PWTR 30.2RS | 30 | 62 | 29 | 28 | 38 | 1.0 | 0.5 | 28.00 | 31.60 | 1760 | 0.465 |
| PWTR 2562 | PWTR 2562.2RS | 25 | 62 | 25 | 24 | 31 | 1.0 | 0.5 | 23.20 | 28.80 | 3040 | 0.450 |
| PWTR 35 | PWTR 35.2RS | 35 | 72 | 29 | 28 | 44 | 1.1 | 0.6 | 30.80 | 37.20 | 1440 | 0.630 |
| PWTR 3072 | PWTR 3072.2RS | 30 | 72 | 29 | 28 | 38 | 1.0 | 0.5 | 32.80 | 39.20 | 1760 | 0.697 |
| PWTR 40 | PWTR 40.2RS | 40 | 80 | 32 | 30 | 51 | 1.1 | 0.6 | 35.60 | 42.40 | 1200 | 0.816 |
| PWTR 3580 | PWTR 3580.2RS | 35 | 80 | 29 | 28 | 44 | 1.1 | 0.6 | 34.80 | 44.00 | 1440 | 0.836 |
| PWTR 45 | PWTR 45.2RS | 45 | 85 | 32 | 30 | 55 | 1.1 | 0.6 | 36.00 | 44.00 | 1040 | 0.883 |
| PWTR 50 | PWTR 50.2RS | 50 | 90 | 32 | 30 | 60 | 1.1 | 0.6 | 36.40 | 45.60 | 880 | 0.950 |
| PWTR 4090 | PWTR 4090.2RS | 40 | 90 | 32 | 30 | 51 | 1.1 | 0.6 | 41.60 | 52.80 | 1200 | 1.129 |
| PWTR 45100 | PWTR 45100.2RS | 45 | 100 | 32 | 30 | 55 | 1.1 | 0.6 | 44.80 | 59.20 | 1040 | 1.396 |
| PWTR 50110 | PWTR 50110.2RS | 50 | 110 | 32 | 30 | 60 | 1.1 | 0.6 | 47.20 | 65.60 | 880 | 1.690 |
1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.
Please contact us immediately if you have any questions.
