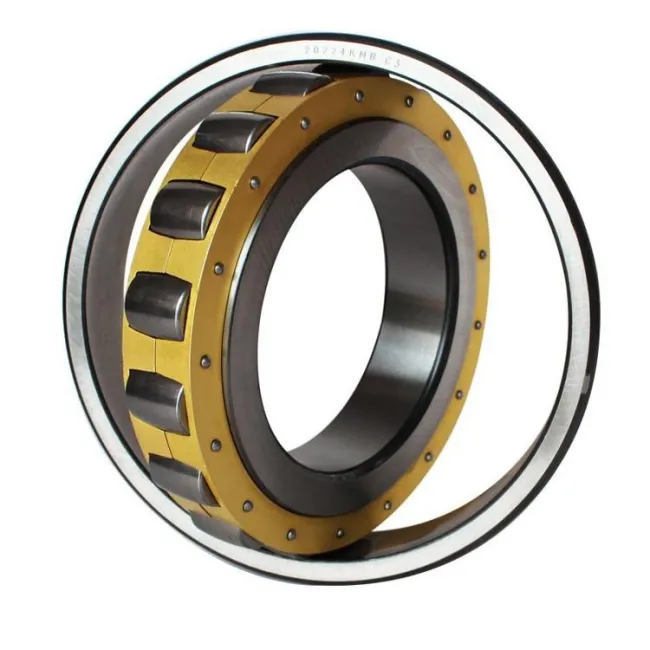

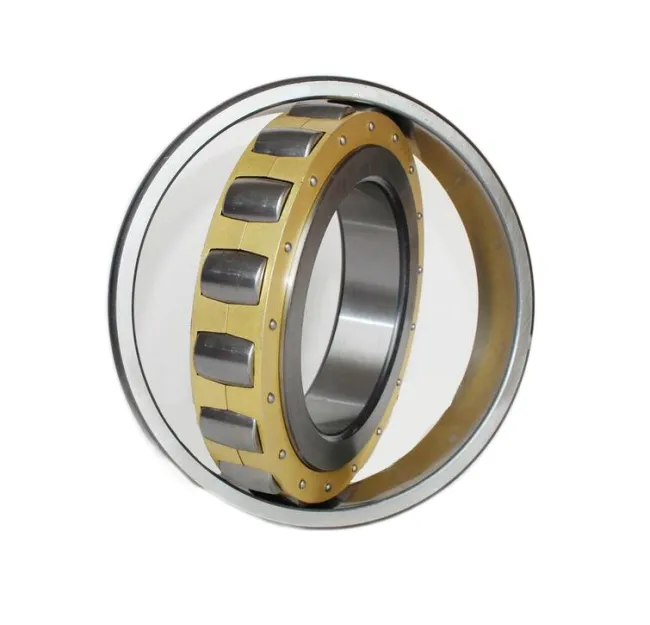

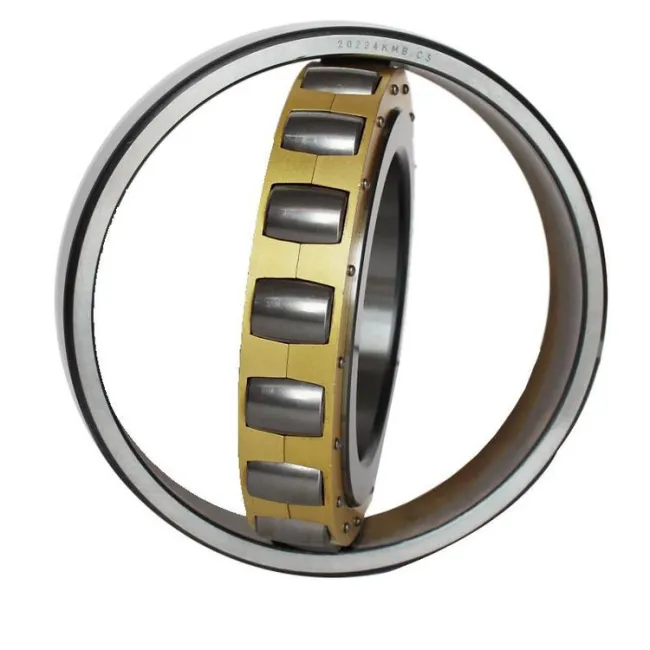

Single Row Spherical Roller Bearing Cylindrical Bore SRV.20313 MB
Single row spherical roller bearings are self-retaining radial roller bearings. They also belong to self-aligning bearings. Benefit from the concave raceway on the outer ring, they are able to compensate the static and dynamic angular misalignment under certain limits.

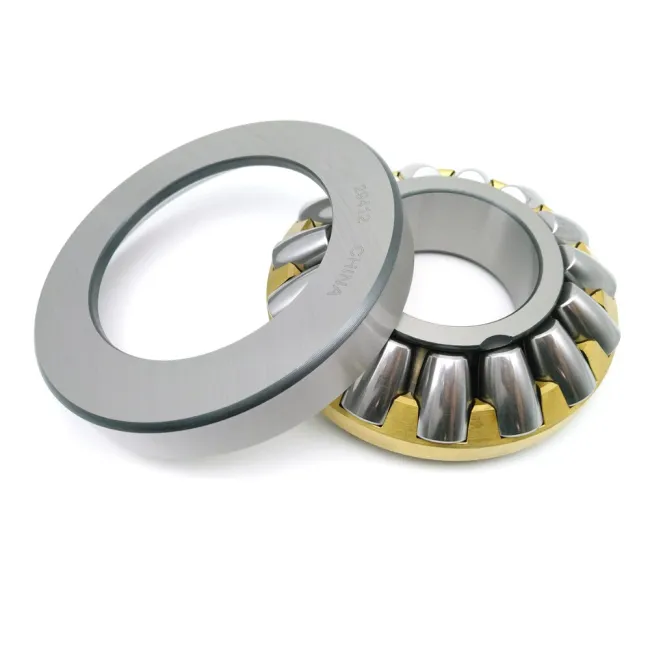

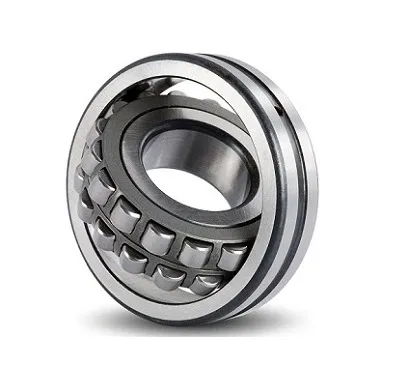

We offer single row spherical roller bearings, double row spherical roller bearings,spherical roller thrust bearings.
Applications
- Cement Industry
- Crusher Industry
- Heavy Equipment Machinery
- Mining Industry
- Fluid Machinery
- Textile Industry
Technical specification
Single row spherical roller bearings cannot transmit large axial loads and cannot be separated under normal circumstances.The angular deviation of the inner ring can be compensated up to 4° during rotating.
Inner ring is equipped with two fixed ribs and a formed raceway. The rollers are guided between the two inner ring ribs.
| Bearing No. | Dimension (mm) | Mass (kg) | ||
| d | D | B | ||
| 20304-TVP | 20 | 52 | 15 | 0.152 |
| 20305-TVP | 25 | 62 | 17 | 0.243 |
| 20306-TVP | 30 | 72 | 19 | 0.37 |
| 20307-TVP | 35 | 80 | 21 | 0.493 |
| 20308-TVP | 40 | 90 | 23 | 0.671 |
| 20309-TVP | 45 | 100 | 25 | 0.914 |
| 20310-TVP | 50 | 110 | 27 | 1.17 |
| 20311-TVP | 55 | 120 | 29 | 1.53 |
| 20312-TVP | 60 | 130 | 31 | 1.92 |
| 20313-MB | 65 | 140 | 33 | 2.18 |
| 20314-MB | 70 | 150 | 35 | 3.15 |
| 20315-MB | 75 | 160 | 37 | 3.76 |
| 20316-MB | 80 | 170 | 39 | 4.58 |
| 20317-MB | 85 | 180 | 41 | 5.25 |
| 20318-MB | 90 | 190 | 43 | 6.25 |
| 20319-MB | 95 | 200 | 45 | 7.29 |
| 20320-MB | 100 | 215 | 47 | 8.69 |
| 20322-MB | 110 | 240 | 50 | 11.6 |
| 20324-MB | 120 | 260 | 55 | 15.2 |
| 20326-MB | 130 | 280 | 58 | 18.4 |
| 20328-MB | 140 | 300 | 62 | 22.5 |
| 20330-MB | 150 | 320 | 65 | 26.9 |
