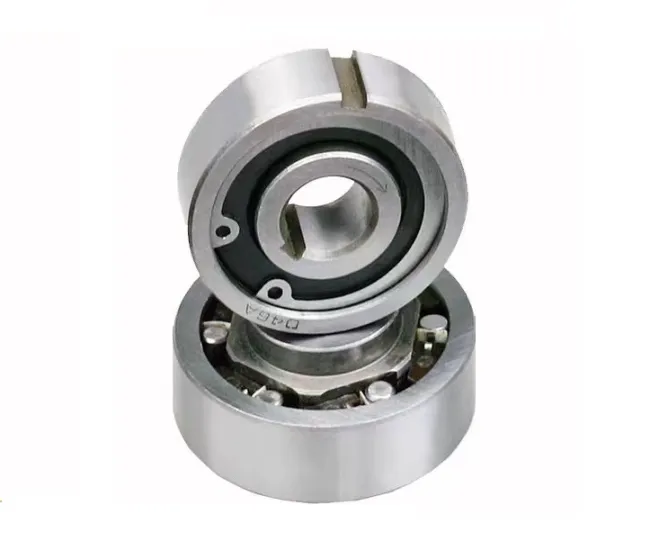

One Way Clutch Bearing Sprag Clutch Bearing CSK20P
One Way Bearings are divided into open type and sealed type. The keyway can be machined on the inner ring and outer ring.
Freewheel clutch is mainly used in such applications as speed conversion, reversal preventing, intermittent movement and etc. Working principle is to use friction generated by wedge, spring and such compression elements to transmit torque.
| Type | Size | Bearing series | Bearing loads | Weight | Drag torque | |||||||
| dynamic | static | |||||||||||
| d | TKN1) | nmax | D | L | b | t | C | C0 | TR | |||
| [mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [kN] | [kN] | [kg] | [Ncm] | ||
| CSK..P | 12 | 6201 | 9.3 | 10000 | 32 | 10 | 6.1 | 2.77 | 0.04 | 0.7 | ||
| 15 | 6202 | 17 | 8400 | 35 | 11 | 7.4 | 3.42 | 0.06 | 0.9 | |||
| 17 | 6203 | 30 | 7350 | 40 | 12 | 7.9 | 3.8 | 0.07 | 1.1 | |||
| 20 | 6204 | 50 | 6000 | 47 | 14 | 9.4 | 4.46 | 0.11 | 1.3 | |||
| 25 | 6205 | 85 | 5200 | 52 | 15 | 10.7 | 5.46 | 0.14 | 2 | |||
| 30 | 6206 | 138 | 4200 | 62 | 16 | 11.7 | 6.45 | 0.21 | 4.4 | |||
| 35 | 6207 | 175 | 3600 | 72 | 17 | 12.6 | 7.28 | 0.3 | 5.8 | |||
| 40 | - | 325 | 3000 | 80 | 22 | 15.54 | 12.25 | 0.5 | 7 | |||
| CSK..PP | 15 | 6202 | 17 | 8400 | 35 | 11 | 2 | 0.6 | 7.4 | 3.42 | 0.06 | 0.9 |
| 17 | 6203 | 30 | 7350 | 40 | 12 | 2 | 1 | 7.9 | 3.8 | 0.07 | 1.1 | |
| 20 | 6204 | 50 | 6000 | 47 | 14 | 3 | 1.5 | 9.4 | 4.46 | 0.11 | 1.3 | |
| 25 | 6205 | 85 | 5200 | 52 | 15 | 6 | 2 | 10.7 | 5.46 | 0.14 | 2 | |
| 30 | 6206 | 138 | 4200 | 62 | 16 | 6 | 2 | 11.7 | 6.45 | 0.21 | 4.4 | |
| 35 | 6207 | 175 | 3600 | 72 | 17 | 8 | 2.5 | 12.6 | 7.28 | 0.3 | 5.8 | |
| 40 | - | 325 | 3000 | 80 | 22 | 10 | 3 | 15.54 | 12.25 | 0.5 | 7 | |
| CSK..P-2RS | 12 | - | 9.3 | 10000 | 32 | 14 | 6.1 | 2.77 | 0.05 | 3 | ||
| 15 | - | 17 | 8400 | 35 | 16 | 7.4 | 3.42 | 0.07 | 4 | |||
| 17 | - | 30 | 7350 | 40 | 17 | 7.9 | 3.8 | 0.09 | 5.6 | |||
| 20 | - | 50 | 6000 | 47 | 19 | 9.4 | 4.46 | 0.145 | 6 | |||
| 25 | - | 85 | 5200 | 52 | 20 | 10.7 | 5.46 | 0.175 | 6 | |||
| 30 | - | 138 | 4200 | 62 | 21 | 11.7 | 6.45 | 0.27 | 7.5 | |||
| 35 | - | 175 | 3600 | 72 | 22 | 12.6 | 7.28 | 0.4 | 8.2 | |||
| 40 | - | 325 | 3000 | 80 | 27 | 15.54 | 12.25 | 0.6 | 10 | |||
1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.
Please contact us immediately if you have any questions.
