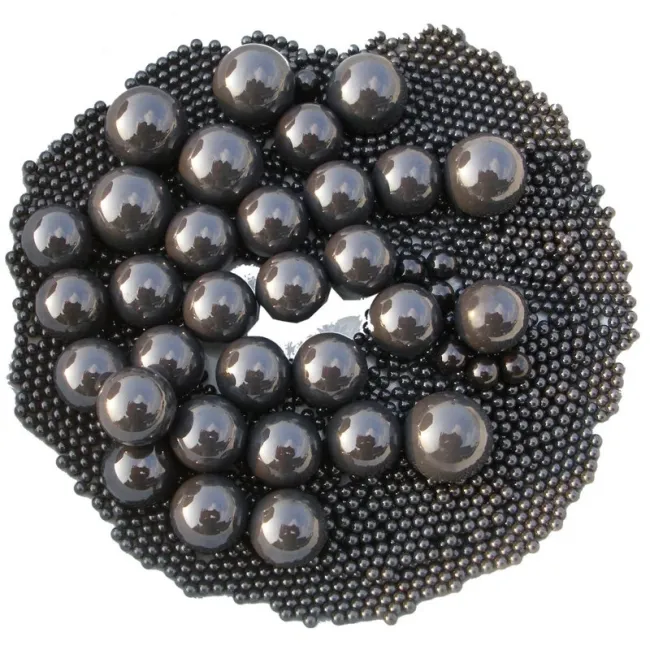

Zirconia Silicate Beads/ Balls for Grinding and Milling
Ceramic balls have excellent performance as special and magnetism resistance, wear and corrosion resistance, lubrication and maintenance free when working, especially high and low-temperature application, etc. They could be used in awful environment and special condition.
Application:
- Flow Control
- Metering
- Bearing
- Aeronautics
- Environments with magnetic concerns

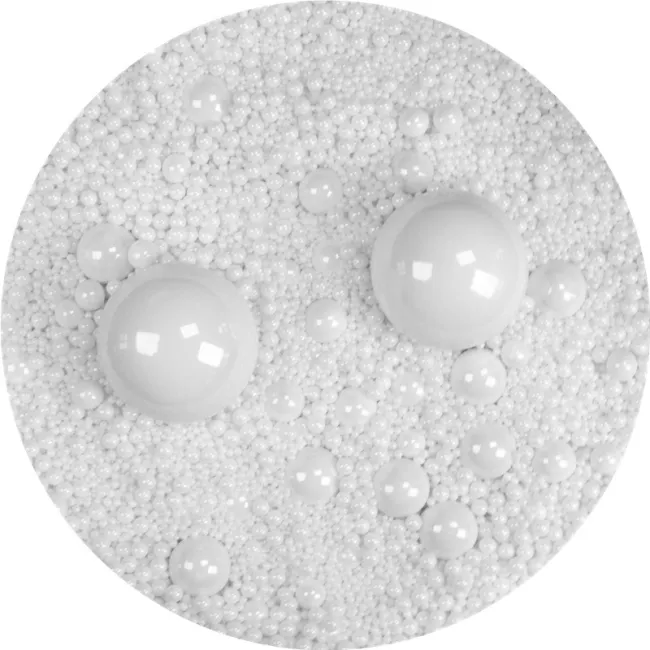

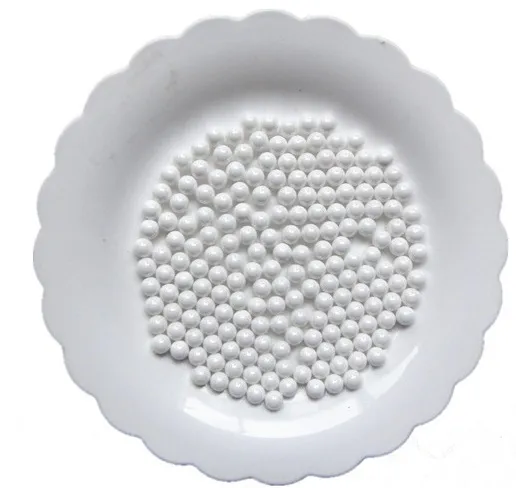

Zirconium silicate beads are the result of process optimization and continuous upgrading of molding and grinding technology. 65 zirconium silicate beads are formulated using a high-temperature sintering process. The beads have no pores, dense crystal phases, and spherical shapes. Medium hardness and density, with good wear resistance, very suitable for the dispersion and grinding of medium and low viscosity slurry. Among them, the small particle size can be used for spraying polishing materials.
We can provide the balls with Low Carbon Steel, High Carbon Chrome Alloy,Chrome steel, Stainless Steel,Phosphor Bronze Brass,High Carbon Steel,Medium Carbon Steel, Ceramics.
| Inch | mm | Weight per 1000 balls kg | Inch | mm | Weight per 1000 balls kg |
| 1/64 | 0.397 | 0.00026 | - | 19 | 27.98 |
| - | 0.5 | 0.00051 | 3/4 | 19.05 | 28.2 |
| 1/32 | 0.794 | 0.00021 | 25/32 | 19.844 | 31.87 |
| - | 1 | 0.00407 | - | 20 | 32.63 |
| 3/64 | 1.19 | 0.00688 | 13/16 | 20.637 | 35.85 |
| - | 1.2 | 0.00704 | - | 21 | 37.77 |
| - | 1.5 | 0.01377 | 27/32 | 21.431 | 40.15 |
| 1/16 | 1.588 | 0.01632 | - | 22 | 43.43 |
| 5/64 | 1.984 | 0.03187 | 7/8 | 22.225 | 44.78 |
| - | 2 | 0.0326 | - | 23 | 49.63 |
| 3/32 | 2.381 | 0.055 | 29/32 | 23.019 | 49.75 |
| - | 2.5 | 0.0638 | 15/16 | 23.812 | 55.07 |
| 7/64 | 2.778 | 0.0875 | - | 24 | 26.39 |
| - | 3 | 0.1101 | 31/32 | 24.606 | 60.77 |
| 1/8 | 3.175 | 0.1305 | - | 25 | 63.73 |
| - | 3.5 | 0.1749 | 1 | 25.4 | 66.84 |
| 9/64 | 3.572 | 0.1859 | - | 26 | 71.69 |
| 5/32 | 3.969 | 0.255 | 1 1/16 | 26.987 | 80.17 |
| - | 4 | 0.261 | - | 28 | 89.54 |
| 11/64 | 4.366 | 0.3394 | 1 1/8 | 28.575 | 95.17 |
| - | 4.5 | 0.3716 | - | 30 | 110.1 |
| 3/16 | 4.763 | 0.4406 | 1 3/16 | 30.162 | 111.9- |
| - | 5 | 0.5099 | 1 1/4 | 31.75 | 130.5 |
| 5.5 | 0.6786 | - | 32 | 133.7 | |
| 7/32 | 5.556 | 0.6996 | 1 5/16 | 33.337 | 151.1 |
| 15/64 | 5.953 | 0.8605 | - | 34 | 160.3 |
| - | 6 | 0.881 | 1 3/8 | 34.925 | 173.8 |
| 1/4 | 6.35 | 1.044 | - | 35 | 174.9 |
| - | 6.5 | 1.12 | - | 36 | 190.3 |
| 17/64 | 6.747 | 1.253 | 1 7/16 | 36.512 | 198.5 |
| - | 7 | 1.399 | - | 38 | 223.8 |
| 9/32 | 7.144 | 1.487 | 1 1/2 | 38.1 | 225.6 |
| - | 7.5 | 1.721 | 1 9/16 | 39.687 | 255 |
| 19/64 | 7.541 | 1.749 | - | 40 | 261 |
| 7.938 | 2.04 | 1 5/8 | 41.275 | 286.8 | |
| - | 8 | 2.088 | 1 11/16 | 42.862 | 321.2 |
| -' | 8.5 | 2.505 | 1 3/4 | 44.45 | 358.2 |
| 11/32 | 8.731 | 2.715 | - | 45 | 371.7 |
| - | 9 | 2.973 | 1 13/16 | 46.037 | 398 |
| 23/64 | 9.128 | 3.102 | 1 7/8 | 47.625 | 440.6 |
| - | 9.5 | 3.497 | 1 15/16 | 49.212 | 486.1 |
| 3/8 | 9.525 | 3.525 | - | 50 | 509.9 |
| 25/64 | 9.922 | 3.983 | 2 | 50.8 | 534.7 |
| - | 10 | 4.079 | 2 1/8 | 53.975 | 641.4 |
| 12/32 | 10.319 | 4.481 | - | 55 | 687.6 |
| - | 11 | 5.429 | 2 1/4 | 57150 | 761.3 |
| 7/16 | 11.112 | 5.597 | - | 60 | 881 |
| - | 11.5 | 6.203 | 2 3/8 | 60.235 | 895.4 |
| 29/64 | 11.509 | 6.219 | 2 1/3 | 63.5 | 1044.4 |
| 15/32 | 11.906 | 6.884 | - | 65 | 1120.1 |
| - | 12 | 7.048 | 2 5/8 | 66.675 | 1209 |
| 31/64 | 12.303 | 7.596 | 2 3/4 | 69.85 | 1390.1 |
| 1/2 | 12.7 | 8.355 | - | 70 | 1484.7 |
| - | 13 | 8.961 | 2 7/8 | 73.025 | 1558.4 |
| 17/32 | 13.494 | 10.02 | - | 75 | 1720.7 |
| - | 14 | 11.19 | 3 | 76.2 | 1804.7 |
| 9/16 | 14.288 | 11.9 | 3 1/8 | 79.375 | 2039.8 |
| - | 15 | 13.77 | - | 80 | 2088.3 |
| 19/32 | 15.801 | 13.99 | 3 1/4 | 82.55 | 2094.4 |
| 5/8 | 15.875 | 16.32 | _ | 85 | 2530.9 |
| - | 16 | 16.7 | 3 1/2 | 88.9 | 2865.7 |
| 21/32 | 16.669 | 18.89 | - | 90 | 2993.4 |
| - | 17 | 20.04 | - | 95 | 3521.1 |
| 11/16 | 17.462 | 21.72 | 3 3/4 | 95.25 | 3524.7 |
| - | 18 | 23.79 | - | 100 | 4078.8 |
| 23/32 | 18.256 | 24.82 | 4 | 101.6 | 4277.7 |
1. We have over 10 years' experience.
2. OEM or Non-Standard Bearings: Any requirement for Non-standard bearings is easily fulfilled by us due to our vast knowledge and links in the industry.
3. After Sales Service and Technical Assistance: Our company provides after-sales service and technical assistance as per the customer's requirements and needs.
4. Quick Delivery: Our company provides just-in-time delivery with our streamlined supply chain.
5.We attend promptly to any customer questions. We believe that if our customers are satisfied then it proves our worth. Our customers are always given quick support.
Please contact us immediately if you have any questions.
