XFPM-100KPGV Gauge pressure Snsor Medical Device Non Corrosive
Price:
Negotiable
MOQ:
1
Delivery Time:
3-5workingdays
Brand:
Fujikura
Product Description

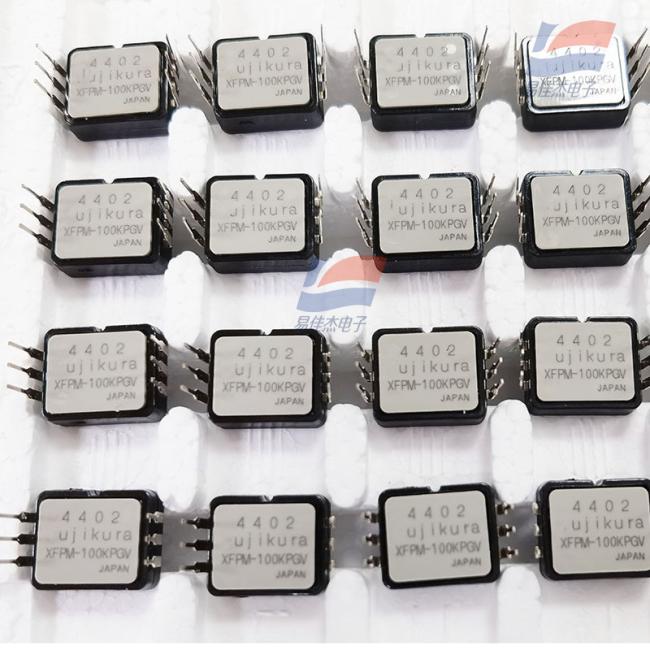

XFPM-100KPGV Gauge pressure Snsor Medical Device Non Corrosive
Applications
. Industrial instrumentation
. Pressure switch, Pneumatic device
. Medical device
Features
. Two accuracy ranks, 1.5 FS and 2.5 FS available
. Volt level output
. On-chip amplification and temperature compensations
. Pre-calibration of offset voltage and span
. Non-corrosive liquid measurable (XFPMC, XFHMC only)
Specification:
| Pressure Type | Gauge Pressure (Negative Pressure) |
| Rated Pressure | 100kPa |
| Measurable Pressure Range | 0~-100kPa |
| Pressure Medium | Non-corrosive gases only |
| Package | Dual In-line Package (DIP) |
| Supply Voltage | 5.0V DC±0.25V |
| Maximum Excitation Voltage | 8V DC (1.5 times rated voltage) |
| Current Consumption | Maximum 10mA |
| Output Impedance | Maximum 10Ω |
| Source Current | Maximum 0.2mA |
| Sink Current | Maximum 2mA |
| Zero-voltage Offset Voltage | 0.2V±0.1125V (at 0kPa) |
| Full-scale Output Voltage | 4.7V±0.1125V (at rated pressure) |
| Accuracy | ±2.5% FS |
