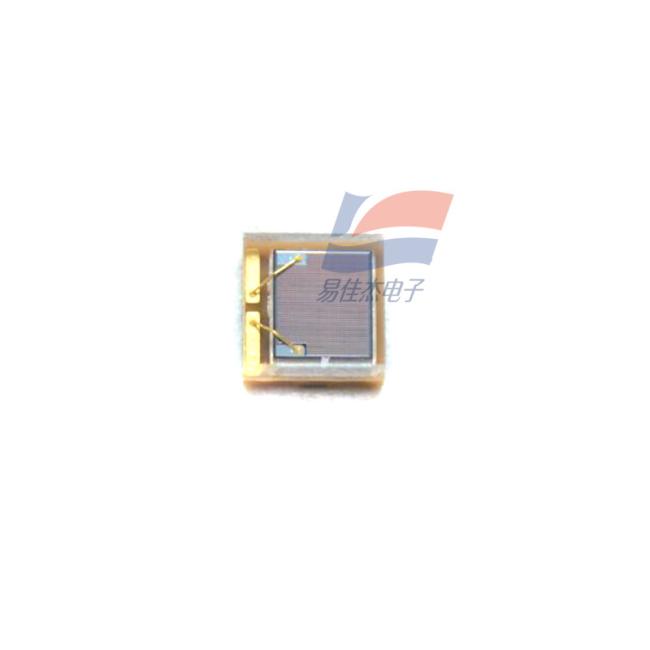

S15639-1325PS Near infrared high sensitivity MPPC SiPM Multi Pixel Photon Conuter
Near infrared high sensitivity MPPC (SiPM)
The S15639-1325PS is a surface mount type MPPC (SiPM) designed for automotive LiDAR applications that achieves high sensitivity and low afterpulses.
Features
- High photon detection efficiency: 9% (λ=905 nm)
- Low afterpulse probability: 1% max.
- High gain: 1.3 × 106
- Low crosstalk
Applications
*Distance measurement
*LIDAR Low crosstalk
Specification:
|
Package type
|
Glass epoxy |
| Number of channels | 1 ch |
| Effective photosensitive area / ch | 1.3 × 1.1 mm |
| Number of pixels /ch | 2120 |
| Pixel size | 25 μm |
| Spectral response range | 400 to 1000 nm |
| Peak sensitivity wavelength (typ.) | 660 nm |
| Dark count/ch (typ.) | 700 kcps |
| Terminal capacitance/ch (typ.) | 42 pF |
| Gain (typ.) | 1.3 × 106 |
| Measurement condition | Ta=25 ℃ |
