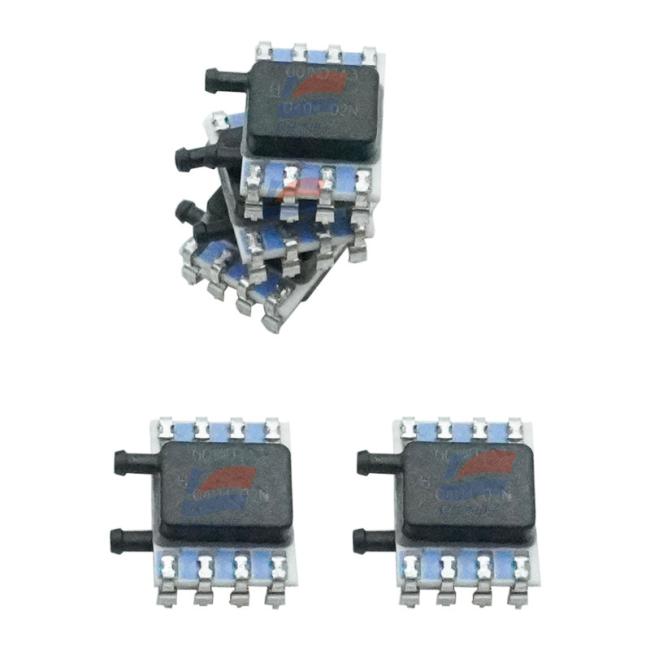

HSCMRRN001ND2A3 Board Mount Pressure Sensors SMD SMT Digital 3.3V
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
3-5workingdays
Brand:
YJJ
Product Description
HSCMRRN001ND2A3 Board Mount Pressure Sensors SMD SMT Digital 3.3V
High-precision differential pressure sensor, primarily for gas pressure detection in medical and industrial fields.
Core features: Built-in dedicated ASIC circuitry enables comprehensive calibration and temperature compensation of the sensor's zero point, sensitivity, temperature coefficient, and nonlinearity; digital output values are updated at a rate of approximately 2kHz; low power consumption makes it compatible with battery-powered devices; and it meets IPC/JEDEC J-STD-020D.1 Humidity Sensitivity Level 1 requirements.
Specification:
|
Pressure Type
|
Differential |
| Operating Pressure | 1 in H2O |
| Accuracy | 3 % |
| Output Type | Digital |
| Mounting Style | SMD/SMT |
| Interface Type | I2C |
| Operating Supply Voltage | 3.3 V |
| Port Type | Dual Radial Barbed, Same Side |
| Resolution | 12 bit |
| Package / Case | SMD-8 |
| Minimum Operating Temperature | 0℃ |
| Maximum Operating Temperature | + 50℃ |
| Operating Supply Current | 3.1 mA |
| Port Size | 1.93 mm |
| Supply Voltage - Max | 3.6 V |
| Supply Voltage - Min | 3 V |
