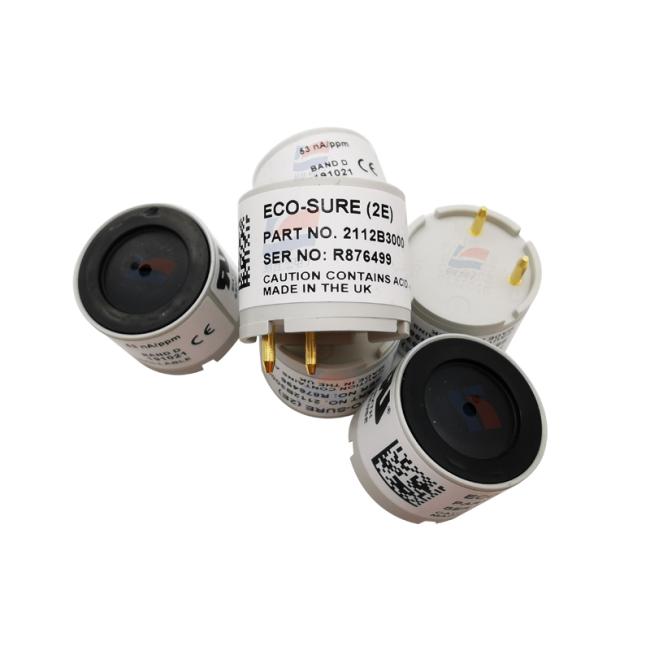

YJJ ECO-SURE 2112B3000 Fire alarm Electrochemical Carbon Monoxide CO Sensor In Parking lot

Product Description:

ECO-SURE 2112B3000 Fire alarm Electrochemical Carbon Monoxide CO Sensor In Parking lot

Features:

Carbon Monoxide CO Gas Measurement System - ECO-Sure X CO sensor with extended warranty, 4-20mA transmitter and mounting kit in aluminum housing. PG11 cable sealing sleeve.

Measuring range: Standard: 0-300ppm CO. Optional: 0-500ppm CO

Size: Includes 4 series sensors

Part number: 2112B1013X

Power supply: 24V d.c. Output: 4-20mA

Carbon Monoxide The carbon Monoxide gas measurement system measures the concentration of carbon monoxide gas in the air at ambient temperatures from -20° C to +45° C. The housing is made of aluminum for wall-mounted installation and provides a simple solution for measuring carbon monoxide. The included sensor assembly comes with a 10-year extended warranty.

The basic processing and output of the measured values (linear output, 4-20 mA) is integrated into the measurement system. The measured values are evaluated and further processed in the downstream equipment selected by the user (e.g., ventilation systems, limit monitors, displays, programmable logic controllers).

The gas measurement system provides a fast and accurate solution for carbon monoxide measurement. The 4-20mA transmitter at the heart of the measuring system has been specially approved by TUV under VDI 2053 for OEM applications of carbon monoxide monitoring systems in underground parking lots, making it ideal for measuring carbon monoxide in underground parking lots and tunnels.

The sensor in this gas measurement system is ECO-Sure, the most valuable high-quality carbon monoxide sensor on the market, used in millions of gas detectors worldwide. ECO-Sure sensors are used in global fire detection systems, commercial, Marine and residential alarms, and parking lot systems. Can be used as a single sensor, in combination with this 4-20mA transmitter, or as a complete enclosed solution.

ECO-Sure is Sixth Sense's latest generation of carbon monoxide sensors, designed for consumer and commercial applications. It is an ideal sensor for fire detection systems, residential carbon monoxide alarms and parking lot monitoring systems.

The cost is extremely low.

Unique design for extreme environments.

The sensor components are guaranteed for 10 years with a typical service life of more than 10 years.

Applicable to BS, EN, UL, LPC, VDS and TUV certified products.

An integrated active filter eliminates false positives caused by common household vapors
