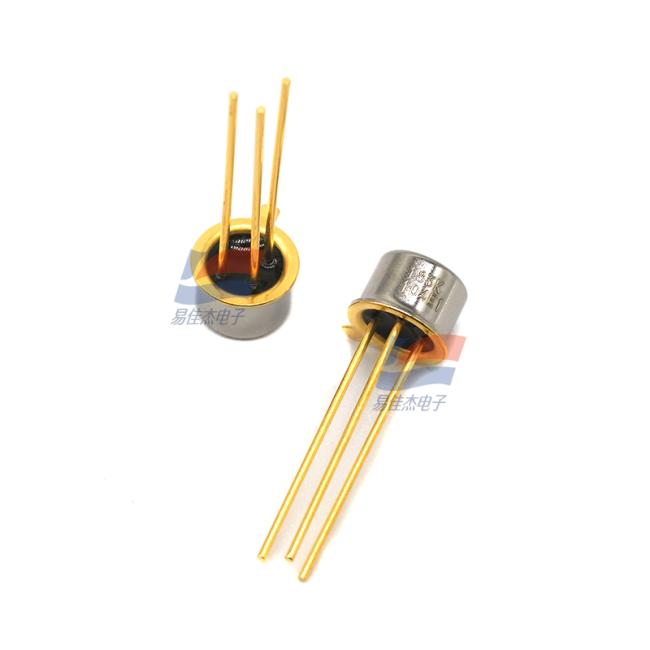

YJJ G12183-010K InGaAs PIN Photodiode Long wavelength Type (cut-off wavelength: 2.6μm)
Product Description:
G12183-010K InGaAs PIN Photodiode Long wavelength Type (cut-off wavelength: 2.6μm)
Features:
Long wavelength type (cut-off wavelength: 2.6μm)
peculiarity
- Cut-off wavelength: 2.6μm
- Low cost
- Receiving surface: φ1mm
- Low noise
- High sensitivity
- High reliability
- High speed response
Receiving surface φ1.0mm
Number of pixels 1
Encapsulation metal
Package category TO-18
Heat dissipation uncooled type
Sensitivity wavelength range 0.9 to 2.6 μm
Maximum sensitivity wavelength (typical value) 2.3 μm
Photosensitivity (typical value) 1.3 A/W
Dark current (Max.) 30000 nA
Cut-off frequency (typical value) 6 MHz
Junction capacitance (typical value) 500 pF
Noise equivalent power (typical value) 1×10-12 W/Hz1/2
Typical value of measurement conditions Tc = -25°C, unless otherwise stated, sensitivity: λ = λp, dark current: VR = 0.5V, cut-off frequency: VR = 0V, RL = 50Ω, junction capacitance: VR = 0V, f = 1MHz
Specifications:
| Package category | TO18 |
| Sensitivity wavelength range | 0.9 to 2.6 μm |
| Maximum sensitivity wavelength (typical value) | 2.3 μm |
| Photosensitivity (typical value) | 1.3 A/W |
