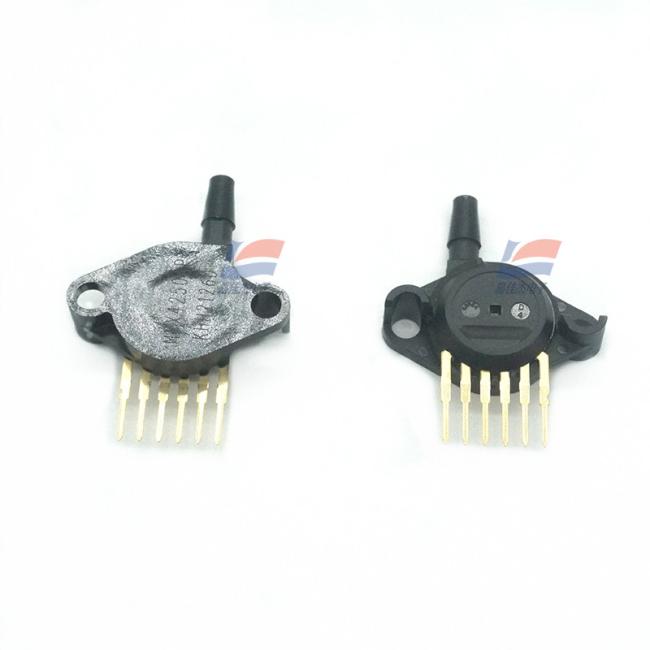

YJJ MPX4250AP MPX4250DP Pressure Sensors For Automotive System Turbocharged Engine Control

Product Description:

MPX4250AP MPX4250DP Pressure Sensors For Automotive System Turbocharged Engine Control

Features:

MPX4250 is a single-port, manifold absolute pressure sensor with a 6-pin SIP package. This device is designed for the absolute pressure sensing application of the intake manifold in the engine control system. It can be used to calculate the amount of fuel required for each cylinder. This piezoresistive sensor is the most advanced single-chip silicon pressure sensor and can be used in a wide range of applications. It is applicable to microcontroller or microprocessor systems with A/D input. Combining advanced microfabrication technology, thin-film metallization and bipolar processing, it provides an accurate analog output signal proportional to the applied pressure.

On-chip signal regulation, temperature compensation and calibration

Within the range of 0°C to 85°C, the maximum error is 1.5%

Silicon shear stress-strain gauge

Temperature compensation from -40°C to 125°C

Compared with the existing hybrid modules, it is lighter in weight and smaller in size

Suitable for non-automotive applications

Pressure difference range :20KPa to 250KPa

Power supply voltage range :4.85VDC to 5.35VDC

Sensitivity :20mV/KPa

Response time :1ms

Application

Sensing and Instruments

Product type: Board computer interface pressure sensor

RoHS:

Pressure type: Absolute

Working pressure: 36 psi

Accuracy: 1.5%

Output type: Analog

Installation style: Through Hole

Working power supply voltage: 5 V

Port type: Single Radial Barbed

Packaging/Box: Unibody-6

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 125 ° C

Series: MPX4250

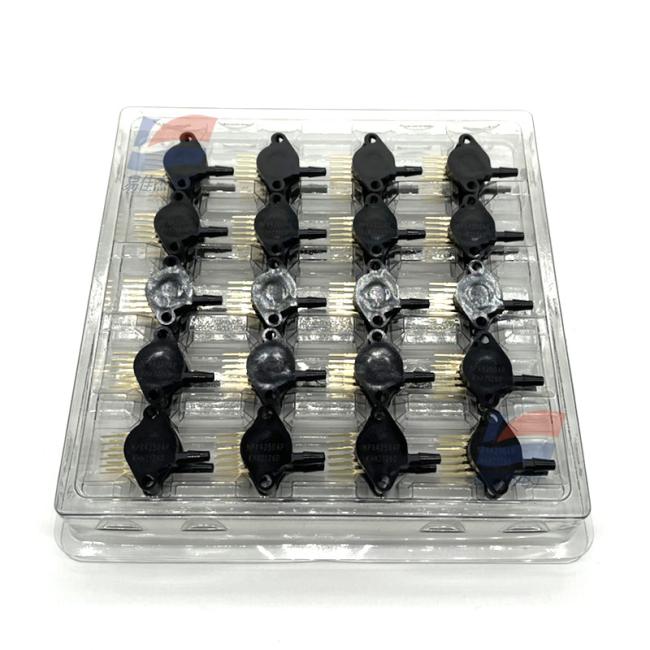

Packaging: Tray

Trademark: Semiconductors

Working power supply current: 7 mA

Output voltage: 4.9V

Port size: 4.93mm

Product type: Board Mount Pressure Sensors

100

Subcategory: Sensors

Power supply voltage - Maximum: 5.35V

Power supply voltage - minimum: 4.85V

Part number alias: 935321182117

Unit weight: 3.376 g
