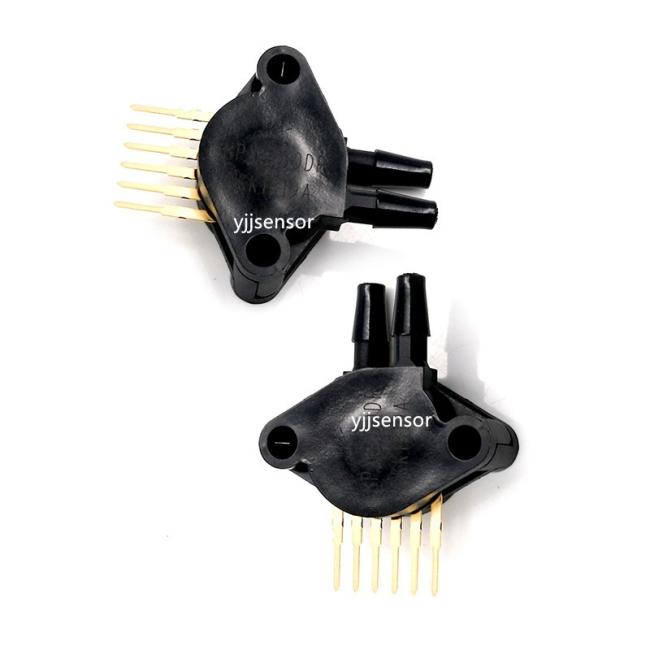

YJJ MPX5100DP Trigger Interface Pressure Sensor With A Pressure Range Of 0 To 115kPa Is Used For Monitoring And Simulating Brake Boosters

Product Description:

MPX5100DP Trigger Interface Pressure Sensor With A Pressure Range Of 0 To 115kPa Is Used For Monitoring And Simulating Brake Boosters

Features:

MPX5100 series piezoresistive sensor is a new type of single crystal silicon sensor, featuring a small form factor package. This sensor has A wide range of applications and is particularly suitable for those applications that adopt microcontrollers or microprocessors with A/D inputs. This obtained unit sensor combines advanced micro-mechanical technology, thin-film metallization and bipolar processing to provide a high-level analog output signal proportional to the applied pressure.

Characteristics

The error rate within the range of 0℃ to 85℃ is 2.5%

Applicable to systems based on microprocessors or microcontrollers

Profitable silicon shear stress strain gauges

Provide gauge pressure configuration and offer pressure and differential pressure configuration as required

It is an ideal choice for both automotive and non-automotive applications

Manufacturer: YJJ

Product type: Board computer interface pressure sensor

RoHS:

Pressure type: Differential

Working pressure: 14.5 psi

Accuracy: 2.5%

Output type: Analog

Installation style: Through Hole

Working power supply voltage: 5 V

Port type: Dual Axial Barbed

Packaging/Box: Unibody-6

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 125 ° C

Series: MPX5100

Packaging: Tray

Trademark: Semiconductors

Working power supply current: 7 mA

Output voltage: 4.7V

Port size: 4.93mm

Product type: Board Mount Pressure Sensors

100

Subcategory: Sensors

Power supply voltage - Maximum: 5.25V

Power supply voltage - minimum: 4.75

Part number alias: 935316816117

Unit weight: 5.241g
