Product Description:

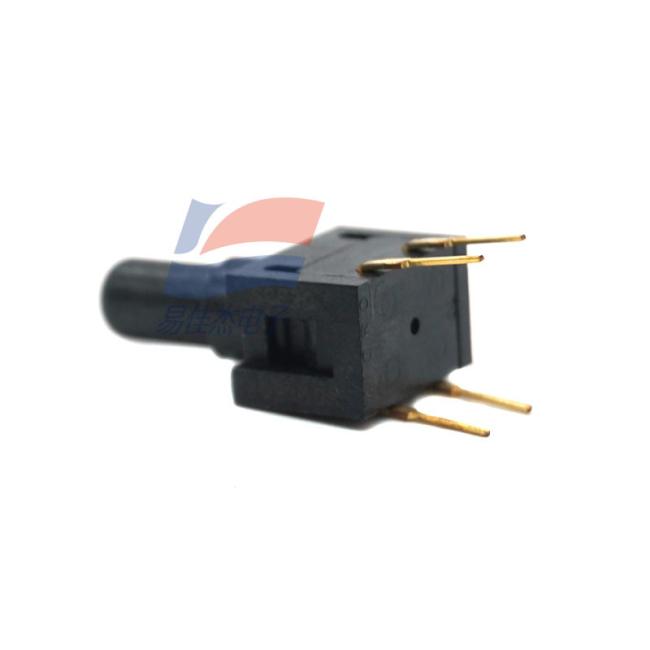

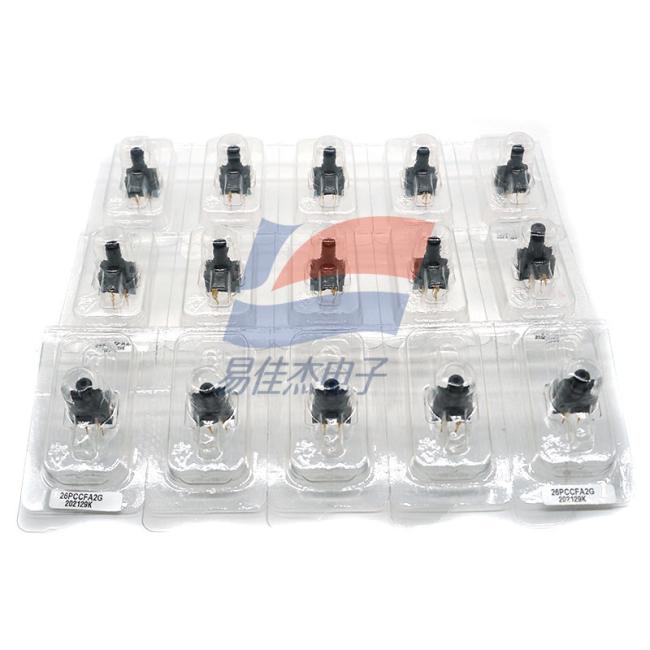

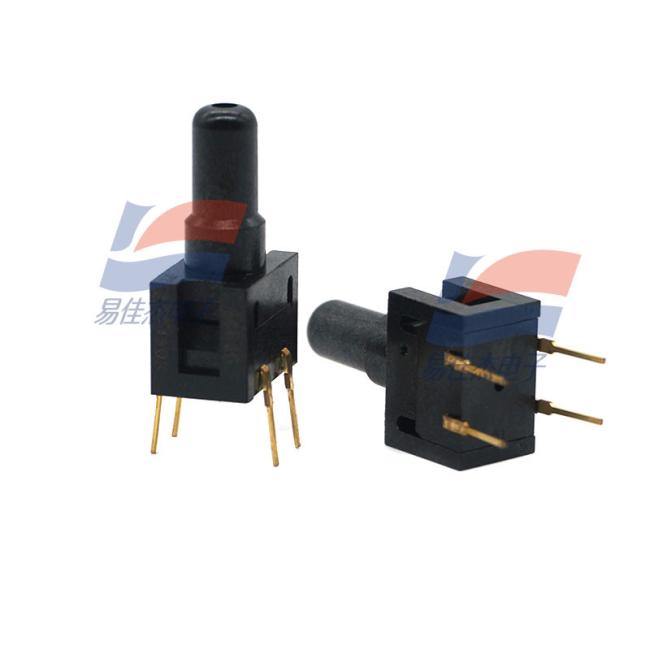

26PCCFA2G Respiratory Instrument Gauge Pressure 0 to 15psi Trigger Interface Pressure Sensor

Features:

26PC series Compensatory type. Low pressure. mV output. Differential pressure, wet/wet differential pressure, gauge pressure. DIP, SIP, SMT. Linearity and lag: 0.5% typ.

Pressure range

0.5 psi to 250 psi (SIP, DIP)

1 psi to 15 psi (SMT)

The factory-calibrated 26PC series of small pressure sensors feature a compact package size and offer reliable gauge pressure sensing performance. This sensor is equipped with verified sensing technology and employs dedicated piezoresistive micro-machined sensing elements, allowing for part interchangeability. It features high performance, reliability and accuracy. The low-power, amplitation-free and compensation-free Wheatton bridge circuit can provide a stable mV output within the sensing range of 1.0 psi to 250 psi.

Product type: Board computer interface pressure sensor

RoHS:

Pressure type: Gauge, Differential

Working pressure: 15 psi

Accuracy: 0.2%

Output type: Analog

Installation style: Through Hole

Working power supply voltage: 10 V

Port type: Single Axial Barbless

Package/Box: SIP-4

Minimum operating temperature: -40 ° C

Maximum operating temperature: + 85 ° C

Series: 26PC

Trademark: Hon

Port size: 0.2 inches

Product type: Board Mount Pressure Sensors

25

Subcategory: Sensors

Power supply voltage - Maximum: 16 V

Unit weight: 2 g
