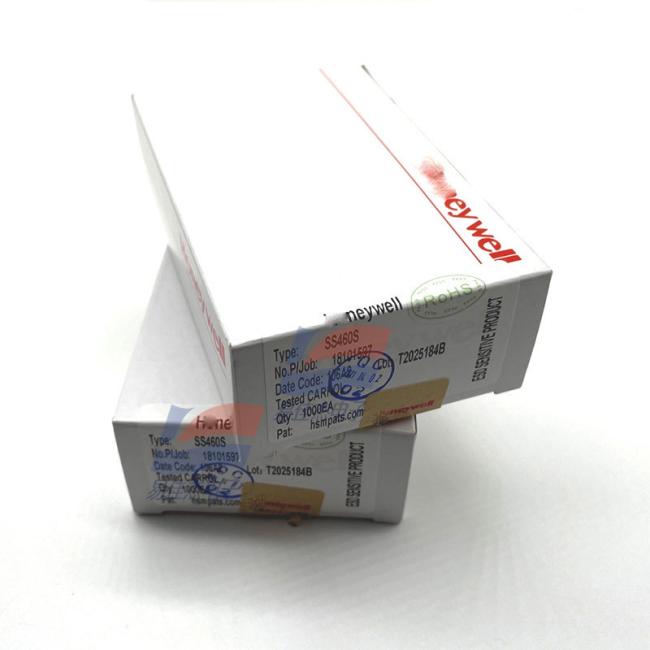

YJJ SS460S Digital Current Sink 3 to 24Vdc Latch-In Position Hall Effect Sensor with Released Magnetic Field 3.8-30V

Product Description:

SS460S Digital Current Sink 3 to 24Vdc latch-In Position Hall Effect Sensor

Features:

SS460S Digital Current sink 3 to 24Vdc latch-in position Hall effect sensor

Lock-in position sensor integrated circuit: High-sensitivity lock-in digital Hall effect sensor integrated circuit. SOT-23, flat TO-92 type, with straight or formed pin package. Digital current sink output

SEARCH

The SS360NT, SS360ST, SS360ST-10K, SS460S, SS460S-T2, SS460S-T3 and SS460S-LP high-sensitivity lock-in digital Hall effect sensor integrated circuits are sensitive and universal small devices that operate by magnetic fields provided by permanent magnets or electromagnets. They can respond to the changing North and South Poles. SS360NT is opened via the North Pole, while SS360ST, SS460S, SS460S-T2 and SS460S-LP are opened via the South Pole.

The sensor integrated circuit provides a reliable switching point, and the magnetic sensitivity is generally as high as 30G (55G). This sensor integrated circuit does not use the chopper stabilization effect on the Hall element, thereby providing a clear output signal. Moreover, compared with the highly competitive high-sensitivity Hall effect latch sensor integrated circuit that uses the chopper stabilization effect, it can achieve a faster latch response time.

These products offer reverse polarity protection and can stably output within a temperature range of -40°C to 150° C. They can accept any DC power supply voltage from 3Vdc to 24Vdc.

For brushless DC motor manufacturers who need reliable and consistent latk-in sensors to obtain more efficient small design products, Honeywell's newly launched high-sensitivity Hall effect latk-in sensor integrated circuit can respond quickly to changes in the magnetic field to improve motor efficiency, while also responding to weak magnetic fields and maintaining consistent repeatability.

These products include the following packaging styles:

SS360NT, SS360ST, SS360ST-10K: SOT-23 surface mount package, carrier tape and reel

Flat TO-92 type, standard straight pins, bulk packaging

Flat TO-92 type, formed pins, ammunition package-shaped tape box

Flat TO-92 type, long straight pins, carrier tape and reel

Flat TO-92 type, standard straight pins, ammunition pack-type reel box

Specifications:
