DS4-TVOC-200 Solid Polymer Electrochemical Gas Sensor For Industrial Commercial Civil Medical Fields

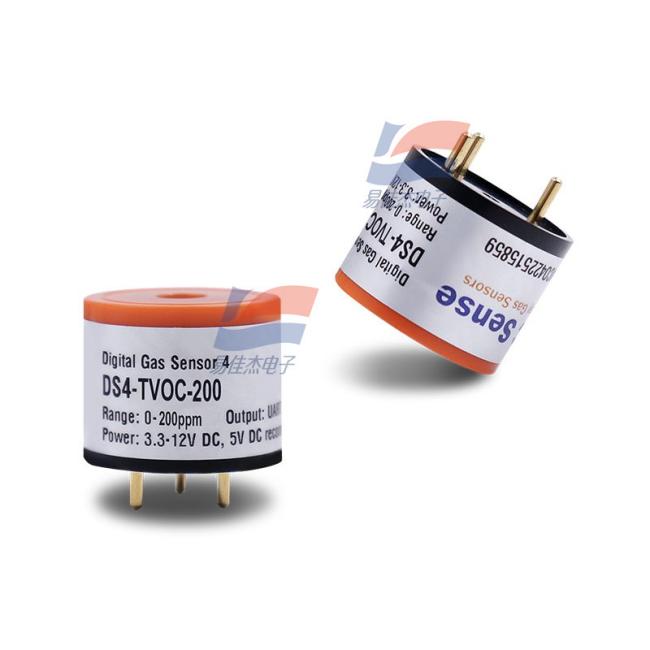

                                     DS4-TVOC-200 Solid Polymer Electrochemical Gas Sensor

Overview:

 DS4-TVOC intelligent gas sensor from EC Sense (Germany) adopts reliable printed solid-state polymer electrochemical sensor technology and is an industrial-grade intelligent gas sensor. With a compact structure design, it can be easily integrated into IoT and other monitoring systems, widely used in industrial, commercial, civil, and medical fields.

Features:

1. Low-power design: Wide-range power supply, 3.3 to 12V DC (5V DC recommended).
2. Broad operating range: Operating temperature: -40℃ to +55℃; operating humidity: 15-95%RH (non-condensing).
3. Stable performance: Strong long-term zero-point stability, anti-poisoning, and long service life. The electrolyte adopts a solidified design to avoid leakage risks caused by high humidity or material aging.
4. Rapid response: Fast response speed, capable of quickly capturing gas concentration changes with good linearity.
5. Intelligent detection: Equipped with intelligent self-inspection functions for sensor performance and service life, which can regularly self-check life and performance indicators and output warning signals.
6. Precise calibration: Each sensor undergoes professional gas calibration in the factory, and calibration information is stored in the internal chip. Users can use it directly without re-gas calibration.
7. No preheating required: Intelligent hardware design ensures immediate gas monitoring upon power-up, eliminating concerns about long preheating waiting times in energy-saving and low-power designs.
8. Diversified functions: Customizable encryption codes; sleep function with customizable sleep/wake modes; sensors can output identity information for self-identification design.
9. Simple output: Adopts UART 3.3V half-duplex single-wire mode for signal output, directly providing gas concentration values, making secondary development of application programs flexible, simple, and fast.
10. Convenient maintenance: Plug-and-play with hot-swappable capability; open calibration protocol supports secondary offline calibration in after-sales service and one-key restoration to factory calibration.

Technical Parameters:

1. Detection principle: Solid-state polymer electrochemical gas detection technology.
2. Error range: ±5%F.S.
3. Repeatability: <±2%.
4. Power-up stabilization time: <2min (no warm-up required, immediate measurement upon power-up).
5. Output signal: UART 3.3V half-duplex single-wire, baud rate 9600, 8 data bits, 1 stop bit, no parity bit.
6. Operating voltage: 3.3 to 12V DC (5V DC recommended).
7. Operating current: 0.65mA @ 5V DC.
8. Peak current: 1mA @ 5V DC.
9. Sleep mode current: 0.35mA @ 5V DC.
10. Power consumption: ≤5mW @ 5V DC.
11. Expected sensor life: >3 years (in air).
12. Storage temperature range: 0 to 20℃.
13. Housing material: ABS.
14. Packaging: Blister packaging.
