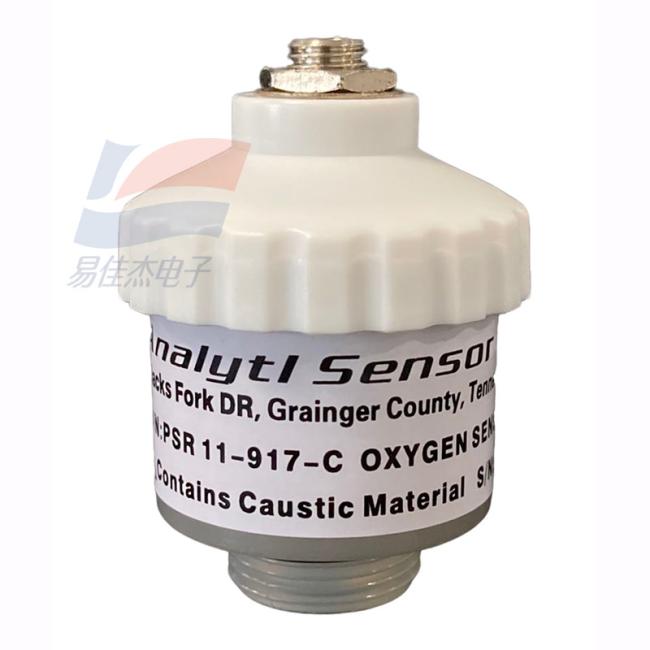

YJJ PSR 11-917-C Electrochemical Oxygen Sensor Oxygen Battery For Medical Applications

Product Description:

PSR 11-917-C Electrochemical Oxygen Sensor Oxygen Battery For Medical Applications

Features:

Description of the American AII Oxygen Sensor - PSR-11-917-MH1:

This electrochemical reference oxygen sensor GPR-11-917-MH1, manufactured in the United States and certified by the medical industry, boasts excellent accuracy and stability, and has undergone individual testing before shipment.

The new sensor is directly obtained from production, with an extended service life and a long warranty period. It complies with the U.S. Food and - Administration, MDSAP, ISO13485, and ISO9001.

The main functions of the American AII Oxygen Sensor - PSR-11-917-MH1:

Oxygen sensor compatibility: Atom V-2100G Incubator

Atom V-2200 Incubator

Drager C2000 Incubator

Drager/Airshield Isolette Incubator with built-in monitor

Replace the sensor for: IT Gambert M-12

Sensoronics SS-12AIR

Parameters of the American AII oxygen sensor - PSR-11-917-MH1:

Measurement range: 0 - 100%

Accuracy: +/-2% (full scale)

Signal output: 10 - 13 mV

Linearity: +/-2% of full scale)

Response time T90: 4 seconds

Temperature coefficient: Compensation

Operating temperature: 0 to 45°C

Storage temperature: 0 to 25°C

Shelf life: 6 months

No condensation of humidity (expected lifespan) 0 - 99% RH

Expected lifespan: 60 months

Shelf life: 14 months

Electrical connector: 3-pin male Molex, compatible with Molex 2201-2037 connector
