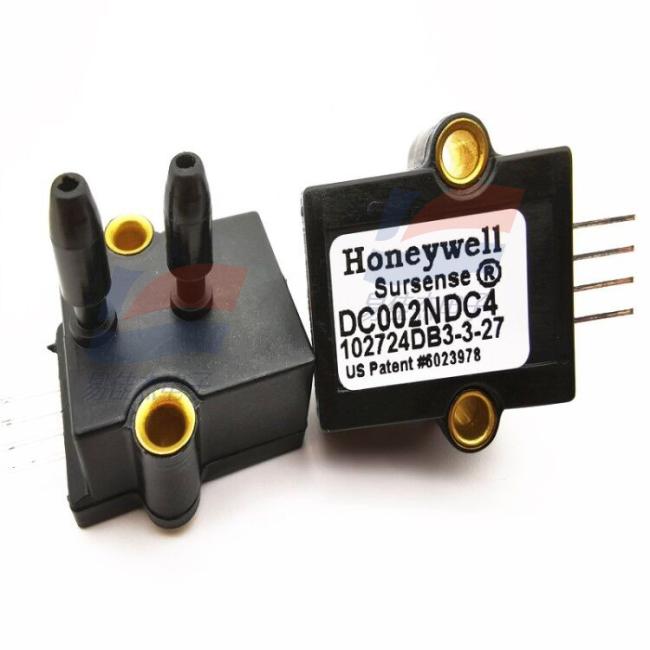

DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
5-8 work days
Product Description
DC002NDC4 Pressure Sensor For Being Integrated Into Infusion Pumps Medical Equipment
- Product Features:
- It is a temperature - compensated differential sensor, which can provide relatively accurate pressure measurement in a certain temperature range.
- The barbed port design is convenient for pipeline connection, which is suitable for board - mount applications.
- Application Fields:
- It can be used in medical equipment, such as being integrated into infusion pumps, ventilators and other equipment to measure the pressure of liquids or gases, helping medical staff to monitor the treatment process and ensure the safety of patients. It can also be used in some industrial occasions that require low - pressure measurement.
| Accuracy | ±0.05% | -- |
| Output Type | Analog voltage | -- |
| Output Voltage Range | 0.25 - 4.25 V or 2.25 - 6.25 V | V |
| Supply Voltage | 3.0 - 16.0 V, typical 5 V | V |
| Supply Current | 4 (typical) | mA |
| Operating Temperature Range | -25 - 85 | °C |
| Mounting Style | Through - hole | -- |
| Package/Case | 4 - SIP module | -- |
| Port Type | Dual Radial Barbed, Same sides | -- |
| Port Size | Male - 0.19" (4.83 mm) tube, dual | -- |
| Body Length | 21.59 | mm |
| Body Breadth | 12.95 | mm |
| Body Height | 27.43 | mm |
| Maximum Pressure | 3.61 psi (24.92 kPa) | psi (kPa) |
