Product Description:

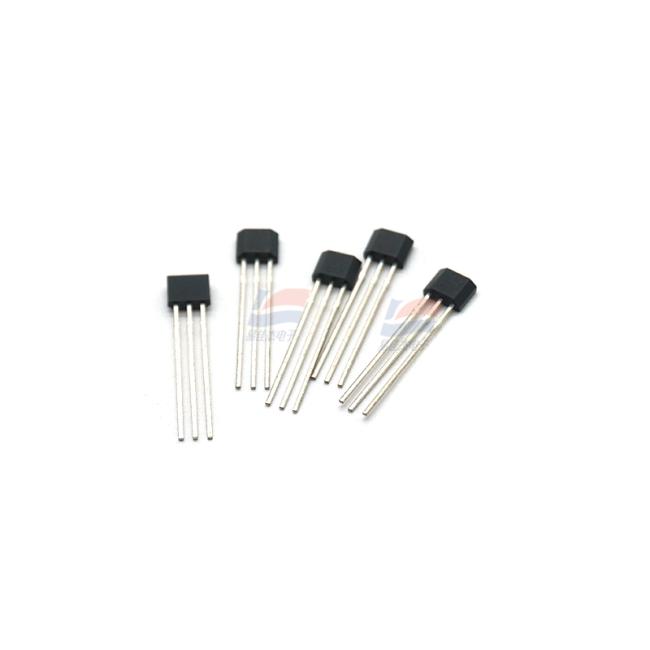

CS3040 Unipolar Single-Magnetic-Pole Hall Sensor Is Used For DC Brushless Motors

Features:

CS3040 Hall sensor is a high-precision sensor. Its parameters include a measurement voltage range of 220V, a measurement resistance range of 500Ω, and a measurement accuracy of up to 1%. The CS3040 Hall sensor provided in the store supports processing customization and logo printing, meeting your personalized needs. The maximum diameter of the measured workpiece can reach 36mm. Although the dial does not display the reading and diameter, the operation is simple.

CS3013, 3020, and 3040 are magnetic sensitive sensing circuits composed of a voltage regulator, Hall voltage generator, differential amplifier, Schmitt trigger, and open collector output stage. Their input is magnetic induction intensity, and the output is a digital voltage signal. It is a single magnetic pole working magnetic sensitive circuit, suitable for working under rectangular or cylindrical magnets. The working temperature range of Class I is -40 to 125℃, and they can be applied in the automotive industry and - engineering. They have three packaging forms: TO-92UA, TO-92T, and TO-92U.

Product features

Wide power supply voltage range.

Fast switching speed, no instantaneous jitter.

Wide operating frequency range (DC~100KHz)

Long lifespan, small size, easy installation

Can directly interface with transistors and TTL, MOS and other logic circuits

Specifications:
