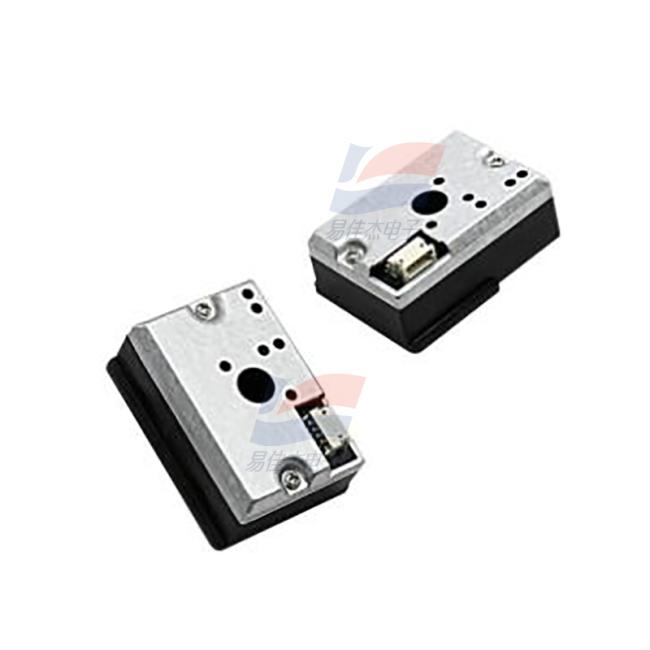

APM3001 Infrared Dust Particle Sensor PM2.5 Sensor Detection Module For Home Air Purifiers Car Air Purifiers
APM3001 Infrared Dust Particle Sensor PM2.5 Sensor Detection Module For Home Air Purifiers Car Air Purifiers
Product Introduction:
APM3001 is a compact infrared particle sensor with built - in MCU. It is based on the infrared light scattering principle, has stable detection performance, and can effectively detect low - concentration particles (below 100 μg/m³). It also has the characteristics of electromagnetic shielding design, good anti - interference, high precision and low power consumption.
Application Scenarios:
It is suitable for home air purifiers, car air purifiers, residential and commercial air - conditioners, HVAC systems, various indoor air quality monitors, Internet of Things hardware intelligence and other equipment.
|
Parameter |
Minimum |
Typical |
Maximum |
Unit |
|---|---|---|---|---|
| Supply Voltage | 4.8 | 5 | 5.2 | V DC |
| Operating Current | 10 | 12 | - | mA |
| Stand - by Current | 2 | 3 | - | mA |
| Measurable Particle Size | 1 | 2.5 | 10 | μm |
| Particle Concentration Range | 0 | - | 1000 | μg/m³ |
| PM2.5 Concentration Measurement Accuracy | - | - |
±15 μg/m³ (0 - 100 μg/m³); ±15% of the reading (100 - 1000 μg/m³) |
- |
| Data Refresh Frequency | - | 1 | - | s |
| Power - on Stabilization Time | - | 60 | - | s |
| Response Time | - | 8 | - | s |
| Service Life | - | - | >5 | Y |
| Dimensions | - | 46.3×34.2×19 | - | mm |
| Operating Temperature | -20 | 25 | 75 | ℃ |
| Storage Temperature | -40 | 25 | 85 |
