YJJ AFM0200 Gas Micro Flow Thermal Type Sensor And Oxygen Air Flow Quality Sensor Is Used In Equipment Such As Wire Bonding Machines

Product Description:

YJJ AFM0200 Gas Micro-Flow Thermal Type Sensor And Oxygen Air Flow Quality Sensor Is Used In Equipment Such As Wire Bonding Machines

Features:

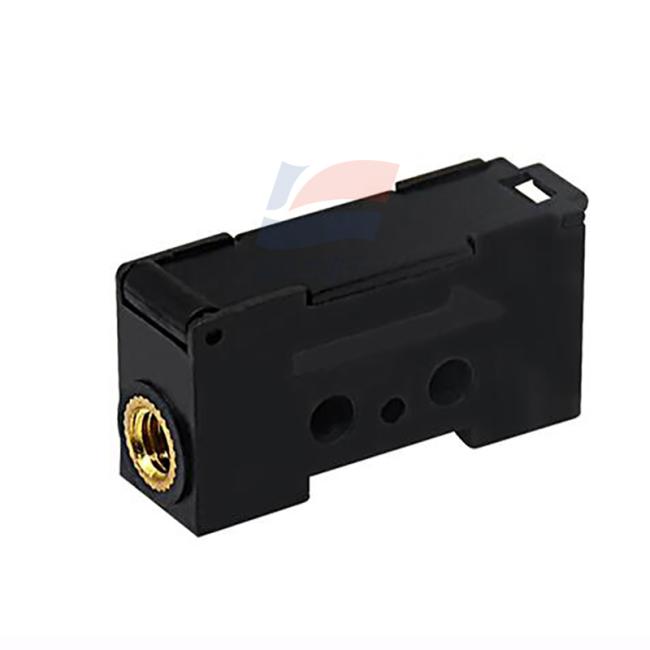

AFMO200 Micro Flow Sensor

Resistant to high and low temperatures, with good linearity, and fast response time

AFM0200 is a thermal mass flow sensor specifically developed for precise measurement of gas micro-flow. It calculates the mass flow of the measured gas by measuring the resistance change. The sensor uses an independently developed MEMS mass flow chip, featuring intuitive, precise, stable, resistance to high and low temperatures, good linearity, and fast response time. Moreover, AFM0200 is equipped with built-in temperature compensation, and has advantages such as high integration and high cost-effectiveness.

The product is small in size and suitable for various scenarios requiring the measurement of gas flow. The micro flow sensor has undergone strict factory calibration and directly outputs the detected flow, reducing the user's usage cost and the difficulty of secondary development.

AFM0200 has a wide range of application scenarios, applicable to the measurement and control of inhalation flow in gas detection instruments and air samplers; blow-off and cooling flow management in welding machines and other equipment; application scenarios such as adsorption and installation confirmation of micro electronic components and optical components.

Gas micro-flow sensor

Power supply: 12 - 24V

Measurement range: 0 - 500 mL/min -1~1, -3~3L/min

Accuracy: ±5% of full scale

Repeatability: ±3% of RD

Working pressure range: -100 to 200 kPa

Output mode: Analog signal 1 to 5V DC

Dimensions: 33.5 * 18.2 * 10.5 mm
