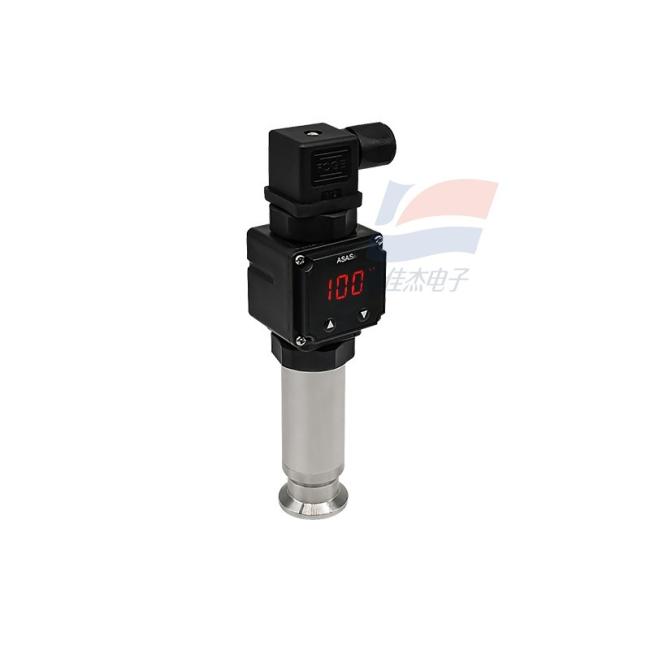

AGP11 MEMS Diffusion Silicon Stainless Steel Corrosion-resistant Pressure Resistance Vacuum Gauge High-precision Digital Vacuum Gauge

AGP11 MEMS Diffusion Silicon Stainless Steel Corrosion-resistant Pressure Resistance Vacuum Gauge High-precision Digital Vacuum Gauge

Product Overview:

The AGP11 series is a piezoresistive vacuum gauge. It adopts a high - precision and high - stability diffused silicon oil - filled sensor core, and an integrated module design of an electronic controller and a sensor. By utilizing the piezoresistive effect of semiconductor materials and good elastic deformation performance, and relying on exquisite packaging technology and a complete assembly process, the quality and performance of this product are ensured.

Key Features:

• High - precision vacuum measurement.
• Long - term stable and reliable performance.
• Excellent corrosion - resistance and wear - resistance.
• Fast response and no hysteresis.
• Unaffected by gas types.
• Provide analog voltage output, with the advantages of high precision, high stability, strong corrosion resistance, good repeatability, light weight, and low maintenance cost.

Technical Parameters:

• Measurement range: It provides two standard ranges, 0 - 100 Torr and 0 - 1000 Torr.
• Response time: Only 50ms.
• Output signal: Support 4 - 20mA current loop and 0 - 10V voltage signal output.
• Sensor core material: High - quality 316 stainless steel.
• Shell and interface: The surface of the shell and KF16 flange interface is electropolished, which improves the finish and further enhances the corrosion - resistance and wear - resistance.

Application Fields:

Suitable for medium and low vacuum degree measurement scenarios, such as vacuum baking, vacuum packaging, vacuum welding, vacuum coating, metal smelting, photovoltaic equipment and other industrial fields.
