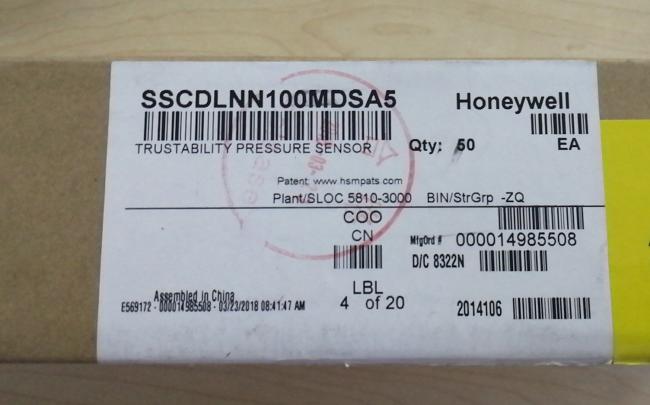

YJJ SSCDLNN100MDSA5 Fume Detector Temperature Pressure And Flow 10Kpa Pressure Sensor

Product Description:

YJJ SSCDLNN100MDSA5 Fume Detector Temperature Pressure And Flow 10Kpa Pressure Sensor

Features:

Product Type: Board Mount Pressure Sensors

Series: SSC 50

Subcategory: Sensors

Power supply voltage - maximum: 5 V

Trademark name: TruStability

DESCRIPTION

The TruStability Standard Accuracy Silicon Ceramic (SSC)

Series is a piezoresistive silicon pressure sensor offering a

digital output for reading pressure over the specified full scale

pressure span and temperature range.

The SSC Series is fully calibrated and temperature

compensated for sensor offset, sensitivity, temperature effects,

and non-linearity using an on-board Application Specific

Integrated Circuit (ASIC). Calibrated output values for pressure

are updated at approximately 2 kHz.

The SSC Series is calibrated over the temperature range of -20 C to 85 C [-4 F to 185 F]. The sensor is characterized

for operation from a single power supply of either 3.3 Vdc or

5.0 Vdc.

FEATURES

These sensors measure absolute, differential, and gage

pressures. The absolute versions have an internal vacuum

reference and an output value proportional to absolute

pressure. Differential versions allow application of pressure to

either side of the sensing diaphragm. Gage versions are

referenced to atmospheric pressure and provide an output

proportional to pressure variations from atmosphere.

The TruStability® pressure sensors are intended for use with

non-corrosive, non-ionic gases, such as air and other dry

gases. An available option extends the performance of these

sensors to non-corrosive, non-ionic liquids.

All products are designed and manufactured according to ISO

9001 standards.

Industry-leading long-term stability

Extremely tight accuracy of 0.25% FSS BFSL (Full Scale

Span Best Fit Straight Line)

Total error band of 2% full scale span maximum

Modular and flexible design offers customers a variety of

package styles and options, all with the same industry

leading performance specifications

Miniature 10 mm x 10 mm [0.39 in x 0.39 in] package

Low operating voltage

Extremely low power consumption

I

2C- or SPI- compatible 14-bit digital output (min. 12-bit

sensor resolution)

Precision ASIC conditioning and temperature compensated

over -20 C to 85 C [-4 F to 185 F] temperature range

RoHS compliant

Virtually insensitive to mounting orientation

Internal diagnostic functions increase system reliability

Also available with analog output

Absolute, differential, and gage types

Pressure ranges from 1 psi to 150 psi (60 mbar to 10 bar)

Custom calibration available

Various pressure port options

Liquid media option

POTENTIAL APPLICATIONS Medical:

- Airflow monitors

- Anesthesia machines

- Blood analysis machines

- Gas chromatography

- Gas flow instrumentation

- Kidney dialysis machines

- Oxygen concentrators

- Pneumatic controls

- Respiratory machines

- Sleep apnea equipment

Ventilators Industrial:

- Barometry

- Flow calibrators

- Gas chromatography

- Gas flow instrumentation

- HVAC - Life sciences

- Pneumatic controls

Specifications:
