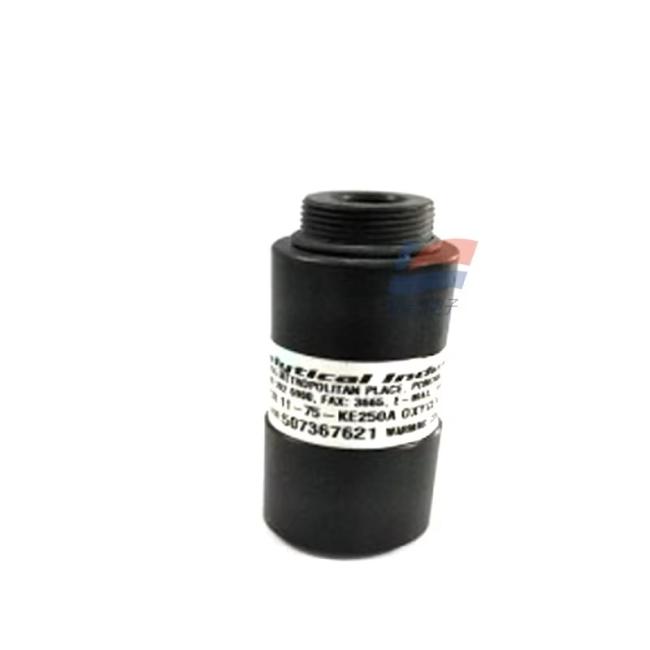

YJJ PSR-11-75-KE250A PSR 11-75-KE250A Oxygen Battery Newbang Oxygen Battery Is Used In Medical Breathing Equipment
Product Description:
YJJ PSR-11-75-KE250A PSR 11-75-KE250A Oxygen Battery Newbang Oxygen Battery Is Used In Medical Breathing Equipment
Features:
American 75-KE250A oxygen battery
Oxygen sensor parameters are as follows:
Applicable model: BLEASE anesthesia machine
Output: 11mV±2.5mV at a temperature of 25℃ and a pressure of 1013mbar environment
Operating temperature: 5~40℃
Maximum storage temperature: -15 ℃ to 50℃
Ideal storage temperature: 0℃ and below
Measuring range: 0~*
Zero voltage: 0.5mV
90% response time: 15S at 25℃
Linearity: Full load +/-2.0%
Stability: Under constant temperature, humidity and pressure, full load does not exceed 1%
Temperature compensation: not more than 3% at 15~50℃
Storage life: 3 years
Service life: 16-18 months
Humidity: 5% to 95% Relative humidity without condensation
Main application
Suitable for oxygen concentration detection in oxygen analyzers
Can be used in conjunction with devices such as BLEASE
Used in the medical field for gas concentration monitoring
Specifications:
| model | PSR-11-75-250A |
| Working life | For eight years |
| Signal output | 8.5-13.5mV |
| Accuracy of measurement | ±1% |
