ZP01-MP503 Air-Quality Detection Module For Air cleaner Fresh-air System Intelligent Integrated Ceiling
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
5-8 work days
Product Description

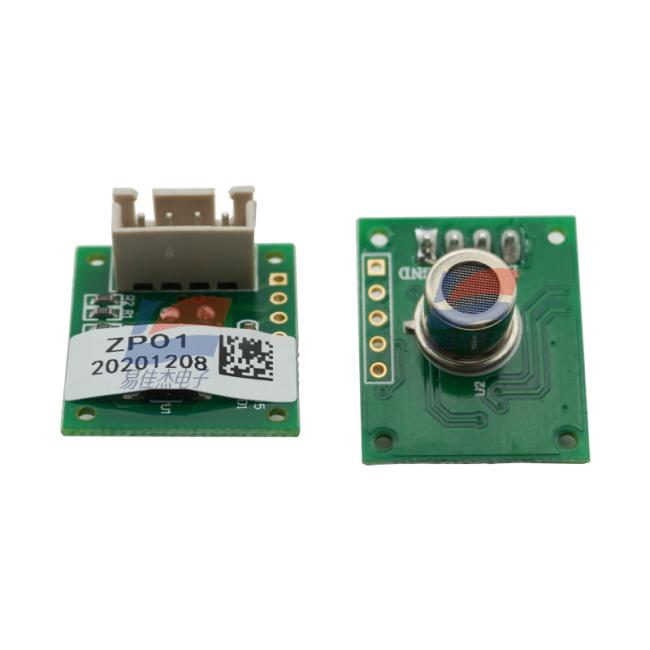

ZP01-MP503 Air-Quality Detection Module For Air cleaner Fresh-air System Intelligent Integrated Ceiling
Description:
ZP01-MP503 air-quality module adopts flat surface semiconductor gas sensor. The module has very high sensitivity to volatile organic gases such as formaldehyde, benzene, carbon monoxide, ammonia, hydrogen, alcohol and smoke of , essence &etc. The module has been aging, debugged, adjusted and calibrated. So it has good consistency and high sensitivity.
Application:
Air cleaner, fresh-air system, intelligent integrated ceiling, air quality monitor, ventilator, air-condition.
Features:
- High sensitivity and good long-term stability
- Calibrated before shipment
- 10 seconds to 3 minutes with auto-preheating function
- Faulty auto-check, low power consumption
- Long lifespan, high cost-effective
|
Parameter |
Value |
|---|---|
| Product Model | ZP01 - MP503 |
| Sensor Type | Flat - surface Semiconductor Gas Sensor |
| Target Gas | Formaldehyde, Benzene, Carbon Monoxide, Hydrogen, Alcohol, Ammonia, Smoke, Essence, etc. |
| Physical Interface | XH2.54 - 4P Terminal Socket |
| Output Data | 0 - 3 Grade Pollution Signal |
| Output Data Type | TTL Level Signal (with 200Ω Protective Resistance Inside) |
| Working Voltage | 5.0±0.2V DC (No Voltage Reverse - connection Protection) |
| Working Current | ≤60mA |
| Pre - heating Time | ≤3 Minutes |
| Response Time | ≤20 Seconds |
| Recovery Time | ≤60 Seconds |
| Working Temperature | 0 - 50℃ |
| Working Humidity | ≤95%RH |
| Storage Temperature | - 20 - 60℃ |
| Storage Humidity | ≤60%RH |
| Dimensions | 24×20×16mm (L×W×H) |
| Weight | ≤20g |
| Sensitivity Attenuation | ≤1%/Year |
