Product Description:

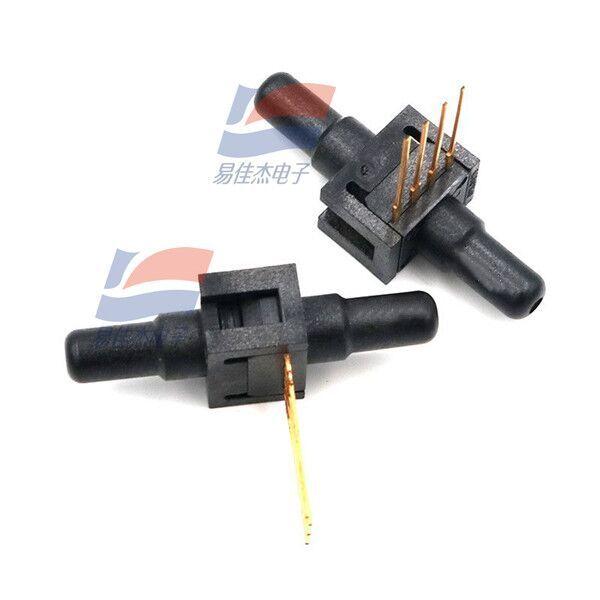

YJJ 24PCFFA6D 24PC Series 100PSI Medical Differential Pressure Pressure Sensor

Features:

Detailed parameter description of the 24PCFFA6D pressure sensor:

1. Basic Parameters

Brand: -

Pressure Type: Differential

Range: 0 - 100 psi (approximately 6.9 bar)

Accuracy: ±0.2% of Full Scale (FS)

Output Signal: 156 - 294 mV (non-amplified analog output)

Power Supply Voltage: 10 V DC (allowable range 10 ± 0.01 VDC)

Medium Compatibility: Non-corrosive gases/liquids such as nitrogen, oxygen, water, etc.

2. Performance Indicators

Zero Point Offset: -30 to +30 mV (typical value 0 mV)

Linearity: ±0.25% FS (optimal fitting straight line)

Repeatability & Hysteresis: ±0.15% FS

Response Time: 1 ms

Temperature Drift:

Zero Point Drift: ±2.0 mV (0 - 50℃)

Sensitivity Drift: ±5.0% FS (25 - 50℃)

Long-Term Stability: ±0.5% FS per year

3. Environmental Adaptability

Operating Temperature: -40 to +85℃

Storage Temperature: -55 to +100℃

Protection Grade: Not explicitly stated, but meets industrial-level sealing requirements

4. Physical Characteristics

Electrical Connection: Wire Leads

Weight: Approximately 2 g

Certification: Passed vibration (20g, 0 - 2kHz) and shock (150g) tests

5. Application Scenarios

Industrial process control (such as pneumatic system pressure monitoring)

Medical equipment (requires compatibility with medium verification)
