YJJ MPX5010DP Integrated Silicon Pressure Sensors Are Used in HVAC Field of Medical Devices

Product Description:

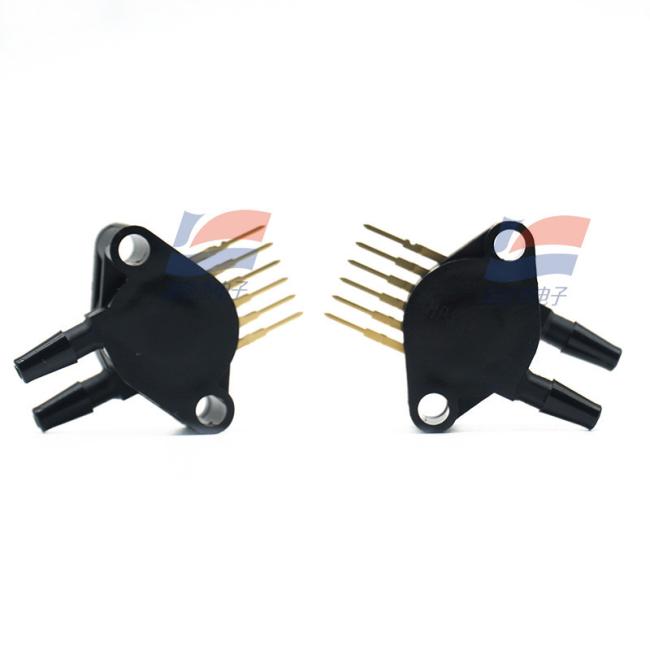

YJJ MPX5010DP Integrated Silicon Pressure Sensors Are Used in HVAC Field of Medical Devices

Features:

Integrated silicon pressure sensor, on-chip signal conditioning, temperature compensation and calibration

I. Basic Description
The MPxx5010 series piezoresistive sensors are advanced single-chip silicon pressure sensors, specially designed for a wide range of application scenarios, particularly suitable for microcontroller or microprocessor systems equipped with A/D input. This sensor combines advanced micro-machining technology, thin-film metallization process, and bipolar processing technology, providing an accurate high-level analog output signal proportional to the applied pressure. Its axial ports have been improved to be compatible with industrial-grade pipelines.

II. Characteristics
Within the temperature range of 0°C to 85°C, the maximum error is 5.0%.
It is highly suitable for systems based on microprocessors or microcontrollers.
It uses durable epoxy resin monomers and thermoplastic (PPS) surface mount packaging.
Temperature compensation has been carried out within the temperature range of -40°C to +125°C.
It adopts a patented silicon shear stress strain gauge.
It offers differential and gauge pressure configuration options.
It provides surface mount (SMT) or through-hole (DIP) packaging configurations.
III. Application
Hospital beds
HVAC (Heating, Ventilation, and Air Conditioning) system
Respiratory system equipment
Process control field
Washing machine water level measurement (refer to AN1950 application note)
Especially suitable for systems based on microprocessors or microcontrollers
Household liquid and pressure measurement

Part no. Flow range
(full scale)
Max. flow
change4
Output voltage
@ trim poin
AWM42150VH ±25 sccm 5.0 l/sec 8.5 ±1.5 mV @ 25 sccm
AWM42300V ±1000 sccm 5.0 l/sec 54.7 ±3.7 mV @ 1000 sccm
PERFORMANCE CHARACTERISTICS
VS = 10 ±0.01 V, TA = 25°C

Specifications:
