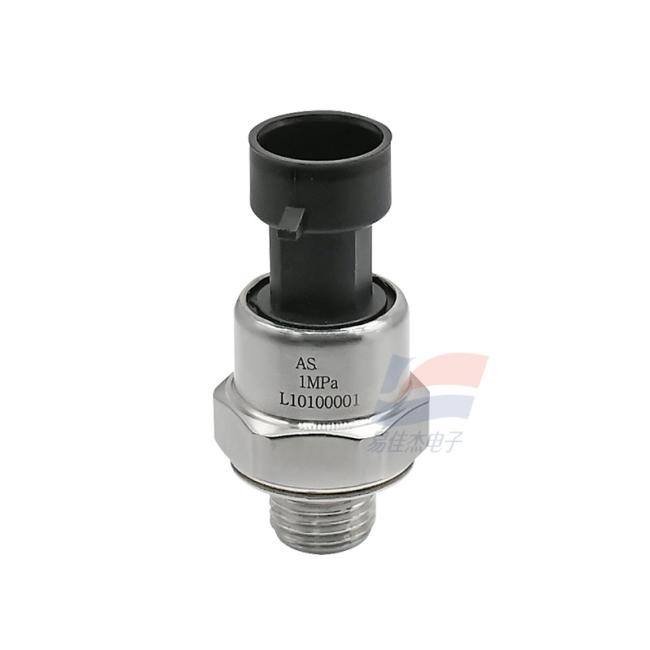

ACP35 Series High Temperature Resistant High-Precision Pressure Transmitter Hydraulic Oil Pressure Pneumatic Pressure Sensor

Applications:

The ACP35 series is widely used in industrial pressure monitoring scenarios, including:

• Pressure detection of oil, water, and gas pipelines (compatible with stainless steel-compatible media);
• Pressure control in pneumatic/hydraulic systems (e.g., mechanical equipment, automation production lines);
• Pressure monitoring in general industrial process links (suitable for environments with temperature fluctuations between -40°C and +135°C).

Features:

1. Flexible Power Supply

Supports dual power/output configurations (4~20mA/10~32VDC or 0.5~4.5VDC/5.0±0.5VDC) to adapt to different industrial control systems.

2. Reliable Protection & Durability
   • Built-in short-circuit protection and reverse polarity protection to avoid damage from electrical faults;
   • High overload/burst capacity (up to 3X/5X of full scale) and SUS304/17-4PH stainless steel wetted parts ensure stability in harsh working conditions.
3. High Performance
   • Fast response time (≤10ms) and 1ms sampling rate for real-time pressure monitoring;
   • ≤14-bit resolution ensures precise measurement data output.
4. Wide Environmental Adaptability
   • Operates stably in a temperature range of -40°C to +135°C, with a total error band of only +2.0%F.S. in variable temperatures (-20°C~+85°C).
5. Compact & Lightweight

The standard version weighs only ~50g, making it easy to install in space-constrained equipment.
