Product Description

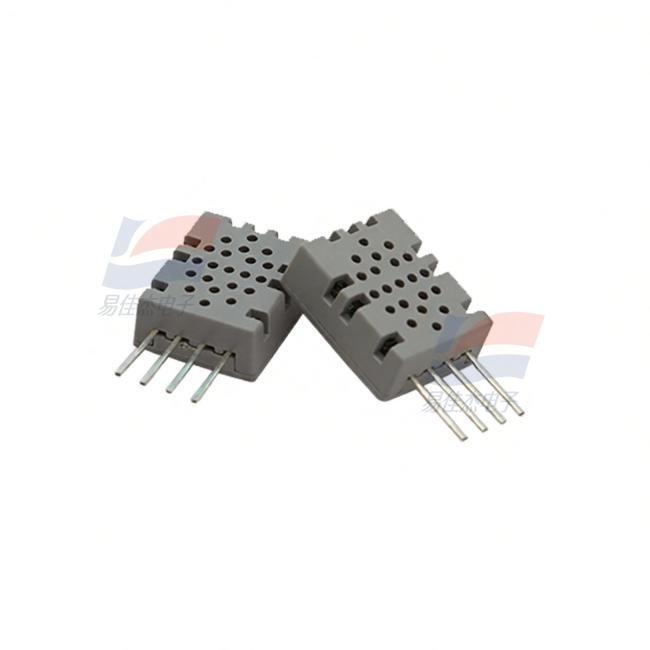

ZS0301 ZS0501 Single Bus Digital Temperature and Humidity Sensor Temperature and Humidity Module Indoor Environment Temperature and Humidity Monitoring Probe
Product Features :
- Dual sensing core: Polymer humidity sensor + NTC temperature sensor for stable and accurate readings.
- Digital output: Pre‑calibrated 16‑bit data (40‑bit total frame) with 0.1 %RH / 0.1 °C resolution.
- Flexible communication: ZS0501 adds I2C mode for easier microcontroller integration (Arduino/ESP32).
- Low power: ZS0501’s ≤ 30 μA static current suits battery‑powered devices.
- Fast response: ≤ 30 s (humidity) and ≤ 10 s (temperature) for real‑time monitoring.
- Compact size: 19×15×6 mm for seamless integration into small devices.
- 1‑Wire compatibility: ZS0501’s 1‑Wire mode works with ZS0301 code for drop‑in upgrades.
Applications :
- Smart home: Indoor climate control, HVAC systems, dehumidifiers, and air purifiers.
- Industrial monitoring: Warehouse storage, pharmaceutical/electronic production lines, and greenhouses.
- Consumer electronics: Humidifiers, air conditioners, and smart thermostats.
- IoT devices: Data loggers, weather stations, and remote monitoring via Wi‑Fi/Bluetooth.
- Appliances: Refrigerators, wine cabinets, and baby incubators.
- HVAC/R: Duct temperature‑humidity monitoring and energy‑saving control systems.
|
Parameter |
ZS0301 |
ZS0501 |
|---|---|---|
| Model | ZS0301 | ZS0501 |
| Detection Principle | Polymer humidity sensor + NTC temperature sensor | Polymer humidity sensor + NTC temperature sensor |
| Communication Interface | Single‑wire (1‑Wire) | Single‑wire (1‑Wire) / I2C (selectable) |
| Operating Voltage | 3.3–5.5 V DC | 2.7–5.5 V DC |
| Humidity Measuring Range | 20–90 %RH | 20–90 %RH |
| Humidity Accuracy | ±5 %RH (25°C, 60 %RH) | ±5 %RH (25°C, 60 %RH) |
| Humidity Resolution | 0.1 %RH | 0.1 %RH |
| Temperature Measuring Range | -20–60 °C | -20–60 °C |
| Temperature Accuracy | ±1 °C (25°C, 60 %RH) | ±1 °C (25°C, 60 %RH) |
| Temperature Resolution | 0.1 °C | 0.1 °C |
| Response Time (Humidity) | ≤ 30 s (25°C, 60→90 %RH step) | ≤ 30 s (25°C, 60→90 %RH step) |
| Response Time (Temperature) | ≤ 10 s | ≤ 10 s |
| Static Current | ≤ 50 μA | ≤ 30 μA |
| Communication Time | ~4 ms | ~4 ms (1‑Wire); ~2 ms (I2C) |
| Operating Temperature | -20–60 °C | -20–60 °C |
| Operating Humidity | 20–90 %RH (non‑condensation) | 20–90 %RH (non‑condensation) |
| Pinout | 4‑pin SIP | 4‑pin SIP |
| Dimensions | 19×15×6 mm | 19×15×6 mm |
| Lifespan | ≥ 2 years | ≥ 3 years |
