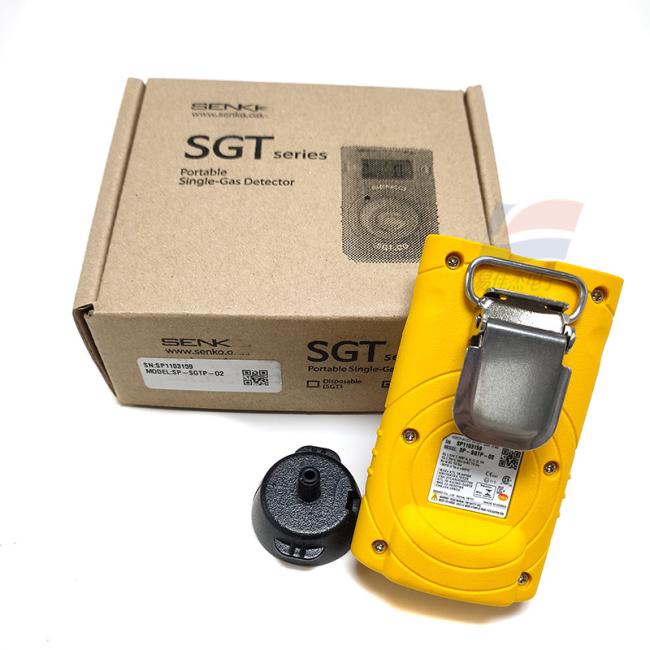

SP-SGTP-O2 Portable Oxygen Detector Is Designed for Real-time Monitoring of Ambient Oxygen Levels

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: 3-5work days
Product Description



              SP-SGTP-O2 Portable Oxygen Detector Is Designed for Real-time Monitoring of Ambient Oxygen Levels







Key Features:


  1. Replaceable sensor and battery for cost-effective long-term use.
  2. Triple alarms: Audible (90dB at 10cm), vibrating, and red LED flashing for multi - scenario alerts.
  3. Event logging: Stores up to 30 recent alarm events for traceability.
  4. IR Link connectivity for easy configuration and data download.
  5. Automatic sensor fault detection ensures operational stability.
  6. Simple calibration via dedicated docking station; multi-docking station supports batch testing and calibration.

Product Applications:


  1. Confined Spaces: Tanks, silos, manholes, and underground vaults to prevent oxygen deficiency.
  2. Mining & Construction: Tunnel excavation and underground work sites where oxygen levels may drop.
  3. Marine & Offshore: Ship holds, cargo tanks, and offshore platforms for crew safety.
  4. Chemical & Pharmaceutical: Production areas with inert gas usage (e.g., nitrogen blanketing).
  5. Metal Fabrication: Welding and cutting operations with potential oxygen displacement.
  6. Emergency Response: Hazmat teams and rescue units for on-site oxygen level assessment.



Model SP-SGTP-O2
Gas Detected Oxygen
Measurement Range 0-30% Vol
Sensor Type Electrochemical
Detection Method Diffusion (Optional: Sampling Type with SP-Pump 101)
Resolution 0.1% Vol
Alarm Settings Low alarm: 19.5% Vol, High alarm: 23.5% Vol (factory default, configurable via IR Link)
Display LCD with backlight
Power Supply 3.6V Lithium battery (SB-AA02 (P)), 1.2Ah
Operating Temperature -35°C to +50°C
Operating Humidity 5% - 95% RH (non-condensing)
Dimensions 54mm (W) × 91mm (H) × 32mm (D)
Weight 93g (including battery and clip)
Protection Rating IP67
