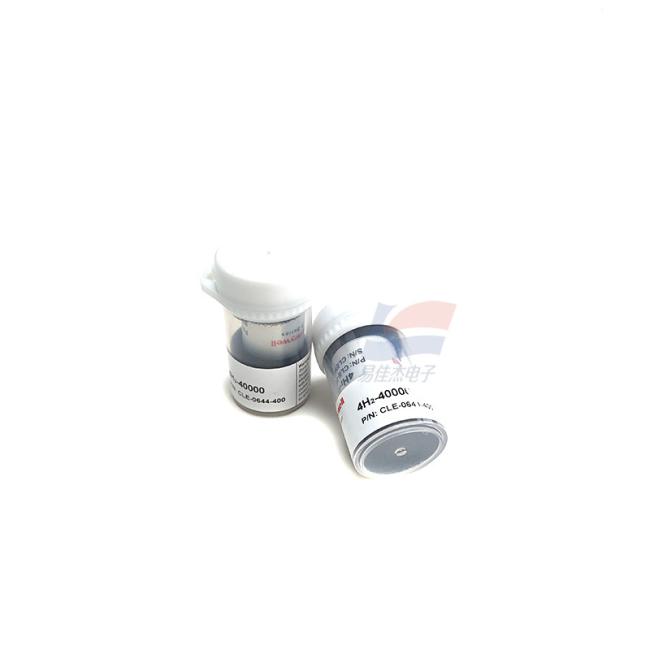

4H2-40000 CLE-0644-400 Electrochemical Hydrogen Gas Sensor for Hydrogen Fuel Cell Systems Industrial Safety

Name: 4H2-40000 CLE-0644-400 Electrochemical Hydrogen Gas Sensor for Hydrogen Fuel Cell Systems Industrial Safety
Brand: ShenzhenYijiajie Electronic Co., Ltd.

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: 3-5work days

Product Description

4H2-40000 CLE-0644-400 Electrochemical Hydrogen Gas Sensor for Hydrogen Fuel Cell Systems Industrial Safety

Applications:

Hydrogen fuel cell systems: Monitoring hydrogen leakage in fuel cell vehicles and stationary power systems.
Industrial safety: Detecting H2 leaks in chemical plants, refineries, and hydrogen storage facilities.
Confined space monitoring: Ensuring safe H2 levels in enclosed work areas.
Portable gas detectors: Integration into handheld devices for on-site safety inspections.

Key Features:

High range detection: 0–40,000 ppm (0–100% LEL) for comprehensive hydrogen monitoring.
High sensitivity: 0.007 ± 0.002 μA/ppm for precise low-level detection.
Fast response: T90 response time ≤ 60 seconds for timely leak alerts.
Stable performance: Low baseline drift (0–20 ppm equivalent from -20°C to 50°C) and long-term output drift < 2% signal/month.
Standard form factor: Compatible with standard 4-series sensor sockets for easy replacement.

Target Gas	Hydrogen (H2)
Detection Range	0–40,000 ppm (0–100% LEL)
Sensitivity	0.007 ± 0.002 μA/ppm (at 20°C)
Baseline (20°C)	< ±0.2 μA
Baseline Drift	0–20 ppm equivalent (-20°C to 50°C)
Resolution	80 ppm
Response Time (T90)	≤ 60 seconds
Long-term Output Drift	< 2% signal/month
Operating Temperature	-20°C to 50°C
Operating Humidity	15–90% RH (non-condensing)
Pressure Range	91–111 kPa
Bias Voltage	0 mV
Storage Life	6 months in sealed container
Operating Life	2 years in clean air
Weight	~5 g
Dimensions	Ø20.2 × 16.6 mm (standard 4-series form factor)
