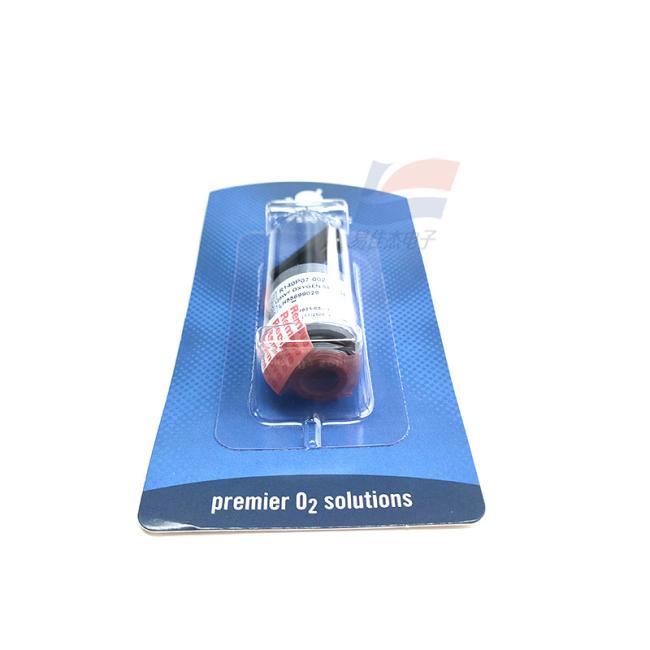

MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors
Price:
Negotiable
MOQ:
1
Delivery Time:
3-5work days
Product Description
MAX-125WF Medical Oxygen Sensor for Medical Oxygen Concentrators Medical Gas Analyzers and Oxygen Detectors
Applications :
Medical devices:
Anesthesia machines
Oxygen concentrators
Ventilators
Patient monitors
Industrial safety:
Oxygen deficiency monitors
Breathing apparatus
Glove boxes & inert gas systems
Environmental & lab:
Air quality testing
Incubators
Fermentation monitoring
|
Parameter |
Specification |
Unit |
Test Condition |
|---|---|---|---|
| Detection Gas | Oxygen (O2) | - | Medical grade gas mixture |
| Measurement Range | 0 ~ 100 | % Vol | Standard atmospheric pressure |
| Output Signal | Linear analog output (current/voltage) | mA/mV | 25°C, 1atm |
| Accuracy | ±1.0 | % Vol | At 21% O2, 25°C |
| Response Time (T90) | ≤10 | s | Standard test conditions |
| Zero Drift | ≤±0.5 | % Vol/year | Long-term operation |
| Sensitivity Drift | ≤±1.0 | % Vol/year | Long-term operation |
| Operating Temperature | 5 ~ 45 | °C | Full measurement range |
| Operating Humidity | 15 ~ 90 | % RH | Non-condensing |
| Operating Pressure | 86 ~ 106 | kPa | Standard atmospheric pressure |
| Storage Temperature | 0 ~ 30 | °C | Sealed packaging |
| Expected Lifetime | ≥2 | years | Continuous operation at 25°C |
| Output Load Resistance | Customizable | Ω | Matching equipment requirements |
| Gas Flow Rate | 50 ~ 500 | sccm | Optimal detection flow |
