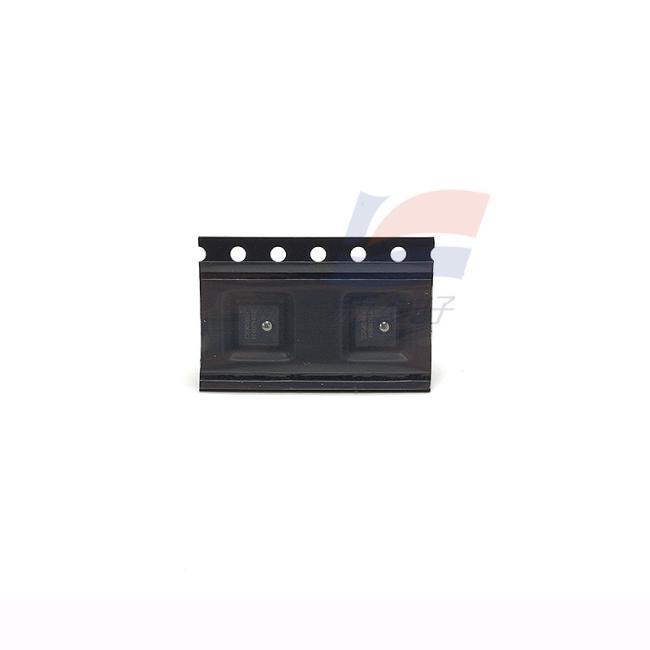

FMAMSDXX015WC2C3 MicroForce Piezoresistive Force Sensor for Infusion/ambulatory Pumps Internal Feeding Pumps
FMAMSDXX015WC2C3 MicroForce Piezoresistive Force Sensor for Infusion/ambulatory Pumps Internal Feeding Pumps
Key Features:
Fully calibrated & temperature compensated via on‑board ASIC
Compensated for offset, sensitivity, temperature drift & nonlinearity
Built‑in short/open diagnostics
Overforce capability:3× full scale
Small form factor, stable sphere interface
Low power:Typ. 14 mW @ 3.3 V
Enhanced repeatability & reliability
Applications:
Medical:Infusion pumps, enteral feeding, dialysis, surgical robotics
Industrial:Force/grip sensing, load detection, touch panels, thread tension monitoring
Others:Smart vending, precision weighing, high‑end appliances
|
Parameter |
Min |
Typ |
Max |
Unit |
Test Condition |
|---|---|---|---|---|---|
| Full-Scale Force Range | 0 | - | 15 | N | Compression only |
| Force Range (kgf) | - | 1.5 | 1.53 | kg | Equivalent force |
| Non-linearity Tolerance | - | - | 2 | %FS | Calibrated range |
| Supply Voltage | 3.0 | 3.3 | 3.6 | V DC | ±10% tolerance |
| Power Consumption | - | 14 | - | mW | Operating state |
| Output Interface | - | I²C | - | - | Digital, Address: 0x28 |
| Transfer Function | 20 | - | 80 | % | Core sensing range |
| Operating Temperature | -40 | - | +85 | °C | Full range |
| Calibrated Temp Range | 5 | - | 50 | °C | Factory compensation |
| Storage Temperature | -40 | - | +85 | °C | Sealed packaging |
