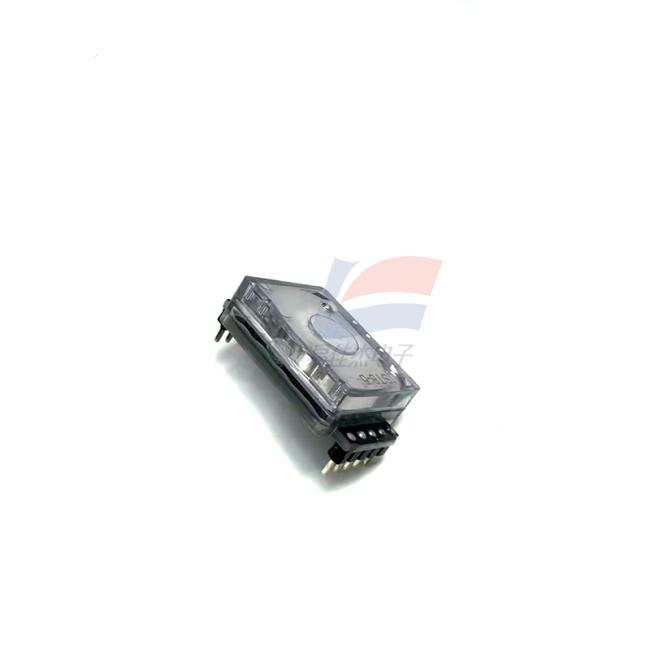

G8C-T 5000 NDIR (Non-Dispersive Infrared) CO2 Gas Sensor Module for Indoor Air Quality (IAQ) Monitors
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
5-8 work days
Product Description
G8C-T 5000 NDIR (Non-Dispersive Infrared) CO2 Gas Sensor Module for Indoor Air Quality (IAQ) Monitors
Key Features:
- High-precision NDIR technology: Single-channel infrared optical design, good long-term stability.
- Dual calibration modes: Automatic (PAC) periodic calibration & Manual (MCAL) calibration.
- Multiple digital outputs: Standard UART (TTL) and industrial Modbus-RTU for easy integration.
- Low power consumption: Ideal for battery-powered and portable devices.
- Compact size: Small form factor for embedded applications.
- Excellent stability: Built-in temperature compensation, low drift.
Typical Applications:
- Indoor Air Quality (IAQ) monitors
- HVAC & Fresh Air Ventilation Systems
- Greenhouse / Agricultural CO2 control
- Industrial Process Monitoring
- Automotive Cabin Air Quality
- Smart Home & Building Automation
| Target Gas | Carbon Dioxide (CO2) |
| Measuring Range | 0 ~ 5000 ppm |
| Detection Principle | Non-dispersive infrared (NDIR) absorption |
| Accuracy | ± (50 ppm + 5% of reading) @ 25°C |
| Resolution | 1 ppm |
| Response Time (T90) | < 120 seconds (free diffusion) |
| Warm-up Time | 8 sec (initial output); 3 min (stable reading) |
| Operating Voltage | DC 4.5 ~ 5.25 V |
| Power Consumption | Peak: 300 mA; Average: < 30 mA |
| Operating Temp. | 0 ~ +50°C |
| Operating Humidity | 0 ~ 95% RH (non-condensing) |
| Storage Temp. | -40 ~ +70°C |
| Output Interface | UART (TTL), Modbus-RTU, PWM |
| Calibration | Automatic Background Calibration (ABC), Manual Calibration |
| Lifespan | > 5 years (typical) |
