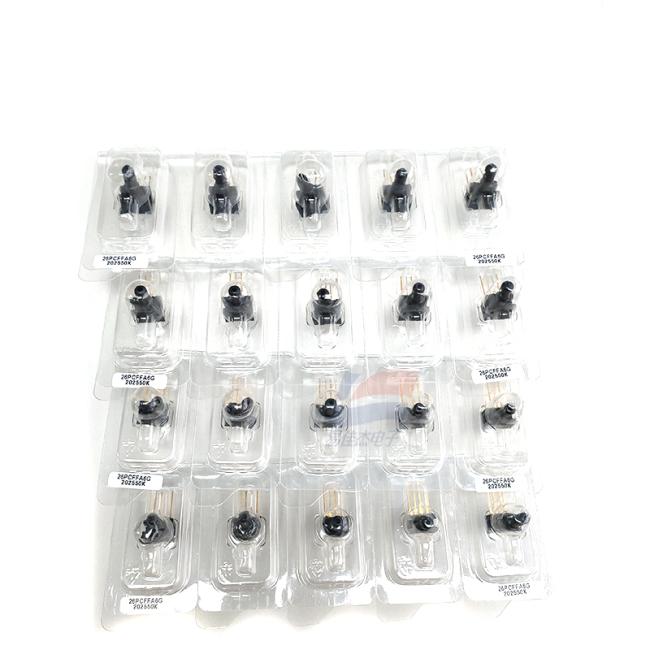

Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure
Price:
Negotiable
MOQ:
1
Delivery Time:
3-5work days
Product Description
Pressure Sensors 26PCFFA6G for Espiratory Devices Medical Gas Pressure Monitoring Air Duct Pressure
Features:
- High precision piezoresistive gauge pressure sensor with stable performance.
- Temperature compensated design, minimizes temperature drift error.
- Unamplified low-level voltage output for high-resolution detection.
- Wide operating temperature range (-40℃ ~ +85℃), suitable for harsh environments.
- Compact SIP-4 through-hole package, easy for PCB installation.
- Compatible with dry gas and non-corrosive liquid media.
- Fast response time within 1 ms for real-time pressure monitoring.
Applications:
- Medical Equipment: Respiratory devices, medical gas pressure monitoring.
- Industrial Automation: Pneumatic and hydraulic system pressure detection.
- HVAC System: Air duct pressure and fluid pipeline monitoring.
- Instrumentation: Portable pressure calibrators and testing equipment.
- General Industry: Nitrogen, oxygen and other inert gas pressure measurement.
| Sensor Model | 26PCFFA6G |
| Pressure Type | Gauge Pressure |
| Detection Range | 0 ~ 100 PSI |
| Maximum Overload Pressure | 200 PSI |
| Supply Voltage | 10 VDC (Typical) |
| Output Voltage | 0 ~ 100 mV |
| Response Time | ≤ 1 ms |
| Media Type | Dry Gas & Non-corrosive Liquid |
| Working Temperature | -40 ℃ ~ +85 ℃ |
| Package Type | SIP-4 Through-hole |
| Pressure Port | Single Axial Barbless Port |
| Characteristic | Temperature Compensated, Unamplified |
