SME100 SMC100 New-generation Miniature Industrial Intelligent Gas Sensor for Industrial Safety Early Warning
Price:
Negotiable
MOQ:
1
Delivery Time:
3-5work days
Product Description
SME100 SMC100 New-generation Miniature Industrial Intelligent Gas Sensor for Industrial Safety Early Warning
Product Purpose:

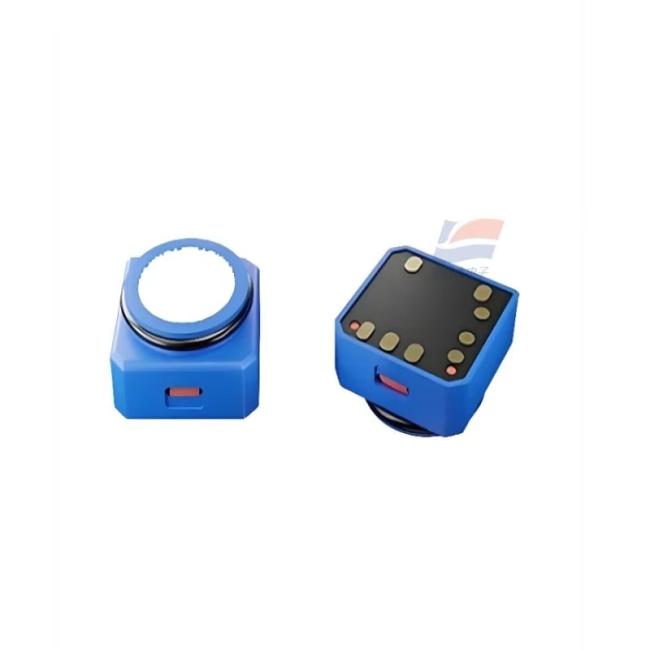

The SMX100 is a new-generation miniature industrial intelligent gas sensor . Adopting optimized flat structural design and mature chip sensing technology, it supports detection of multiple gases including carbon monoxide, hydrogen sulfide, oxygen and methane. With built-in intelligent compensation algorithm, self-diagnosis function and factory pre-calibration, it features digital output and multi-mode working switching. It is widely applied in industrial portable gas detectors, wearable safety terminals, metallurgy and petrochemical monitoring, coal mine safety detection, urban pipe gallery, park warehousing, low-altitude aircraft and humanoid robot gas safety monitoring scenarios, providing accurate, stable and low-power gas concentration detection data for industrial safety early warning and intelligent monitoring systems.
Product Core Features:
- Ultra-Miniature Flat Design: Adopts innovative flat gas chamber structure with compact size of 20×20×10.35mm (1cm thickness). It realizes lightweight equipment integration, perfectly fitting portable, wearable and miniaturized industrial detection terminals.
- Factory Pre-Calibrated & Plug-and-Play: Completed standard gas calibration before delivery, no on-site secondary calibration required. It effectively reduces user debugging costs and improves product development efficiency.
- Intelligent Algorithm Compensation: Built-in professional temperature and humidity compensation algorithm, which automatically corrects detection data under variable temperature and humidity environments, ensuring stable and accurate output in complex industrial working conditions.
- Real-Time Fault Self-Diagnosis: Supports intelligent self-diagnosis function. It can actively identify sensor faults and abnormal disconnection, and output fault flag bits through serial port, greatly improving system operation reliability and later maintenance efficiency.
- Multi-Working Modes & Low Power Consumption: Supports freely switchable sleep mode and normal working mode via chip selection pin. Ultra-low operating current effectively reduces overall system power consumption, suitable for battery-powered long-term standby equipment.
- Contact Installation & Easy Integration: Adopts innovative contact installation method without PCB drilling or welding. It supports quick assembly and replacement, featuring simple structure and strong compatibility for rapid secondary development.
- Standard Digital Output: Equipped with universal UART digital signal output, with simple and stable communication protocol, compatible with mainstream MCUs and intelligent industrial control systems.
- Multi-Gas Detection & Wide Applicability: Covers detection of conventional industrial gases such as CO, H2S, O2 and CH4, meeting gas safety monitoring demands of most industrial scenarios with excellent environmental adaptability.
|
Detectable Gas Types
|
Carbon Monoxide (CO), Hydrogen Sulfide (H2S), Oxygen (O2), Methane (CH4)
|
|
Detection Principle
|
Electrochemical / Catalytic Combustion Principle (by gas type)
|
|
Working Voltage
|
DC 3.0V ~ 5.0V
|
|
Working Current
|
≤10mA (Electrochemical type); ≤110mA (Catalytic type)
|
|
Output Signal
|
Standard UART Digital Output
|
|
Working Temperature (Continuous)
|
-20℃ ~ 40℃
|
|
Working Temperature (Intermittent)
|
-40℃ ~ 60℃
|
|
Working Humidity Range
|
15%RH ~ 90%RH (Non-condensing)
|
|
Storage Temperature
|
10℃ ~ 30℃
|
|
Dimension
|
20mm × 20mm × 10.35mm
|
|
Installation Method
|
Contact type installation, no welding or drilling required
|
|
Intelligent Functions
|
Temperature & humidity compensation, fault self-diagnosis, multi working modes, factory pre-calibration
|
|
Service Life
|
Up to 5 years (in air environment)
|
|
Applicable Scenarios
|
Industrial portable detectors, wearable safety devices, metallurgy, petrochemical, coal mine, urban pipe gallery, warehousing, low-altitude aircraft, humanoid robot gas safety monitoring
|
