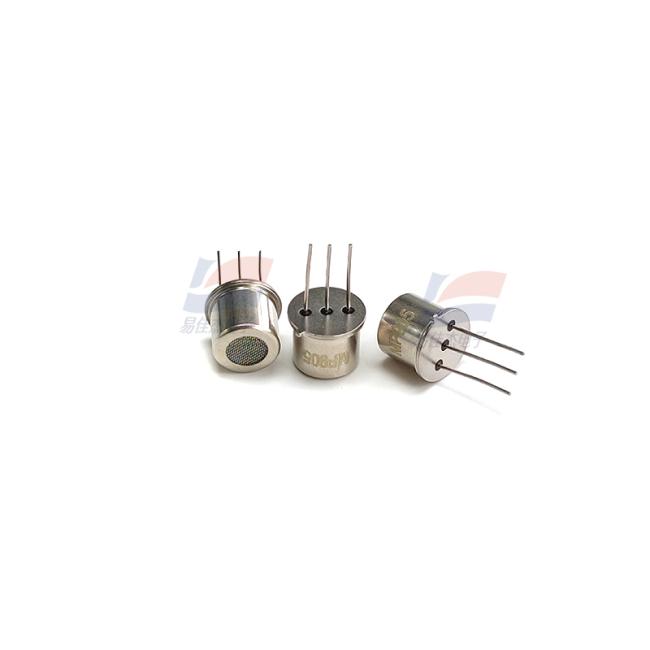

YJJ MP905 Semiconductor VOC / Air Quality Sensor Household Appliances and IoT Devices

Product Description:

YJJ MP905 Semiconductor VOC / Air Quality Sensor Household Appliances and IoT Devices

Features:

I. Core Parameters (Official Winsen)

Model: MP905

Type: Planar Semiconductor Gas Sensor (MOx)

Package: Metal Cap Package (4 pins)

Detected Gases: Formaldehyde, Benzene,  Alcohol, Smoke, Lighter Gas, Paint Volatile Organic Compounds (Broad-spectrum VOC)

Detection Range: 0.5 - 1000 ppm (Alcohol)

Sensitivity: Highly sensitive to low-concentration VOCs / Formaldehyde / Benzene compounds

Electrical Parameters

Loop Voltage VC: 5.0 V ± 0.1 V DC

Heating Voltage VH: 5.0 V ± 0.1 V DC

Heating Resistor RH: 95 Ω ± 10 Ω (Room Temperature)

Heating Power Consumption PH: ≤ 300 mW

Load Resistor RL: Adjustable externally

Performance Indicators

Response Time T90: ≤ 20 s

Recovery Time: ≤ 60 s

Operating Temperature: 0 - 50℃

Operating Humidity: ≤ 95% RH (No Condensation)

Life Span: ≥ 5 Years (Typical)

II. Working Principle

The ceramic substrate (Al₂O₃) integrates a heater + metal oxide gas-sensitive layer.

When encountering reducing gases (VOC, Formaldehyde, Benzene, Smoke), the electrical conductivity increases with the concentration.

An external simple circuit can convert the resistance change into a voltage signal to reflect the gas concentration.

III. Main Applications (Very Common)

Indoor Air Quality (IAQ) Monitoring

Air Purifiers, Fresh Air Systems, Smart Air Conditioners (Automatic Speed Control / Start/Stop)

Bedrooms, Baby Rooms, Offices: Warning for Formaldehyde, Benzene, TVOC, Smoke

Kitchen / Bathroom Smart Control

Smoke Detection with: Automatic start when VOC / Formaldehyde exceeds the limit

Bathroom: Monitoring of (VOC), Automatic Exhaust Ventilation

Smart Home and IoT

Home Air Quality Detectors, Portable Pens, IoT Nodes

Simple Screening of Formaldehyde / Benzene Pollution in Newly Built Houses

Industrial and Commercial

Small Workshops, Warehouses: Painting, Printing, Solvent Volatilization Monitoring

Shopping Malls, Conference Rooms: Monitoring of and Harmful Gases
