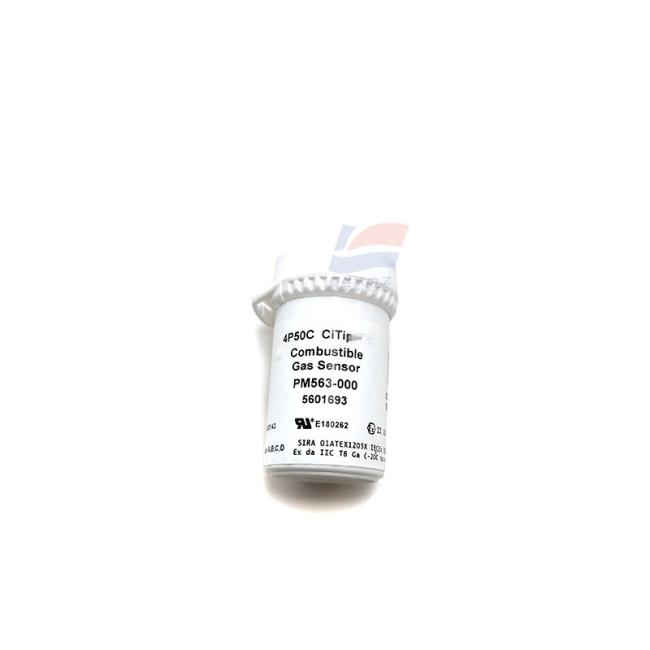

4P50C Part Number: PM563-000 Oxidation Combustible Gas Sensor Developed for Industrial Hazardous Area Gas Detection
Price:
Negotiable
MOQ:
1
Delivery Time:
3-5work days
Product Description
4P50C Part Number: PM563-000 Oxidation Combustible Gas Sensor Developed for Industrial Hazardous Area Gas Detection
Product Features:
- Professional Sensing Performance: Adopts catalytic oxidation working principle, with linear detection up to 3% methane concentration, stable signal output and high detection accuracy, supporting 1% LEL high resolution measurement.
- Fast Response Speed: The T90 response time for methane is less than 20 seconds, enabling rapid real-time feedback of combustible gas concentration changes to ensure timely early warning of gas leakage risks.
- Wide Environmental Adaptability: Supports normal operation in a wide temperature range of -20°C to +55°C and 0-90% non-condensing relative humidity environment, adapting to harsh industrial working conditions.
- Low Drift & Long Service Life: Ultra-low long-term signal drift (less than 5% signal/month span drift, less than 5% LEL/month zero drift), with stable long-term operation performance and low maintenance frequency.
- Durable Mechanical Structure: Adopts 316 stainless steel shell and gold-plated brass pins, with reliable corrosion resistance and structural stability, suitable for long-term industrial field application.
Product Applications:
The 4P50C combustible gas sensor is mainly used for quantitative detection and safety monitoring of common combustible gases and vapors, including methane, ethane, propane, butane, pentane, hexane, carbon monoxide, hydrogen and other combustible gases. It is widely applied in the following scenarios:
- Petroleum, chemical, natural gas and coal mine industries: Real-time monitoring of flammable gas leakage in production, storage and transportation links.
- Industrial factory environments: Safety detection of combustible gas concentration in pharmaceutical, coating, printing and other workshops with flammable and explosive risks.
- Commercial and public safety fields: Gas leakage monitoring in gas stations, boiler rooms, underground pipe corridors and confined spaces.
- Gas detection equipment manufacturing: Core sensing component for fixed industrial gas detectors, portable flammable gas analyzers and safety alarm systems.
| Performance Parameters | Working Principle | Catalytic Oxidation |
| Detection Range | 0-100% LEL | |
| Sensitivity (Methane) | 37 ± 7 mV/%methane | |
| T90 Response Time (Methane) | <20 s | |
| Resolution | 1% LEL | |
| Electrical Parameters | Operating Voltage | 4.25 ± 0.02 VDC |
| Operating Current | 56 ± 6 mA | |
| Maximum Power Consumption | 276 mW | |
| Environmental Parameters | Operating Temperature Range | -20°C ~ +55°C |
|
Operating Humidity Range
|
0-90% RH (Non-condensing) | |
| Operating Pressure Range | 1 atm ± 20% | |
| Storage Temperature | 0°C ~ 20°C | |
| Mechanical Parameters | Shell Material | 316 Stainless Steel |
| Pin Material | Gold-plated Brass | |
| Nominal Weight | 24 g | |
| Lifetime & Drift Parameters | Long-term Span Drift | <5% signal/month |
| Long-term Zero Drift | <5% LEL methane/month | |
| Shelf Life (Sealed) | 6 months |
