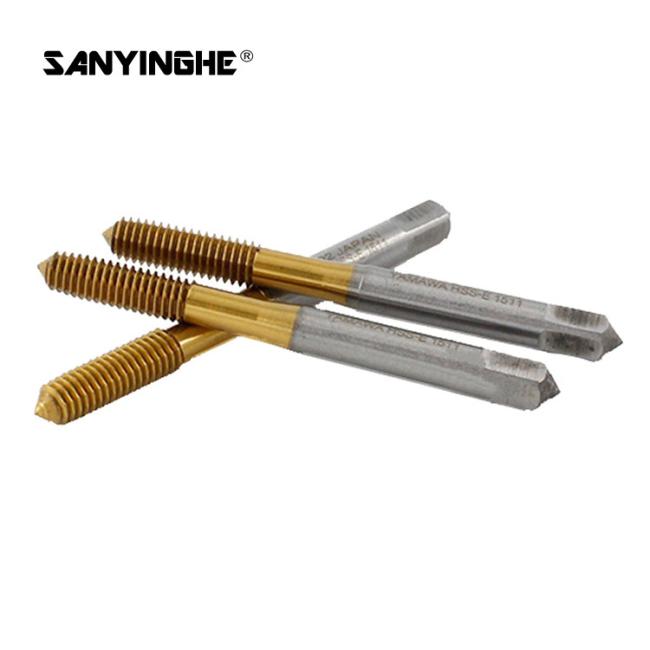

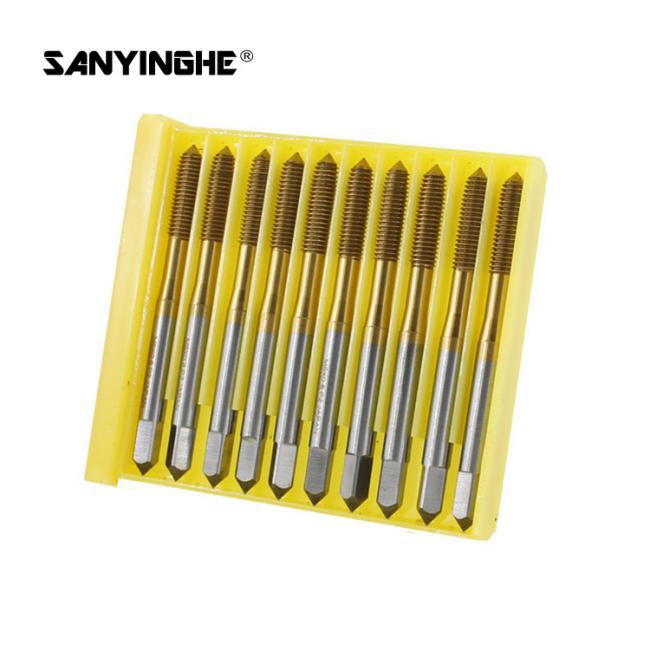

PG Spiral Thread Tapping Tool HSS Metric Pipe Tap
Forming taps straight spiral thread extrusion tap tool machine rolling tapping tool cutting tool
Description:
Material: HSS HSSE
Size: M3-M20, 1/8"-3/4"
Tapping without chips, Longer tool life
Produce stronger internal thread than cutting taps
Higher torque required to reach the tap's breaking point
High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance
Uncoated tools feature just the base substrate without any additional treatment or coatings and are suitable for a wide range of applications
Round shanks allow use with a wide variety of toolholding systems

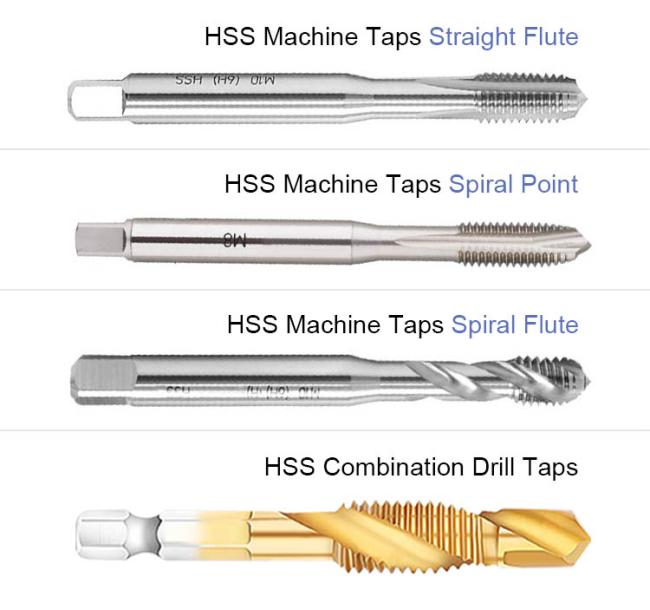

Straight flute tools allow chips to collect in the flutes as they cut and are well suited for most applications in shallow cuts
Right-hand cut tools have a cutting action that engages when they are run in a clockwise direction
Working Material, Different Kinds of Materials.
Such as: Copper alloy , Aluminum alloy with lower strength and better plasticity.
High Durability, Long life.
Used:Drilling machines, tapping machines, automatic machine tools, machining centers, CNC or milling machines etc
Model size:
|
Model
|
Thread length
|
Overall length
|
|
M2X0.4
|
12mm
|
42mm
|
|
M2.5X0.45
|
14mm
|
47mm
|
|
M3X0.5
|
15mm
|
49.5mm
|
|
M4X0.7
|
17mm
|
56mm
|
|
M5X0.8
|
19mm
|
62mm
|
|
M6X1.0
|
29mm
|
70mm
|
|
M8X1.25
|
22mm
|
71mm
|
|
M10X1.5
|
25mm
|
79mm
|
|
M12X1.75
|
28mm
|
80mm
|
|
M14X2
|
32mm
|
90mm
|
|
M16X2
|
34mm
|
95mm
|

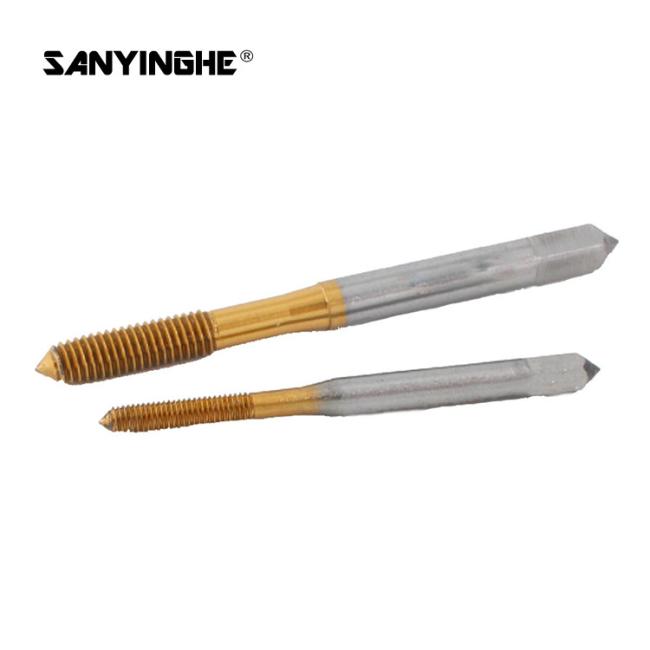

Tips: M2-M6 handle parts are pointed (pointed heads can be polished by themselves); M8 and above are flat heads
--------------------------------------------------------------------------------------------------------------------------------------
| Size | Overall Length | Thread Length |
| 4-40NC | 1-7/8 | 9/16 |
| 4-48NF | 1-7/8 | 9/16 |
| 5-40NC | 1-15/16 | 5/8 |
| 5-48NF | 1-15/16 | 5/8 |
| 6-32NC | 2 | 11/16 |
| 6-40NF | 2 | 11/16 |
| 8-32NC | 2-1/8 | 3/4 |
| 8-36NF | 2-1/8 | 3/4 |
| 10-24NC | 2-3/8 | 7/8 |
| 10-32NF | 2-3/8 | 7/8 |
| 12-24NC | 2-3/8 | 15/16 |
| 12-28NF | 2-3/8 | 15/16 |
| 1/4-20NC | 2-1/2 | 1 |
| 1/4-28NF | 2-1/2 | 1 |
| 5/16-18NC | 2-23/32 | 1-1/8 |
| 5/16-24NF | 2-23/32 | 1-1/8 |
| 3/8-16NC | 2-15/16 | 1-1/4 |
| 3/8-24NF | 2-15/16 | 1-1/4 |
| 7/16-14NC | 3-5/32 | 1-7/16 |
| 7/16-20NF | 3-5/32 | 1-7/16 |
| 1/2-13NC | 3-3/8 | 1-21/32 |
| 1/2-20NF | 3-3/8 | 1-21/32 |
| 9/16-12NC | 3-19/32 | 1-21/32 |
| 9/16-18NF | 3-19/32 | 1-21/32 |
| 5/8-11NC | 3-13/16 | 1-13/16 |
| 5/8-18NF | 3-13/16 | 1-13/16 |
| 3/4-10NC | 4-1/4 | 2 |
| 3/4-16NF | 4-1/4 | 2 |
Other Thread Size is Available, Please Contact Us to Learn More Details!
