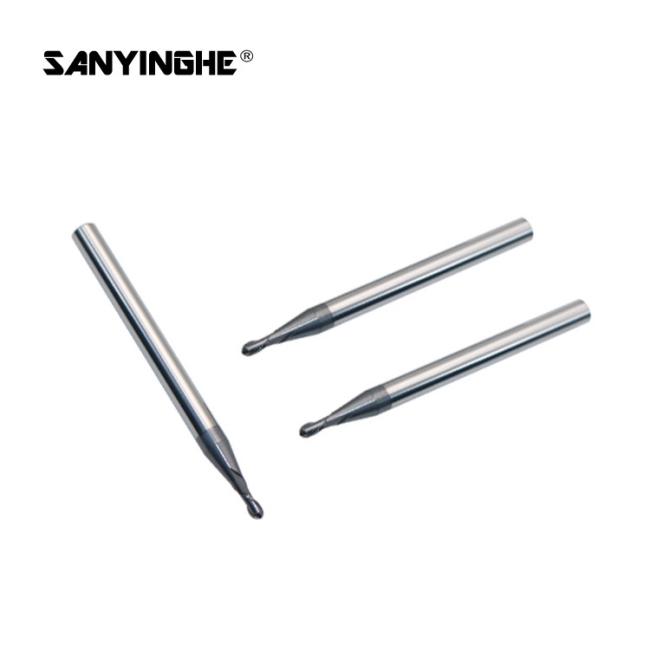

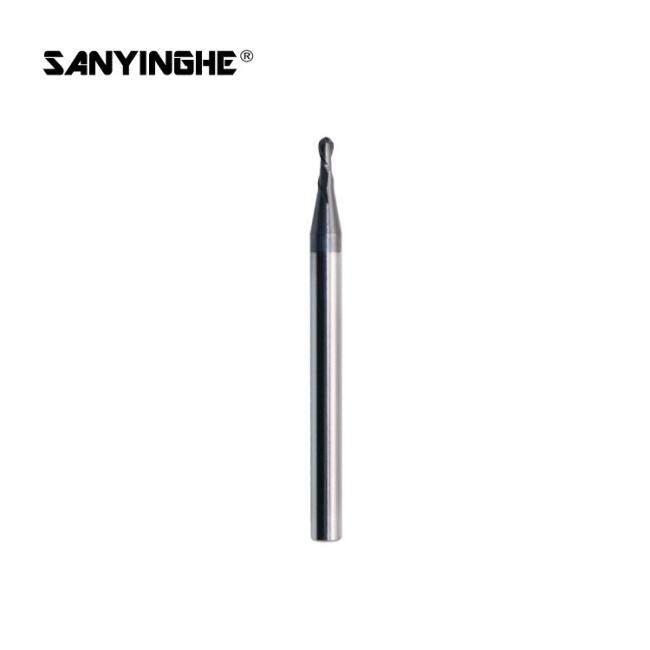

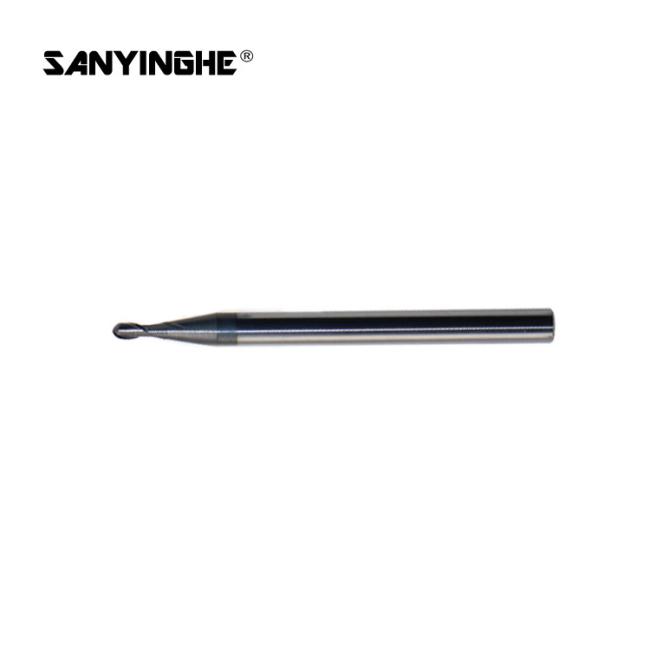

HRC65 CNC Solid Carbide End Mills 0.2mm Ballnose Square End Mills Micro Cutting Tool
HRC65 CNC Solid Carbide Milling Cutter 0.2mm Ballnose Square End Mills Micro Cutting Tool For High Hardened Materials
PRODUCT DESCRIPTION
1. Full-cut cutting edge design permits a faster and smoother cutting action and the end mills are sized to provide a good cutting range while affording
adequate rigidity.
2. Large core diameter makes end mill more sharp and wearable.
3. Large chipping spacethe cutting can be discharged in time and can be processed efficiently.
4. Chamfer,The smooth shank has excellent chamfering, which is convenient for installation, it saves the time of changing the tool.
|
Product Name |
Carbide End Mills |
| Material | Carbide |
| Application | Milling on CNC Machine |
| Process Material | Carbon steel,Alloysteel,Stainless steel,Cast iron,Aluminium alloy,Copper alloy,plastic and woods etc. |
| Processing Objects | Carbon Steel |
| Features | Durable,high efficiency and low price. |
| HRC | HRC45 | HRC55 | HRC60 | HRC65 |
| Grain of Powder(UM) | 0.7um | 0.6um | 0.5um | 0.5um |
| CO(cobalt powder)(%) | 10% | 10% | 12% | 12% |
| COATING | AlTiN | AlTiN | AlTiN | AlTiN |
| MATERIAL | TUNGSTEN CARBIDE | TUNGSTEN CARBIDE | TUNGSTEN CARBIDE | TUNGSTEN CARBIDE |
| TOLERANCE | -0.005--0.01mm | -0.005--0.01mm | -0.005--0.01mm | -0.005--0.01mm |
| HELIX ANGLE | 35° | 35° | 35° | 35° |
Wide Application:
HRC45 is suitable for Copper, Alloy Copper, Iron, Cast Iron, Carbon Steel, Alloy Steel, Common Steel under hardness HRC45.
HRC55 is suitable for Copper, Copper Alloy, Iron, Cast Iron,Carbon Steel,Mould Steel, Alloy Steels, , Stainless Steel, Common Steel under hardness HRC55
HRC60 is suitable for Copper, Copper Alloy, Iron, Cast Iron,Carbon Steel,Mould Steel, Alloy Steels, , Stainless Steel, Common Steel under hardness HRC60
HRC65 suitable for Hardened steel; Mold steel; Die steel; Alloy steel above HRC60
FAQ
1. Who are we?
Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.
2. How can we guarantee quality?
We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.
3. What can you buy from us?
We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.
4. How is the packing?
All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.
5. What is your terms of payment?
Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
