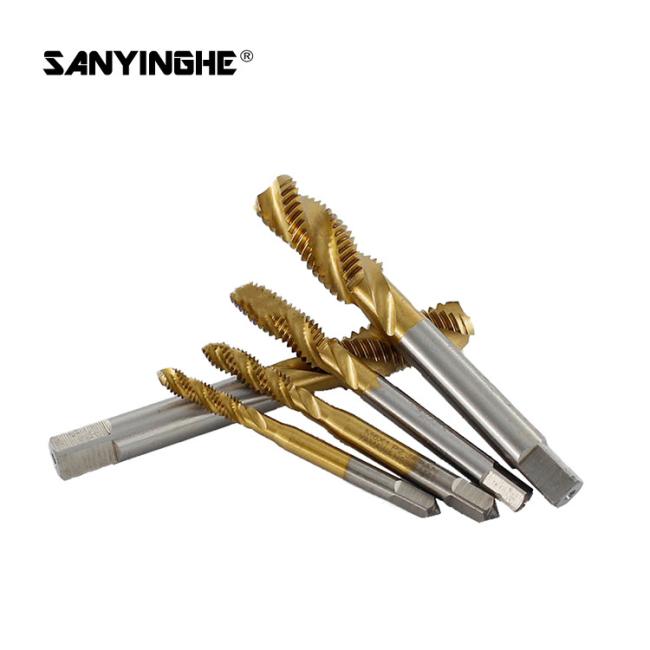

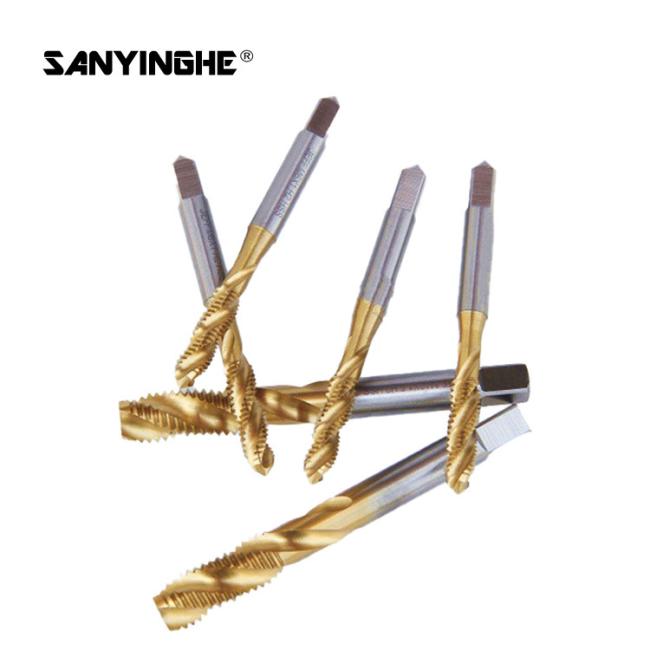

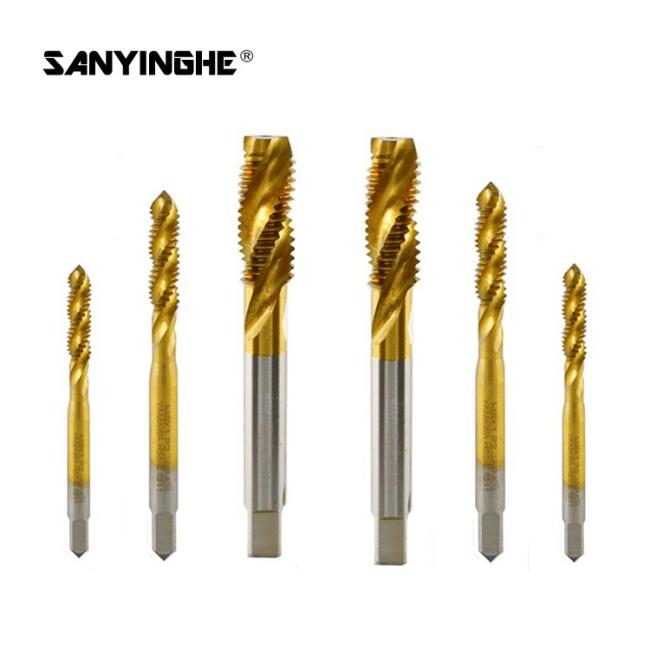

HSS Spiral Thread Tapping Tool Cutting Screw Threading Tap And Die Set

Price Negotiable
Price: Negotiation
MOQ: 1PCS
Delivery Time: 5-30 Workdays
Brand: Sanyinghe
Product Description

HSS spiral thread machine taps cutting straight spiral flute screw tapping tool screw threading tap and die set



Description:



Size
M2 To M52
1/16BSW To 3/8-20BSF
NO.1-64UNC To 3/8-16UNC
NO.1-72UNF To 3/8-24 UNF.etc
Measuring
Metric and Inch
Thread forms
BSF/BSW/UNF/UNC/MM/BA/BSP/BSPT/ACME
Surface finishing
Bright finishing;Tin-coated; or customization
Application
Internal Thread Cutting
Special Design
Spiral point tap pushes chips
ahead of tool to reduce clogging
Working Material
Hardened Steel, stainless steel,
carbon Steel,general steel, iron,
aluminum, copper and other metal steel
Working Machine
Lathe, Radial Drilling Machine,
Bench Drill Machine, Pillar Drill Machine,
Vertical Milling Machine
Manufacturing process
Cut Thread, Ground And Fully Ground



Working Material, Different Kinds of Materials.

Such as: Copper alloy , Aluminum alloy with lower strength and better plasticity.

High Durability, Long life.

Used:Drilling machines, tapping machines, automatic machine tools, machining centers, CNC or milling machines etc



Product name HSS Screw Thread Tap
Size M2-M30 Or Customize
Type Screw Thread Tap
Application spiral flute for the blind hole, spiral pointed tap for the through hole
Working machine Lathe, Radial Drilling machine, Bench Drill Machine, Pillar Drill machine, Vertical Milling machine



Working Material:

HSS M2 works on SteelAlloy steel, Carbon steel, Cast iron, Cooper, Aluminum, etc.

HSS M35 works on Stainless steel, High temperature Alloy Steel, Titanium Alloy, High Strength Steel, Carbon Fiber Composite material and so on.



Item
Pitch
Total Length
Threading Length
Shank Diameter
M2
0.4
44
8.5
3
M2.5
0.45
48.5
10
3
M3
0.5
48.5
11.5
4
M4
0.7
55
13.5
5
M5
0.8
63
17
5.5
M6
1
65
20
6
M8
1.25
70
23
6.1
M10
1.5
75
35
7
M12
1.75
82
30.5
8.5
M14
2
88
31
10.5
M16
2
95
32
12.5

Other Thread Size is Available, Please Contact Us to Learn More Details!
