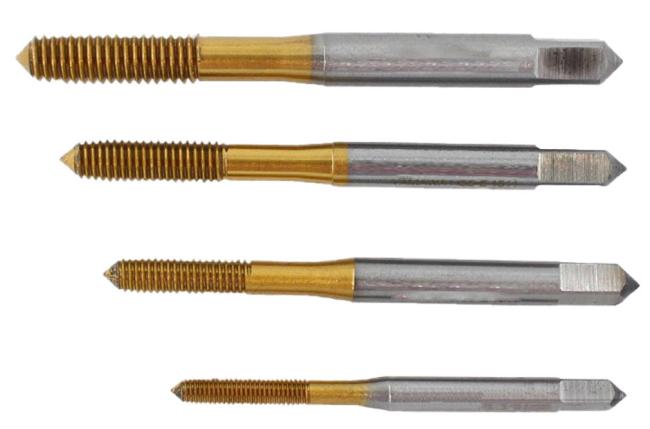

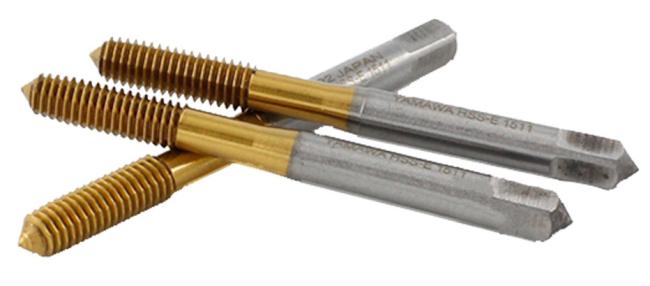

Cobalt-Containing Extrusion Taps Stainless Steel M1-M12 For Titanium-Plated Extrusion Tap Machines
Cobalt-Containing Extrusion Taps Stainless Steel M1-M12 For Titanium-Plated Extrusion Tap Machines
Product Description:
1. Titanium-plated extrusion tap, for coated steel, high-speed steel containing cobalt, more cost-effective, and better material toughness.
2. Sharp and durable: suitable for the processing of steel and non-ferrous metals and stainless steel, with high efficiency, long life and fast tapping.
3. No chips and no residues: Using the principle of plastic deformation of metal, chip-free cutting is suitable for processing materials with low hardness and strong plasticity.
4. The new cutting edge is precise and free of burrs, and the finish is greatly improved.
Specifications:
| Material | High Speed Steel |
| Packing | 1ps/ Plastic Box |
| Suitable | steel/iron/stainless steel |
Note:
These sizes we have in stock, and the other sizes,we can produce for you based on your requirements. Any need, please free comments.
| Specification | Thread length(mm) | Full length(mm) | Shank diameter(mm) | Bottom hole diameter |
| M1*0.25 | 4 | 32 | 3 | 0.89-0.92 |
| M1.2*0.25 | 4 | 34 | 3 | 1.11-1.09 |
| M1.4*0.3 | 5 | 36 | 3 | 1.26-1.3 |
| M1.6*0.35 | 6.5 | 37 | 3 | 1.43-1.47 |
| M1.8*0.35 | 6.5 | 37 | 3 | 1.62-1.67 |
| M2*0.4 | 11 | 40 | 3 | 1.79-1.84 |
| M2.3*0.4 | 11 | 42 | 3 | 2.09-2.14 |
| M2.5*0.45 | 15 | 44 | 3 | 2.27-2.34 |
| M2.6*0.45 | 15 | 44 | 3 | 2.37-2.44 |
| M3*0.5 | 18 | 46 | 4 | 2.75-2.82 |
| M3.5*0.6 | 18 | 48 | 4 | 3.19-3.27 |
| M4*0.7 | 20 | 52 | 5 | 3.65-3.72 |
| M5*0.8 | 22 | 60 | 5.5 | 4.59-4.67 |
| M6*1 | 24 | 62 | 6 | 5.49-5.59 |
| M8*1.25 | 18 | 70 | 6.2 | 7.36-7.49 |
| M10*1.5 | 20 | 75 | 7 | 9.22-9.34 |
| M12*1.75 | 25 | 82 | 8.5 | 11.09-11.23 |
FAQ
1. Who are we?
Sanyinghe is professional cutting tool supplier founded in 2014. Sanyinghe has a excellent teams in designing and manufacturing. Welcome to contact with us, we can meet all your requirement.
2. How can we guarantee quality?
We own optimized design concept advanced testing equipment and strict production process, so we can guarantee quality steadily.
3. What can you buy from us?
We can provide you tungsten carbide end mills, tungsten carbide indexable inserts, cermet (metal ceramic) indexable inserts, tungsten carbide or HSS drills, and milling cutter head, milling cutter arbor, cnc tool holder,and so on.
4. How is the packing?
All the packing will meet the strict export packing requirement, we surely understand how important the beautiful and firm packaging to the goods.
5. What is your terms of payment?
Generally by T/T, Paypal, Western Union. We support EXW, FOB, FCA, CFR, CIF, and DDP Terms.
