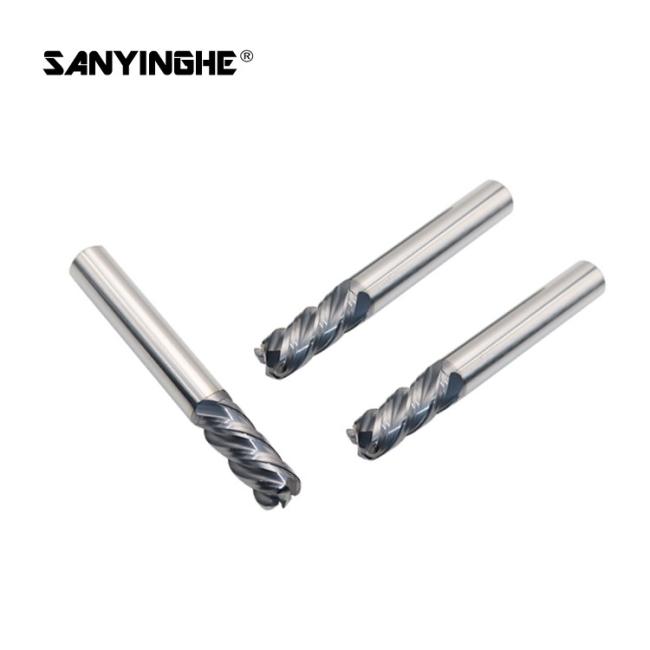

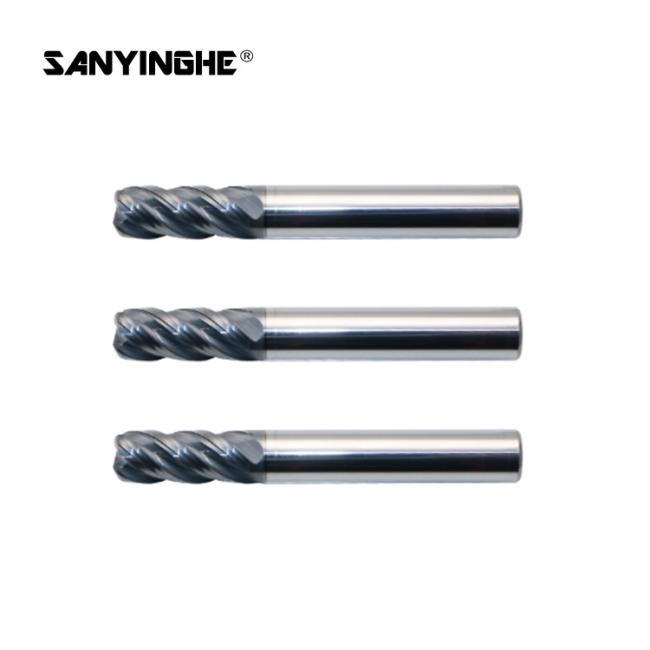

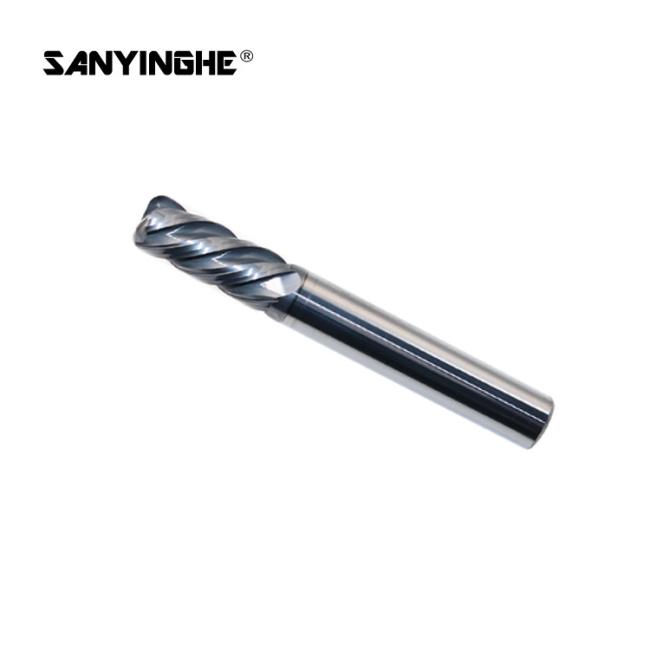

1~20mm Carbide Corner Radius End Mill CNC Tungsten Milling Cutter
1~20mm End Mills Tungsten Carbide Corner Radius Milling Cutter CNC Machine Cutting Milling Cutters
PRODUCT DESCRIPTION
1.Hardness:HRC45/50/55/60/65
2.Flutes:2 flutes or 4 flutes
3.Helix Angle: 35 degree
4.Centered Cutting: Yes
5.Type: Square End Mill / Flat end mill / Metal cutting tool
6.Workpiece material: Steel, mould steel, low alloy, hardened steel, staninless steel, alloy steel
7.general high speed cutting for metal
8.Coating:TiAlN
9.Tool body material:Tungsten solid carbide
10.Color: Black, yellow
11.Customized requirements.
| Flutes No. | 2/3/4 Flutes |
| Material | HSS,Carbide etc. |
| Coating | AlTiN,NACO BLUE/NACO BLACK/TiN etc. |
| Helix Angle | 35°,45° |
| Hardness | HRC45/55/58/65 |
| Size | Overal Length:50-150mm |
| Customized | Accept |
| Smooth Finish | Highly Polished |
| Feature | Excellent chip evacuation |
| Measurement | Metric |
Unit:mm
| specification | cutting | shank diamete | flute length | overall |
| D2.0*6*D4*75L | 2.0 | 4 | 6 | 75 |
| D4.0*11*D4*75L | 4.0 | 4 | 11 | 75 |
| D6.0*15*D6*75L | 6.0 | 6 | 15 | 75 |
| D8.0*20*D8*75L | 8.0 | 8 | 20 | 75 |
| D4.0*8*D6*100L | 4.0 | 6 | 8 | 100 |
| D6.0*15*D6*100L | 6.0 | 6 | 15 | 100 |
| D8.0*20*D8*100L | 8.0 | 8 | 20 | 100 |
| D10.0*25*D10*100L | 10.0 | 10 | 25 | 100 |
| D12.0*30*D12*100L | 12.0 | 12 | 30 | 100 |
| D16.0*40*D16*100L | 16.0 | 16 | 40 | 150 |
| HRC45 | HRC55 | HRC60 | HRC65 |
| YG10X | YG10.2 &WF25(Taiwan) | K44 & K40 (German) | H10F (Sweden) |
| Grain Size:0.7um Co:10 % Flexural strength:3320N/mm2 |
Grain Size:0.6um Co:10 % Flexural strength:4000N/mm2 |
Grain Size:0.5um Co:12 % Flexural strength:4300N/mm2 |
Grain Size:0.5um Co:10 % Flexural strength:4300N/mm2 |
