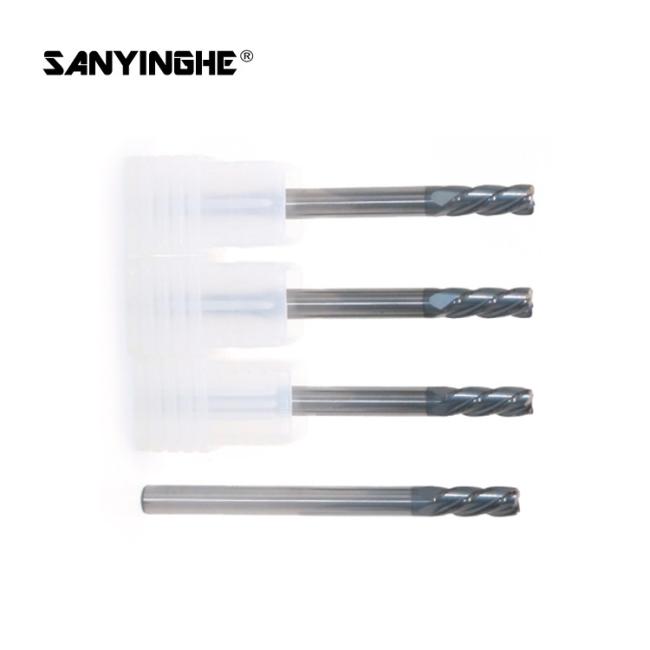

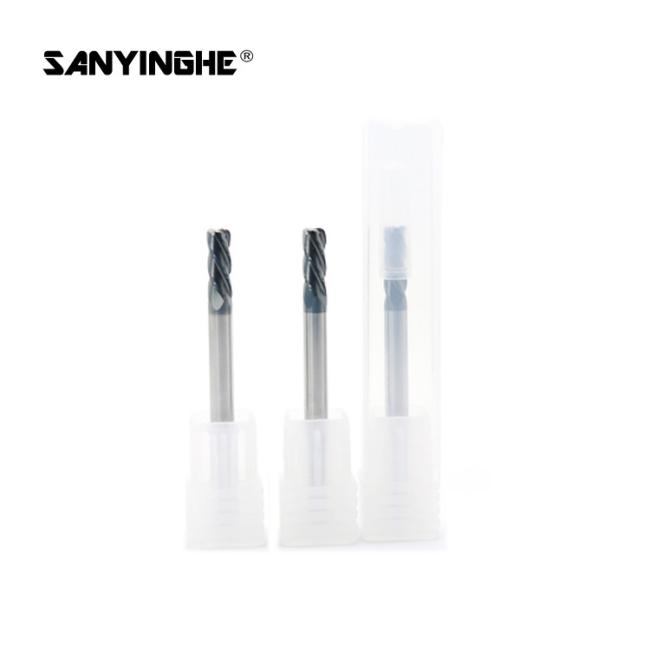

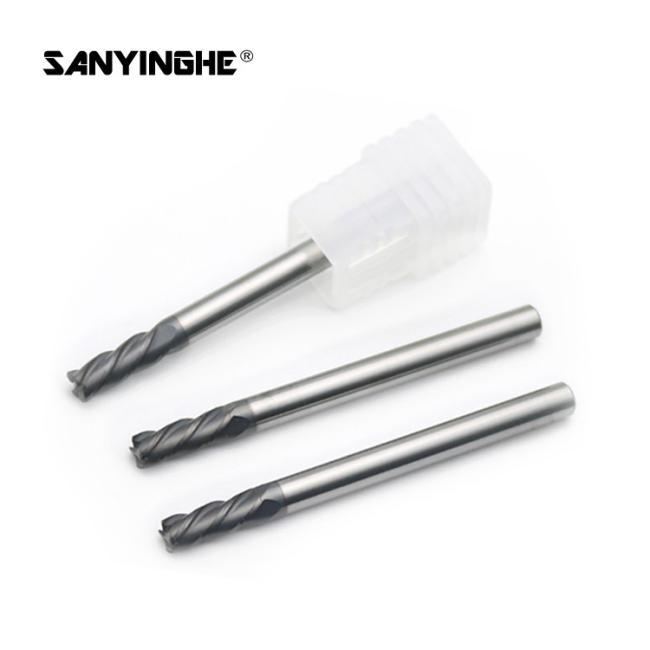

3mm 4mm Carbide Corner Radius End Mill High Speed Cutting Tool
Corner Radius End Mill 3mm 4mm Ball Nose Tungsten Carbide Milling Cutter High Speed Cutting Tool
PRODUCT DESCRIPTION
- HRC45 is suitable for Copper, Alloy Copper, Iron, Cast Iron, Carbon Steel, Alloy Steel, Common Steel under hardness HRC45.
- HRC55 is suitable for Copper, Copper Alloy, Iron, Cast Iron,Carbon Steel,Mould Steel, Alloy Steels, , Stainless Steel, Common Steel under hardness HRC55
- HRC60 is suitable for Copper, Copper Alloy, Iron, Cast Iron,Carbon Steel,Mould Steel, Alloy Steels, , Stainless Steel, Common Steel under hardness HRC60
- HRC65 suitable for Hardened steel; Mold steel; Die steel; Alloy steel above HRC60
| Flute | 2/3/4Flutes |
| Color | Black/Bronze/Blue/Golden |
| Suitable for | face mill,CNC machining center |
| Material | Tungsten Carbide |
| Diameter | 1-20mm |
| Overall Length | 50-150mm |
|
Corner Radius End Mill
|
Specification-R0.2
|
Flute
|
|
1
|
D1R0.2*3*D4*50L
|
4
|
|
2
|
D1.5R0.2*4.5*D4*50L
|
4
|
|
3
|
D2R0.2*6*D4*50L
|
4
|
|
4
|
D2.5R0.2*7.5*D4*50L
|
4
|
|
5
|
D3R0.2*9*D4*50L
|
4
|
|
6
|
D4R0.2*12*D4*50L
|
4
|
|
7
|
D6R0.2*15*D6*50L
|
4
|
|
8
|
D8R0.2*20*D8*60L
|
4
|
|
Corner Radius End Mill
|
Specification-R0.5
|
Flute
|
|
1
|
D2R0.5*6*D4*50L
|
4
|
|
2
|
D2.5R0.5*7.5*D4*50L
|
4
|
|
3
|
D3R0.5*9*D4*50L
|
4
|
|
4
|
D3.5R0.5*10.5*D4*50L
|
4
|
|
5
|
D4R0.5*12*D4*50L
|
4
|
|
6
|
D4R0.5*14*D4*75L
|
4
|
|
7
|
D4R0.5*16*D4*100L
|
4
|
|
8
|
D5R0.5*12.5*D5*50L
|
4
|
|
9
|
D6R0.5*15*D6*50L
|
4
|
|
10
|
D6R0.5*20*D6*75L
|
4
|
|
11
|
D6R0.5*25*D6*100L
|
4
|
|
12
|
D8R0.5*20*D8*60L
|
4
|
|
13
|
D8R0.5*25*D8*75L
|
4
|
|
14
|
D8R0.5*30*D8*100L
|
4
|
|
15
|
D10R0.5*25*D10*75L
|
4
|
|
16
|
D10R0.5*30*D10*100L
|
4
|
|
17
|
D12R0.5*30*D12*75L
|
4
|
|
18
|
D12R0.5*35*D12*100L
|
4
|
|
Corner Radius End Mill
|
Specification-R1
|
Flute
|
|
1
|
D3R1*9*D4*50L
|
4
|
|
2
|
D3R1*9*D3*50L
|
4
|
|
3
|
D4R1*12*D4*50L
|
4
|
|
4
|
D4R1*14*D4*75L
|
4
|
|
5
|
D4R1*16*D4*100L
|
4
|
|
6
|
D5R1*12.5*D5*50L
|
4
|
|
7
|
D5R1*15*D5*75L
|
4
|
|
8
|
D5R1*12.5*D6*50L
|
4
|
|
9
|
D6R1*15*D6*50L
|
4
|
|
10
|
D6R1*20*D6*75L
|
4
|
|
11
|
D6R1*25*D6*100L
|
4
|
|
12
|
D8R1*20*D8*60L
|
4
|
|
13
|
D8R1*25*D8*75L
|
4
|
|
14
|
D8R1*30*D8*100L
|
4
|
|
15
|
D10R1*25*D10*75L
|
4
|
|
16
|
D10R1*30*D10*100L
|
4
|
|
17
|
D12R1*30*D12*75L
|
4
|
|
19
|
D12R1*35*D12*100L
|
4
|
|
Corner Radius End Mill
|
Specification-R2
|
Flute
|
|
1
|
D8R2*20*D8*60L
|
4
|
|
2
|
D10R2*25*D10*75L
|
4
|
|
3
|
D12R2*30*D12*75L
|
4
|
