5754 5083 6082 High Strength Alloy Aluminium Sheet Marine Grade Bending

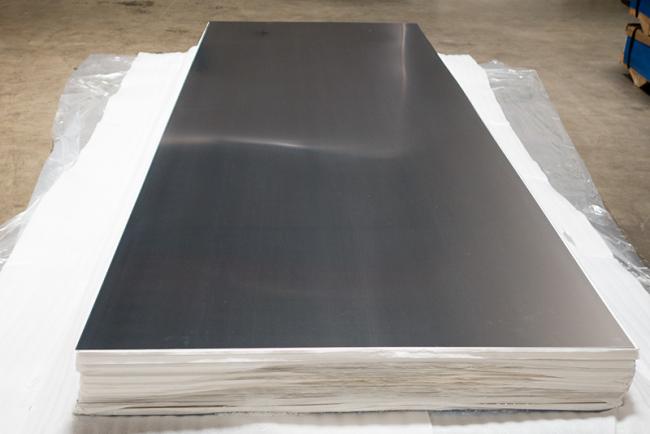

Marine Grade 5754 Aluminum Sheet High Strength Alloy Aluminum Plate For Finshing Industry
Product Description:
Aluminum 5754 is an aluminum alloy with magnesium as the primary alloying element, supplemented with small chromium and/or manganese additions. It has good formability when in the fully soft, annealed temper and can be work-hardened to fairy high strength levels. It is slightly stronger, but less ductile, than 5052 alloy. It is used in a multitude of engineering and automotive applications.
5754 aluminum shows great drawing characteristics and maintains high strength. It can be easily welded and anodized for great surface finishing. Because it is easy to form and process, this grade works well for car doors, paneling, flooring, and other parts.
| Name | Industrial Aluminum Plate |
| Grade | 5754 |
| Temper | O, H111, H112, H32, etc |
| Thickness | 0.3-300mm |
| Standard Size |
1250*2500mm, 1220*2440mm, 1500*3000mm |
| Surface | mill, bright, polished, hair line, brush,sand blast, checkered,embossed, etching,etc |
Chemical Composition:
| Chemical Composition WT(%) | |||||||||
| Silicon | Iron | Copper | Magnesium | Manganese | Chromium | Zinc | Titanium | Others | Aluminum |
| 0.4 | 0.4 | 0.12.6 | 2.6-3.6 | 0.5 | 0.3 | 0.2 | 0.15 | 0.15 | Balance |
Mechanical Properties:
| Typical Mechanical Properties | ||||
| Temper |
Thickness (mm) |
Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation (%) |
| O/H111 | ＞0.20~0.50 | 129~240 | ≥80 | ≥12 |
| ＞0.50~1.50 | ≥14 | |||
| ＞1.50~3.00 | ≥16 | |||
| ＞3.00~6.00 | ≥18 | |||
| ＞6.00~12.50 | ≥18 | |||
| ＞12.50~100.00 | ≥17 | |||
Product Details:
Application:
Certification:
Packaging & Shipping:
FAQ:
Q1: ARE YOU FACTORY OR TRADER?
A1: Sylaith Special Steel is a cold rolling manufacturer of magnetic stainless steel coil since 2009. We've gained our Export Right and become an integrated company of industry and trade in order to satisfy buyer's multi-request on different material and products.
Q2: HOW TO GET A SAMPLE?
A2: FREE samples are available for your checking and testing. And to get free samples, you need to send us you detailed receiving address (including post code) and your DHL/FedEx/UPS account for collecting samples, courier cost will be paid in your side.
Q3: HOW TO VISIT YOUR FACTORY?
A3: Most of the main cities have flights to Shanghai; you can take flight to Shanghai Putong/Hongqiao International Airport.
If you come from Hongkong, it will take 2 hours by flight (every day 5 flight around noon time).
